BD-24 HDMI2.1 Metal Single Male Plug+L=1M 8K_60Hz HDMI2.1 Male Plug+Standard Model Cable

Red Dot Design Award

Product Size

Pin

IP Rating

Rated Current

Rated Voltage

Product Series

Wiring Type

Interface Type

Mating Cycles

Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Specifications

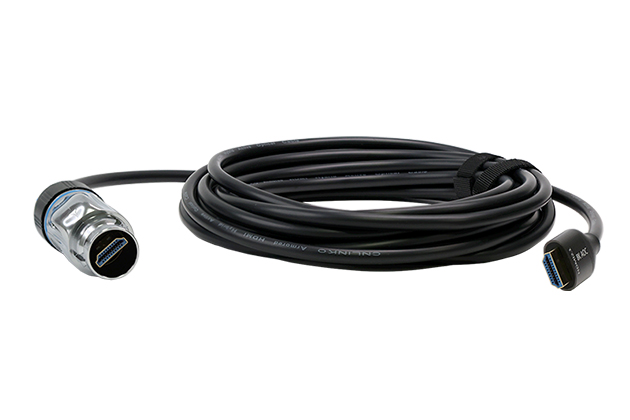

BD24-HDMI-MP-MP-5M-003
Part Number:BD24-HDMI-MP-MP-5M-003 Copy
BD24-HDMI-MP-MP-1M-005
Part Number:BD24-HDMI-MP-MP-1M-005 Copy

HDMI2.1 Metal Single Male Plug+L=5M 8K_60Hz HDMI2.1 Male Plug+Standard Model Cable

HDMI2.1 Metal Single Male Plug+L=1M 8K_60Hz HDMI2.1 Male Plug+Standard Model Cable

2-爆炸图 2-爆炸图

Perfect combination of precision components, uniquely crafted into a seamless whole

Product Advantage

3-优势图 3-优势图
Dozens of high-quality components precisely interlocked, integrated into a unified whole
4-特点图

Self-invented patented snap-locking design

Features a snap-lock three-point locking design for rapid plug and unplug, enabling highly efficient and quick operation

5-特点图

Recessed snap-lock design reduces external equipment footprint

Recessed socket snap-lock design, minimizing the distance between the panel and protruding products, contributes to saving external space on user devices

6-特点图

Protection performance upgrade, up to IP68

Waterproof performance newly upgraded to IP68, fearless of all kinds of water environments

7-特点图

Ergonomic design fusing art with technology

Ergonomically designed streamlined fastback structure, fusing art with technology to enhance the technological and artistic appeal of the device

Family series

8-家族图

Product Dimension

BD24-dimension-en

Product Parameter

Model: BD-24 Pin: Other
IP Rating:
IP68 / IPX9K
Rated Current: 1.5A
Rated Voltage: 5V AC Transmission Rate:
5.0Gb/S
Contact Resistance Max: / Insulation Resistance Min:
/
Contacts: / Durability:
≥500 times
Wire Spec Max:
28AWG
Wire range: φ 5-φ7mm
Wiring method: Soldering Maximum temperature rise:
1.Temperature rise below 30K at 5A
Work Temperature: -40°C~+85°C

Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
