Outdoor Energy Storage Device Connectivity Solutions

Many connection application modules are available and can be customized, own patents or customized solutions.

LP20-3 Pin Airtightness
Power connection solution

‌Advantages of CNLINKO Connectors

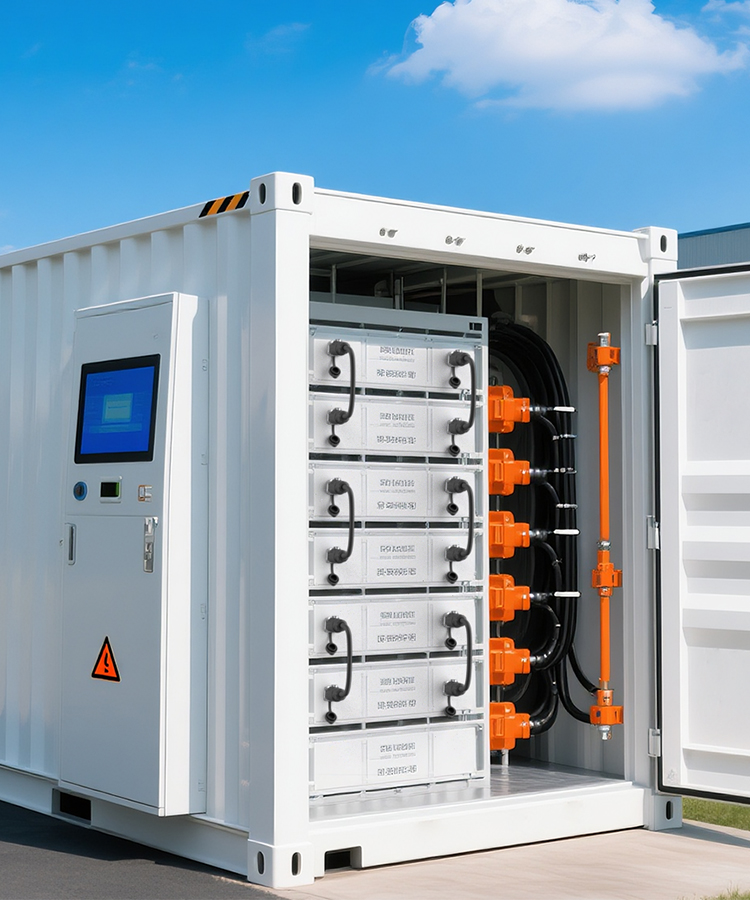

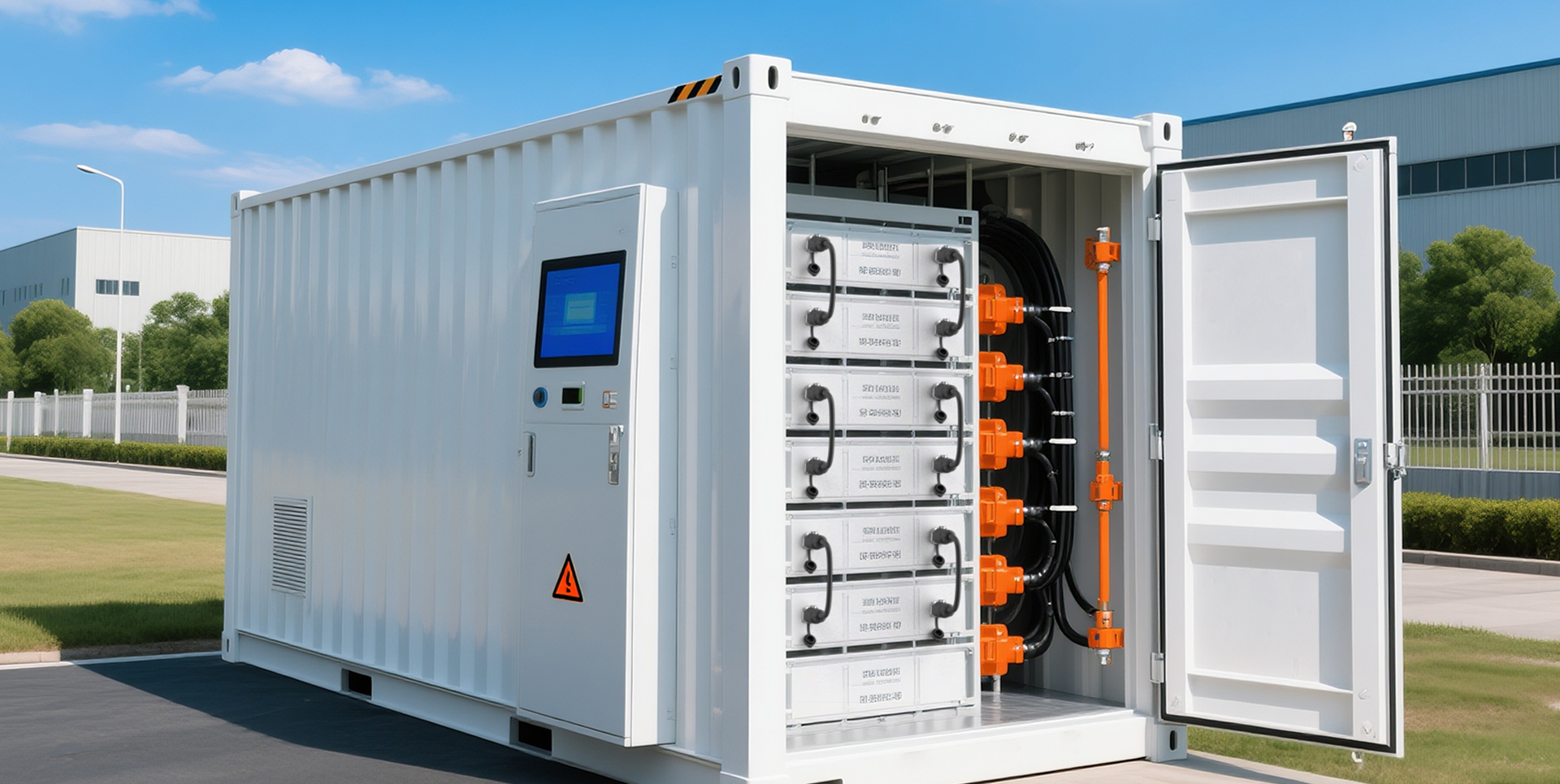

Tailored for fixed outdoor energy storage scenarios including industrial and commercial energy storage power stations, large energy storage containers, and grid-side energy storage systems, CNLINKO Outdoor Energy Storage Equipment Connection Solution provides highly reliable, fully protected and high-efficiency connection products.

Equipped with dual high-level IP68/IPX9K waterproof performance, the solution effectively copes with harsh outdoor conditions such as heavy rain erosion, high-pressure water washing and humid weather. It thoroughly blocks liquid penetration and eliminates potential risks of internal condensation and water ingress.

The connector housing is made of F1-grade UV-resistant outdoor engineering plastic or alloy materials, with a salt spray resistance test duration of no less than 72 hours. It withstands long-term outdoor sun exposure, coastal salt fog and corrosive environments, ensuring the safe and stable long-term outdoor operation of fixed energy storage equipment.

To meet the demands of high-power charge-discharge and long-term continuous operation of energy storage systems, the connectors support stable high-current transmission and are applicable to key nodes such as PCS converters and battery cluster combiner cabinets. Copper alloy contacts adopt gold or silver plating technology to achieve lower contact resistance, higher conductivity and minimal temperature variation. This ensures safe overheating-free operation during high-current and long-duration charge-discharge cycles, extending the service life of the entire system.

Multiple connection options are available, including snap-fit straight-plug and dual-locking structures. The snap-fit straight-plug design enables one-handed quick plugging and unplugging, facilitating on-site installation and subsequent maintenance. The dual-locking structure maintains stable connection against strong winds and slight vibrations to prevent accidental disconnection. High-current connectors of 50A and above are equipped with anti-touch structures, which effectively avoid accidental contact with live terminals during operation.

Covering a full range of current specifications, the solution meets the diverse connection requirements of outdoor energy storage equipment with different power levels.

Backed by independent R&D, manufacturing and quality control capabilities, CNLINKO provides full-process customized services from product selection and technical support to mass delivery, delivering safe, reliable and long-term stable connection solutions for fixed outdoor energy storage equipment.

Connector Features for Outdoor Energy Storage Applications

Temperature Resistance Up to 120℃, Excellent Performance in Harsh Environments

Newly designed in accordance with strict industrial-grade standards, it can face various harsh working environments with performance exceeding your imagination

Waterproof, It Has to Be All-Round , Single side also IP68/IPX9K

Through the design of end face + side double waterproof and module-centered waterproof sealing gasket, the connector meets IP68/IPX9K waterproof test requirements in both mated and unmated single-side states

One-Hand Plugging and Unplugging, Plug and Play

Snap-in direct plug connection and locking design, one hand can complete the disconnection and connection of the connector, which is fast and simple

From SABIC Plastics to Safeguard Application Safety

Using SABIC brand plastics, which have better performance than ordinary plastics, superior flame retardancy, and more reassuring to use

CNLINKO Recommended Solutions

Related Products for Portable Energy Storage

LP-20-3 Pin Industrial Circular Waterproof Aviation Plug Power Connector

LP-20-3 Pin 90° Industrial Circular Waterproof Aviation Plug Signal Connector

Product Reliability

Power Transmission

Low-resistance, low-temperature-rise transmission ensures stable system operation.

Ingress Protection

IP68/IPX9K protection prevents water and dust ingress.

Environmental Durability

Resistance to extreme temperatures, UV exposure, and corrosion supports long-term outdoor operation.

Secure Locking

A robust locking mechanism withstands cable pull and reduces the risk of accidental disconnection.

CNLINKO vs. Conventional Solutions

Aspect	CNLINKO Solution (Recommended)	Standard Market Solution
Waterproof Performance	Featuring dual high-grade IP68/IPX9K waterproof protection, it withstands continuous water immersion and high-temperature high-pressure water jetting. It copes well with heavy rain scouring, high-pressure washing and humid environments to ensure safe long-term outdoor operation.	With a low protection rating, it is vulnerable to rain and moisture intrusion during long-term outdoor operation, posing potential risks of short circuit and corrosion.
Installation & Maintenance	Multiple connection options including quick-lock straight-plug, threaded bayonet and dual-locking structures support fast installation and highly stable connection.	Tool-assisted installation is required with cumbersome operation. Disassembly for later maintenance is inconvenient, raising construction and O&M costs.
Charging Safety	Copper alloy contacts with gold or silver plating achieve contact resistance as low as 1.0 mΩ and minor temperature rise. They support high-current charge-discharge cycles over extended periods without overheating for safe operation.	Contact materials and plating processes are inconsistent, resulting in high contact resistance and notable temperature rise under high-current operation. Performance degradation and overheating risks may occur during long-term operation.
Technical Support	Full-range connectivity covering power, signal and data circuits. We provide end-to-end customization services from product selection guidance to mass delivery, compatible with energy storage systems of various power ratings.	Limited product portfolio, lacking professional selection guidance and customization services, making it difficult to meet differentiated project requirements.
