The advanced assisted driving features in smart cars are already impressive. In the transportation sector, intelligence is also demonstrating remarkable capabilities. Convenience and smart technology are quietly transforming our daily lives. For instance, real-time, precise traffic monitoring and road traffic flow are now clearly visible on a single screen. In fact, comprehensive intelligent transportation systems are becoming ubiquitous.
For intelligent transportation to truly "navigate the world intelligently," besides relying on integrated AI systems, various high-performance, quality hardware components are also crucial for ensuring the efficient and stable operation of these smart systems.
1. The "Radar Eye" Compensates for Weaknesses in the Perception Layer
Within the architecture of intelligent transportation systems, the "Perception Layer" acts like human eyes, identifying moving targets such as vehicles and pedestrians and converting this information into data processable by the system.
The traditional "Perception Layer" solution uses cameras, a common sensing method. However, it is susceptible to weather and nighttime conditions, leading to unstable performance. In contrast, Wide-Area Radar Microwave Detectors, often called the "Radar Eye," utilize radar technology, making them immune to weather and light variations. They enable more accurate speed and distance measurement, achieving beyond visual range perception.
2. High-Reliability Connectors: The Central Nervous System of the "Radar Eye"
Wide-Area Radar Microwave Detectors typically operate 24/7, continuously collecting precise data for every target (motor vehicles, non-motorized vehicles, pedestrians) within their coverage area. This places extremely high demands on the efficiency and reliability of signal transmission. Furthermore, the combination of roadway and outdoor environments presents a severe test for the long-term operation of the signal connectors used under complex conditions.
(Radar Microwave Detector used in traffic applications - schematic)
3. What are the Connector Requirements for Radar Microwave Detectors?
High-Level Protection Capability: The equipment is deployed outdoors, directly exposed to rain, snow, dust, salt spray, and humidity. Any ingress of moisture or fine dust will cause internal corrosion and damage.
Strong High/Low Temperature Resistance: Outdoor ambient temperatures vary extremely, with surface temperatures potentially exceeding 70°C under summer sun and dropping as low as -30°C in winter.
High-Speed Signal Transmission Capability: The collected data signals need transmission via RJ45 connectors, requiring minimal crosstalk and stable, high-speed data transfer.
Facilitates Quick Installation & Maintenance at Height: As Wide-Area Radar Microwave Detectors are often mounted overhead above roadways, connector installation is challenging. Quick and simple connection operations enhance safety.
- Application of CNLINKO Connection Solutions in Intelligent Transportation

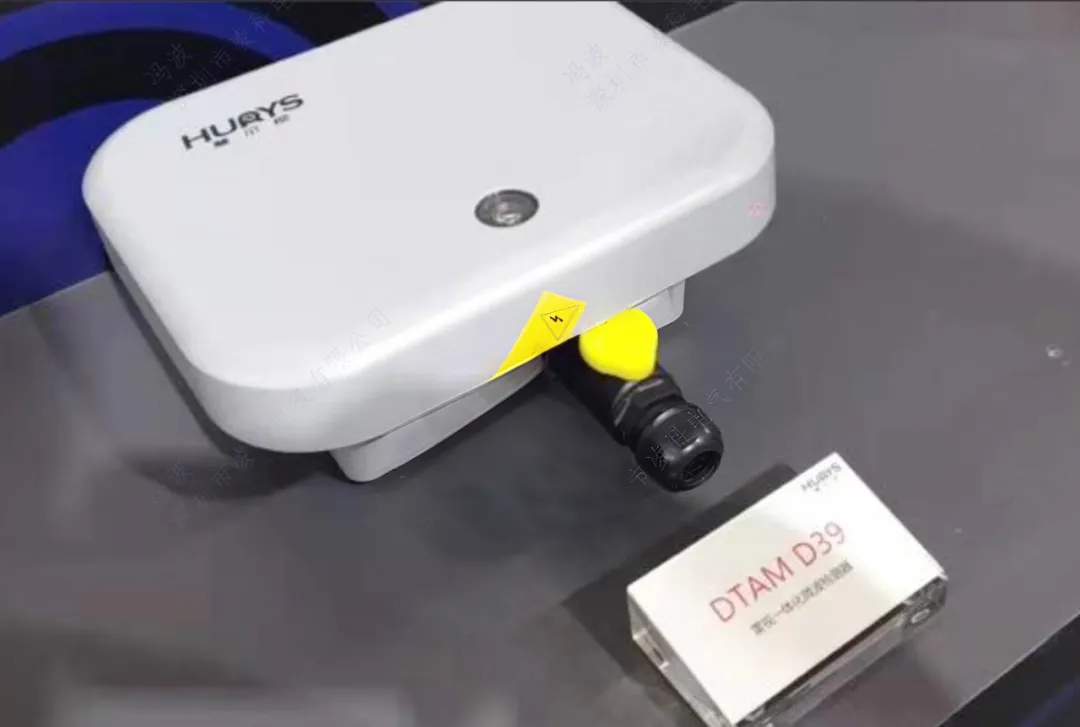

(Actual photo showing the connectors - CNLINKO products are indicated in the image)
Project: Wide-Area Radar Microwave Detector DTAM D39
Products Used: LP24 Series RJ45 Connectors
Function Description: Provides high-speed, immediate transmission connection support for the monitoring signals collected by the Wide-Area Radar Microwave Detector DTAM D39.
- Why Did the Customer Choose the CNLINKO Connection Solution?
The customer's DTAM D39 Wide-Area Radar Microwave Detector product uses radar technology to achieve speed, distance, and angle measurement for large areas and multiple targets, enabling real-time tracking and detection of traffic object trajectories. It is widely used in urban traffic signal control, digital urban intersections, and highway full-course monitoring.
(CNLINKO LP24-RJ45 connector adopted by the user)
In the system described above, the user selected the CNLINKO LP24-RJ45 connector for transmitting the collected high-speed signals, facilitating immediate generation of real-time visuals and instant analysis of traffic data and status at the backend.
Analysis of Compatibility Between CNLINKO Solution and Customer Equipment
01. IP68/IPX9K Protection Rating
Wide-Area Radar Microwave Detectors are deployed above roads, facing environmental challenges like outdoor heavy rain, road dust, and exhaust fumes.
The aforementioned CNLINKO LP24-RJ45 connector utilizes patented waterproof technology, achieving IP68/IPX9K protection when interconnected, providing reliable on-site protection against water and dust.
02. Temperature Resistance: -40°C to +120°C
The equipment is significantly affected by climate. In summer, the external surface temperature can exceed 70°C, severely testing the connector's temperature tolerance.
This CNLINKO connector possesses strong high/low-temperature resistance, with a range of -40°C to +120°C, allowing it to fully adapt to any outdoor high-temperature challenge and function effectively even in most severely cold regions.
03. Gigabit-Level Transmission Capability
The data signals collected by the Wide-Area Radar Microwave Detector require high-speed, smooth transmission to ensure the stability and real-time performance of the entire system.
The aforementioned CNLINKO RJ45 connector uses a high-speed interface complemented by 6μ" gold-plated contacts, achieving transmission rates up to Gigabit level, ensuring fluent performance even with large-capacity data transfers.
04. Convenient Installation Features
Wide-Area Radar Microwave Detectors are typically installed overhead, making safety during installation and maintenance paramount.
The aforementioned CNLINKO RJ45 connector features a snap-fit direct plug-in connection design, allowing one-handed mating and unmating for quick installation, making it highly suitable for such elevated equipment.
CNLINKO remains committed to R&D innovation and deeply cultivating connection technology, providing high-quality, high-performance industrial connection solutions for various industries and fields, helping users solve electrical connection challenges. Please feel free to contact us if you have related requirements
