M20 Male & Female Plug IP68 Connector For LED Grow Light

Push-lock connection design, plug-and-play

Video

Product Size

M20

Pin

3 Pin

IP Rating

IP68 / IPX9K

Rated Current

20A

Rated Voltage

500V

Product Series

LP

Wiring Type

Soldering

Interface Type

Pin

Mating Cycles

≥2000 times
Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Specifications

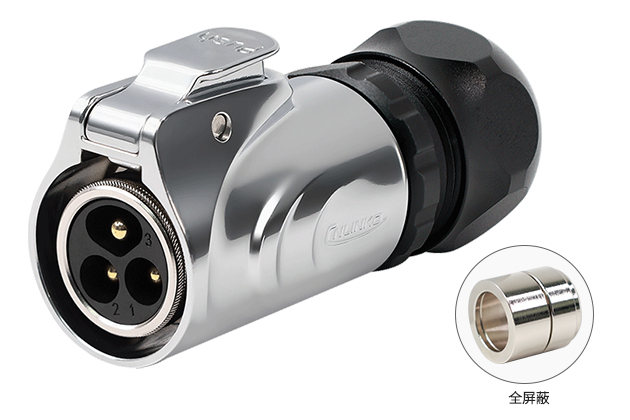

3芯公插头
Part Number:LP-20-C03PE-03-031A Copy

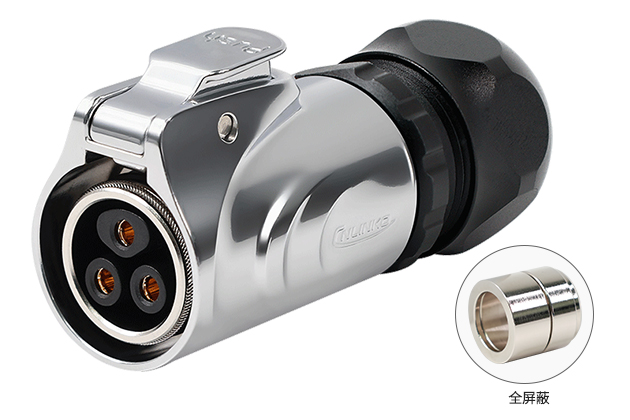

3芯母插头
Part Number:LP-20-J03PE-03-031A Copy

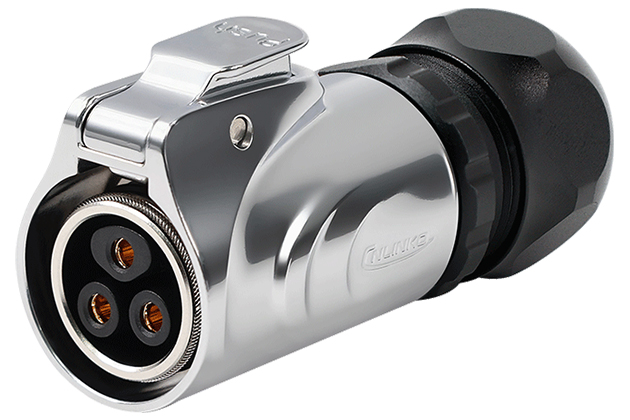

3芯母插头
Part Number:LP-20-J03PE-03-030A Copy

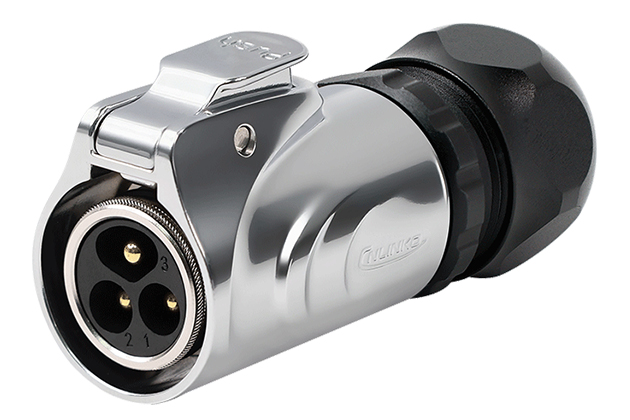

3芯公插头
Part Number:LP-20-C03PE-03-030A Copy

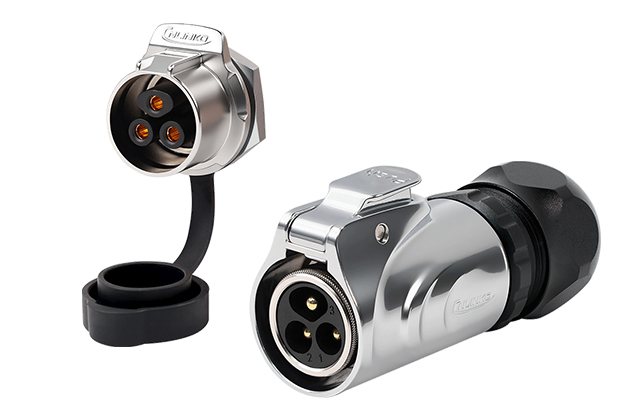

3芯单孔正装
Part Number:LP-20-J03SX-03-131A / LP-20-C03PE-03-031A Copy

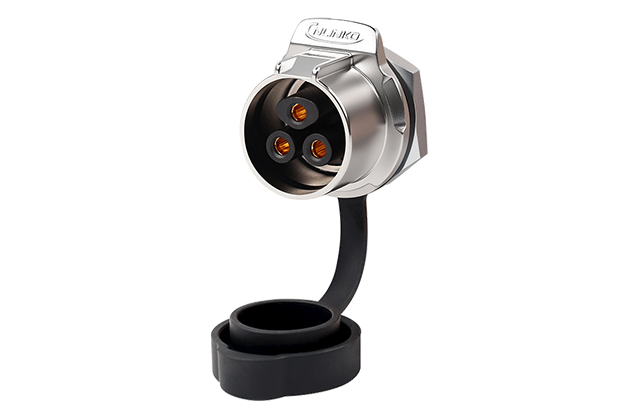

3芯单孔母插座
Part Number:LP-20-J03SX-03-131A Copy

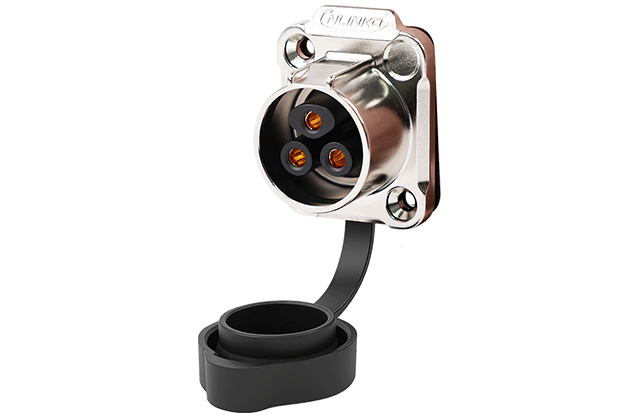

3芯两孔母插座
Part Number:LP-20-J03SX-03-231A Copy

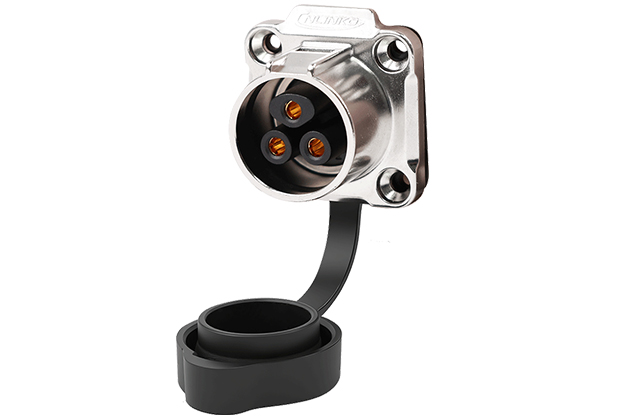

3芯四孔母插座
Part Number:LP-20-J03SX-03-431A Copy

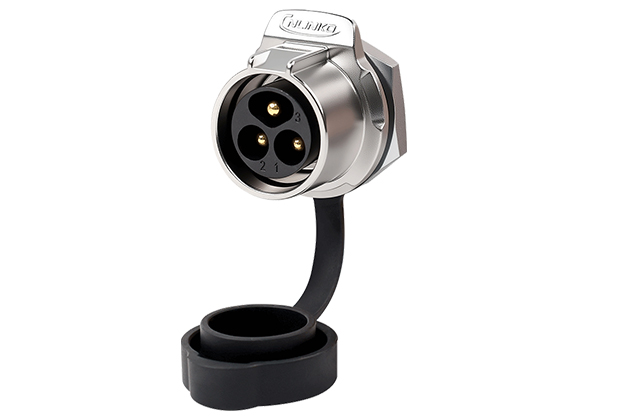

3芯单孔公插座
Part Number:LP-20-C03SX-03-131A Copy

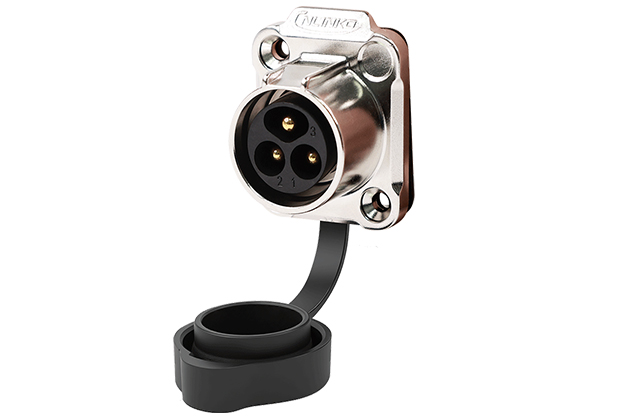

3芯两孔公插座
Part Number:LP-20-C03SX-03-231A Copy

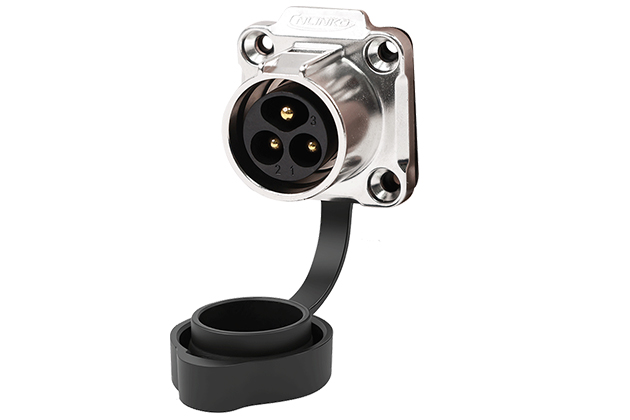

3芯四孔公插座
Part Number:LP-20-C03SX-03-431A Copy

3 Pin Male Plug With Snap Ring Shield

3 Pin Female Plug

Full Shielding Female Plug

Full Shielding Male Plug

3 Pin Formal Set With Snap Ring Shield

Single Hole Female Socket With Snap Ring Shield

3 Pin Two Holes Female Socket With Snap Ring Shield

3 Pin Four Holes Female Socket With Snap Ring Shield

3 Pin Single Hole Male Socket

3 Pin Two Holes Male Socket

3 Pin Four Holes Male Socket

02-爆炸图 02-爆炸图

Reliable contact resistance design,
and optimized mating force design significantly enhance data transmission speed

Product Advantage

03-产品优势 03-产品优势
Plug-and-play | Quick and convenient | IP68 waterproof performance | Cold and heat resistant | High-efficiency transmission

IP68/IPX9K Protection Rating, Waterproofing at Its Peak

The product boasts an IP68 IP Rating, delivering advanced waterproofing performance and robust protection for harsh, water-exposed environments.

Outstanding Performance in Harsh Environments

Gold-plated contacts | High-performance material housing | Spring snap-lock design | Industrial-grade standard manufacturing.

Snap-Lock Plug-and-Play Connection: Faster Connections

Featuring a one-touch snap-lock connection design, enabling single-handed plug-and-play operations for more efficient and rapid connections, simplifying operations.

Real Core, True Gold Plating: "Full-Speed" Electrical Transmission

Utilizing solid copper alloy pins with nickel underplating and gold plating, enhancing plug-and-play durability, corrosion resistance, and superior electrical conductivity.

Family series

08-家族图

Product Dimension

3-pin-dimension-en

Product Parameter

Model: LP-20 Pin: 3 Pin
IP Rating: IP68 / IPX9K Rated Current: 20A
Rated Voltage: 500V AC Withstand Voltage: 2000V AC
Contact Resistance Max: 1.0mΩ Insulation Resistance Min: 500MΩ
Contacts: φ2.74 Durability: ≥2000 times
Wire Spec Max: 2.5~4.0mm²/14 ~12AWG Wire range: Φ10.0-Φ12.0mm
Wiring method: Soldering Maximum temperature rise: 30k
Work Temperature: -40°C~+85°C(Metal)

Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
