LP-16-3 Pin Circular Waterproof Plug Power Cable Assembly
Push-lock connection design, plug-and-play
Video
Product Size
Pin
IP Rating
Rated Current
Rated Voltage
Product Series
Wiring Type
Interface Type
Mating Cycles

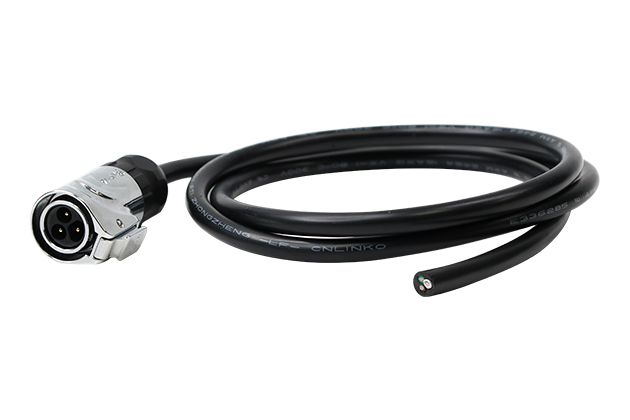

Standard Model 3 Pin L=1M Metal Male Plug+Cable With Soldering

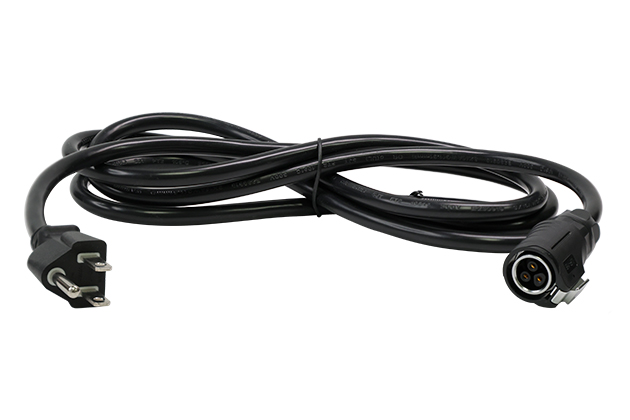

3 Pin Female Plug+European Standard 180° 16A Three-prong Plug+CT-103 L=2M Standard Model Cable

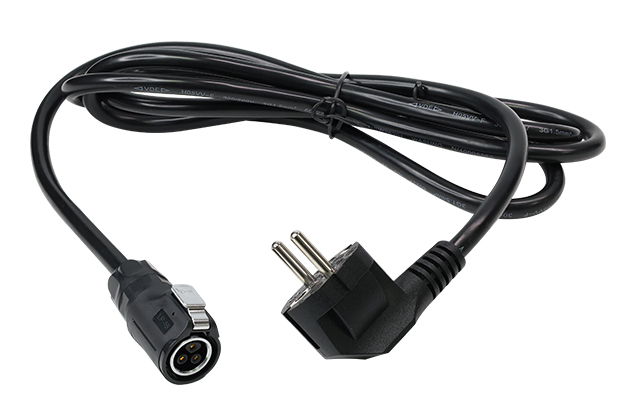

3 Pin Female Plug+European Standard 90° 16A Three-prong Plug+CT-104 L=2M Standard Model Cable

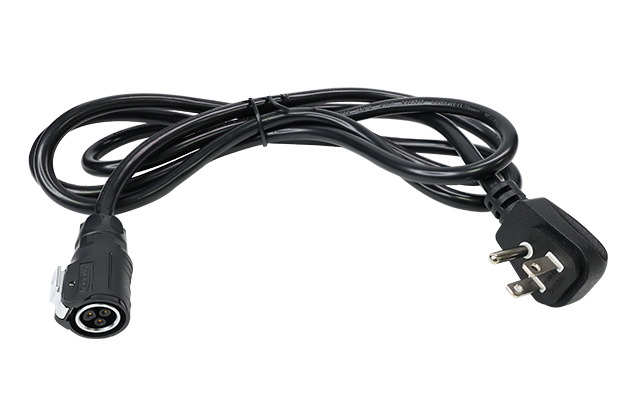

3 Pin Female Plug+European Standard 90° 13A Three-prong Plug+CT-203 L=2M Standard Model Cable
3 Pin Female Plug+European Standard 90° 13A Three-prong Plug+CT-202-2 L=2M Standard Model Cable

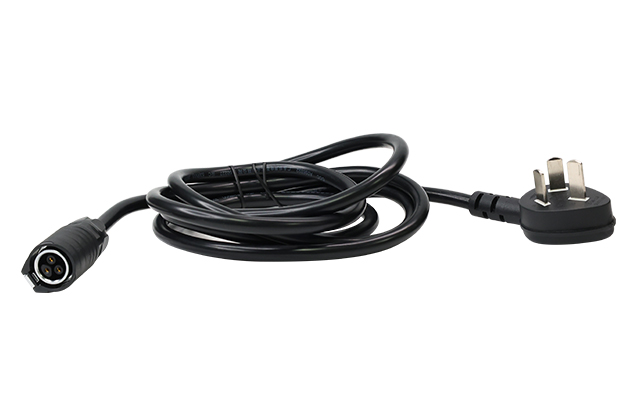

3 Pin Female Plug+European Standard 180° 13A Three-prong Plug+CT-202 L=2M Standard Model Cable

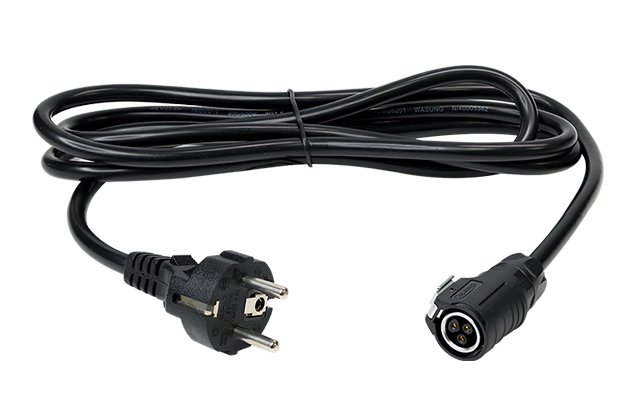

3 Pin Female Plug+European Standard 90° 16A Three-prong Plug+CT-05-2 L=2M Standard Model Cable
Reliable contact resistance design,
and optimized mating force design significantly enhance data transmission speed
LP16 Series One-Hand Quick Plug Connectors are compact industrial waterproof connectors designed for industrial equipment and outdoor applications. Adopting an M16 compact structure and one-touch snap-lock design, they enable one-handed fast mating and unmating, balancing installation efficiency and connection stability, with a mating cycle rating of over 2000 times.
Featuring dual IP68/IPX9K protection, the products effectively resist dust, moisture, water immersion and high-pressure water jets. Multiple material combinations are available, including plastic, metal, and metal+plastic hybrid options. Straight and 90° elbow configurations are offered to accommodate confined internal equipment space and side routing requirements.
The series supports power, signal and data transmission, with a variety of interfaces such as pin contacts, RJ45 and Type‑C. The Type‑C version delivers a maximum data transmission rate of 10Gbps. With a wide operating temperature range of -40°C to +120°C, the connectors are widely used in industrial automation, outdoor LED displays, laser equipment, instrumentation, security monitoring and other fields.
This series holds 8 design patents and 16 utility model patents. It has obtained international certifications including UL, TUV, CQC and CE, and won the German iF Design Award and Red Dot Design Award.
IP68/IPX9K Protection Rating, Waterproofing at Its Peak
The product boasts an IP68 IP Rating, delivering advanced waterproofing performance and robust protection for harsh, water-exposed environments.
Outstanding Performance in Harsh Environments
Gold-plated contacts | High-performance material housing | Spring snap-lock design | Industrial-grade standard manufacturing.
Snap-Lock Plug-and-Play Connection: Faster Connections
Featuring a one-touch snap-lock connection design, enabling single-handed plug-and-play operations for more efficient and rapid connections, simplifying operations.
Real Core, True Gold Plating: "Full-Speed" Electrical Transmission
Utilizing solid copper alloy pins with nickel underplating and gold plating, enhancing plug-and-play durability, corrosion resistance, and superior electrical conductivity.
meets the requirements for frequent connection and maintenance operations
lowering the risk of loose connections
high-pressure washdown and outdoor applications
Insulation resistance ≥500MΩ
Temperature rise ≤30K at 10A
| Comparison Dimensions | Space Requirements | Installation and Maintenance | Product Portfolio | Technical Support |
|---|---|---|---|---|
CNLINKO Solution (Recommended) |
This series quick‑plug waterproof industrial connectors feature straight and 90° right‑angle options with vertical cable routing, ideal for compact installations. |
CNLINKO LP16 series quick‑plug connectors enable one‑hand operation. The snap‑in plug‑and‑play design provides firm industrial‑grade locking to prevent loosening. |
CNLINKO supplies a full range of connection products for power, signal and data applications, delivering one‑stop connectivity solutions to reduce cross‑brand procurement costs and compatibility risks. |
CNLINKO offers 7×24h technical support & non‑standard custom development, with full‑process services from product selection and solution design to delivery. |
Conventional Market Solutions |
Featuring mainly straight‑type connectors with axially‑output cables, they require substantial depth clearance and generally come with larger overall dimensions. |
It features a complex structure with cumbersome installation and removal procedures, resulting in low‑efficiency post‑sales maintenance and higher labor costs. |
Limited product portfolio forces combined procurement from multiple brands, bringing insufficient compatibility, complicated part selection and higher supply‑chain management costs. |
Long response lead time, no custom‑development capacity, hard to satisfy differentiated project demands. |
Product Parameter
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
