M12 Connectors Background
In automation and industrial equipment, stable device interconnection is critical. Yet vibrations, dust, liquids, and extreme temperatures constantly threaten connectivity. M12 connectors have emerged as the trusted industry standard by solving fundamental industrial challenges.
Why Industry Chooses M12 Connectors
01. Engineered for Harsh Industrial Environments
Industrial Challenges:
- Continuous vibration (production equipment/mobile machinery)
- Strong impacts (material handling/collisions)
- Dust (workshops/mining)
- Liquids (washdown/rain/oil)
- Wide temperature fluctuations
M12 Advantages:
✓ IP65+ protection: Superior dust/water resistance
✓ Corrosion resistance: Withstands salt spray, acids, oils
✓ Threaded locking mechanism: Exceeds vibration/shock resistance of push-pull connectors
✓ -25°C to +85°C range: Engineered materials handle thermal extremes
02. Standardized & Compact: The Space-Saving Solution
Industrial Needs:
- Mass deployment capability
- Quick installation/maintenance
- Reduced downtime costs
- Device compatibility
M12 Advantages:
✓ Global standardization (IEC 61076-2-101/104): Ensures interchangeability ✓ Modular pre-assembly: Enables field servicing in minutes
✓ Cost efficiency: High-volume production drives affordability
✓ 12mm diameter: 40% smaller than traditional industrial connectors – ideal for compact equipment

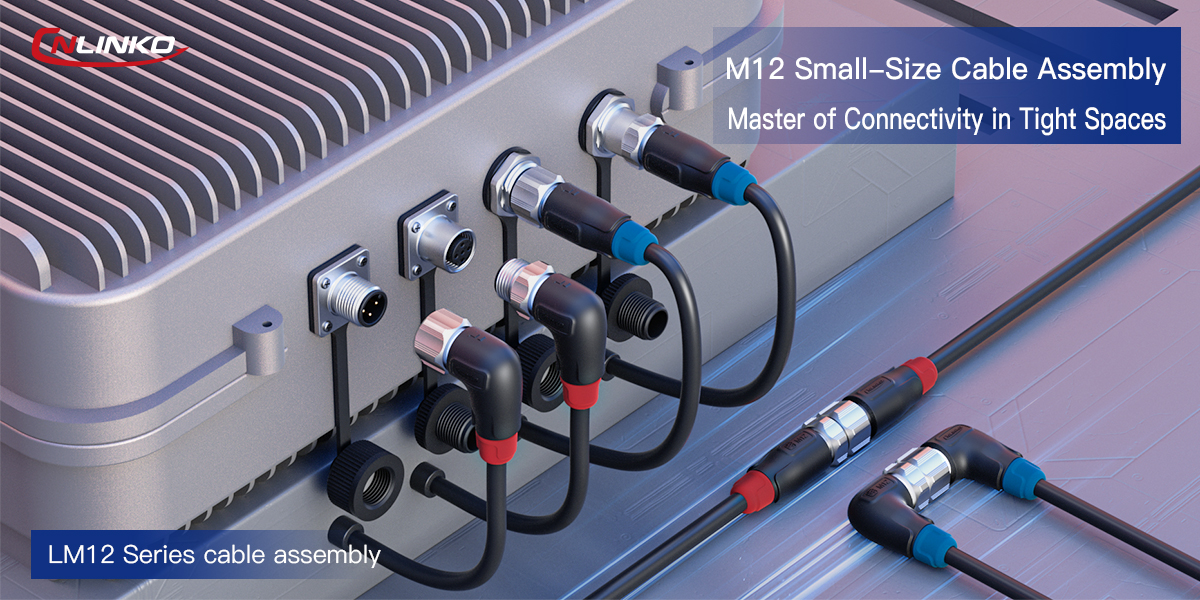

CNLINKO LM12 Cable Assemblies: Optimized M12 Performance
CNLINKO's LM12 series features threaded industrial-grade M12 connectors with 180°/90° options – perfect for space-constrained installations. Pre-crimped construction eliminates field termination.
Key Features:

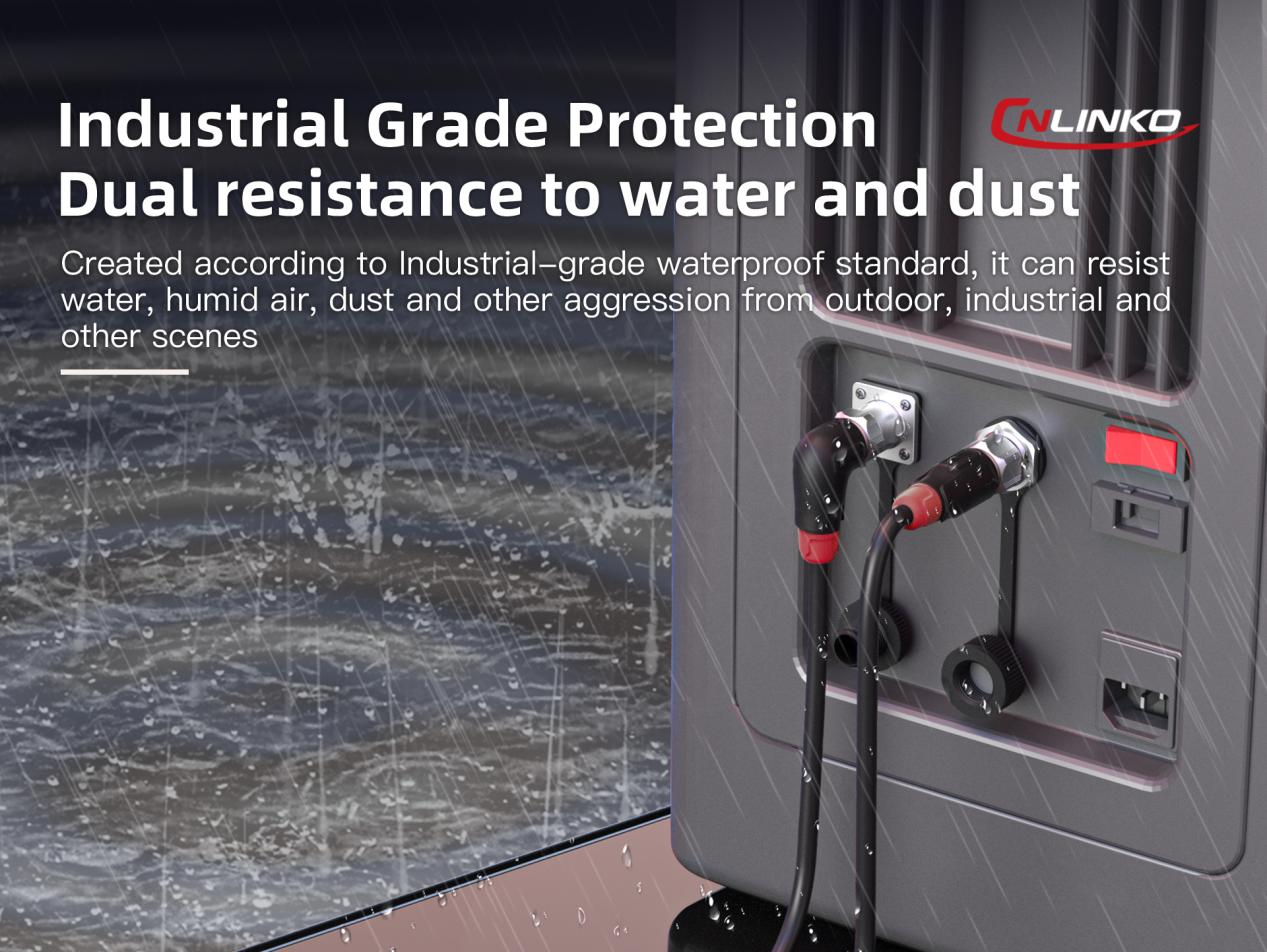

①Industrial-grade protection: IP67/IP69K options
② Environmental resilience:
- Temperature range: -25°C to +120°C
- UL94 V-0 flame resistance
- UV/oil/chemical resistance
③ Pre-assembled: No field wiring required

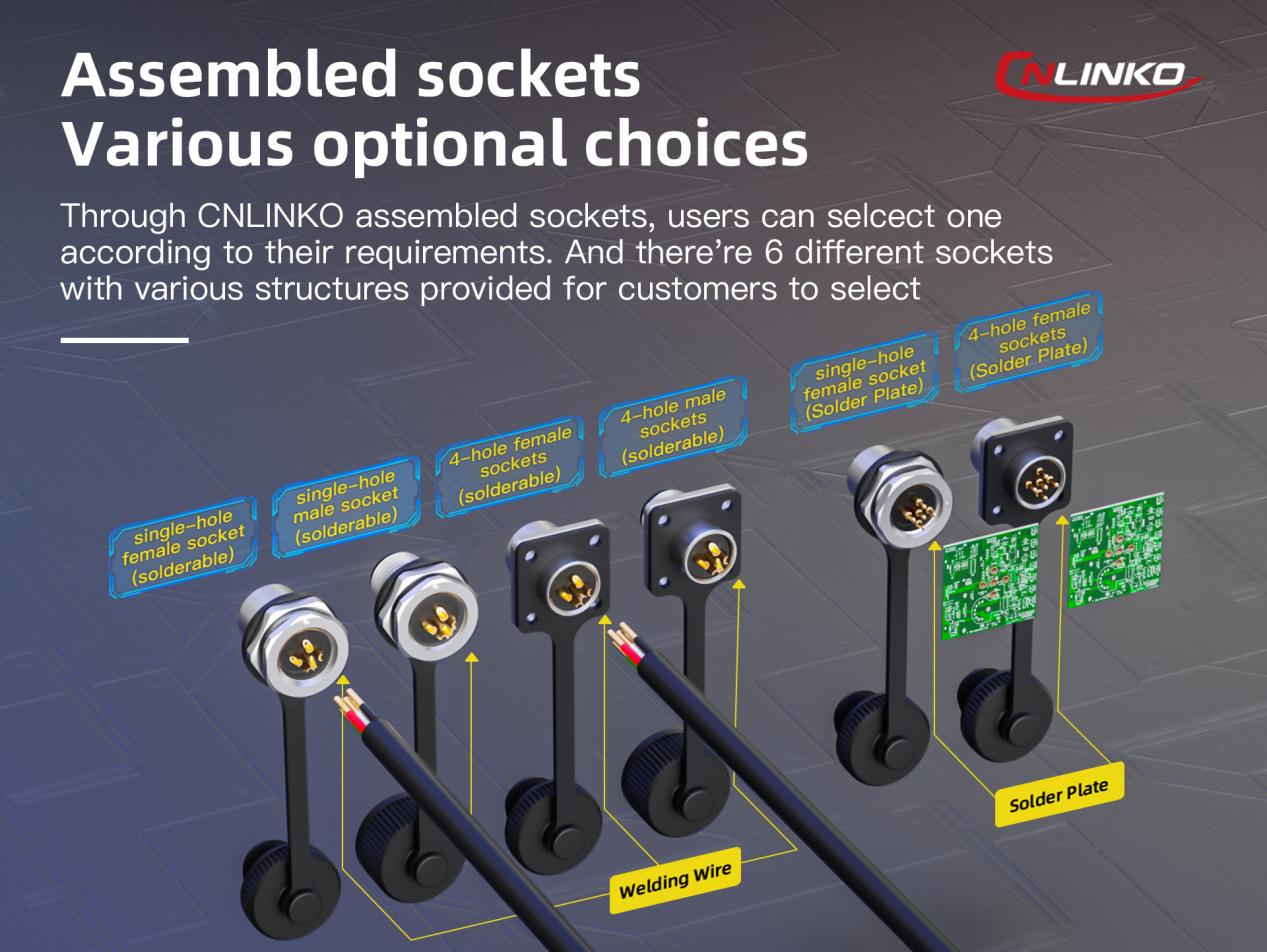

④ 6-port configurations: A-coded to X-coded variants
⑤ Hexagonal anti-slip collar: Secure torque application
