Nearly Half the Size + "Dual-Lock" Mechanism: Why the CNLINKO DL28 Industrial Connector is Highly Favored in Servo Motor Applications
DL-28 Industrial Connector Background：
In industrial automation, robotics, and precision manufacturing, servo motors demand extremely high levels of electrical connection stability, vibration resistance, and spatial compatibility. The CNLINKO DL28 series industrial connector, an all-plastic connector with multiple innovations and advantages, is emerging as a new ideal connection solution for high-current applications in servo motors.
The DL28 Industrial Connector in Servo Motor Applications
The DL28 industrial connector, a key product from CNLINKO for the high-current connection market, offers significant advantages and high innovation, perfectly matching the evolving demands of servo motors and facilitating compact design. Its main benefits are as follows:
01. "Dual-Lock" Mechanism for Comprehensive Protection in High-Frequency Vibration Scenarios
Servo motors generate sustained, high-intensity mechanical vibrations during high-frequency start-stop cycles, directional changes, and sudden load shifts. Traditional connectors with a single locking method are prone to terminal wear due to resonance, leading to signal distortion or power failure risks.
The DL28 connector features an innovative two-stage locking mechanism combining a "bayonet screw thread + anti-retraction outer ring":
① Bayonet Screw Thread: Achieves initial engagement between the plug and socket, resisting axial mechanical stress.
② Anti-Retraction Outer Ring: Applies radial secondary locking force, suppressing displacement caused by high-frequency vibrations.
This dual-lock synergy enhances vibration resistance multiple times over, ensuring connection reliability and stability for servo motors in high-speed motion scenarios.

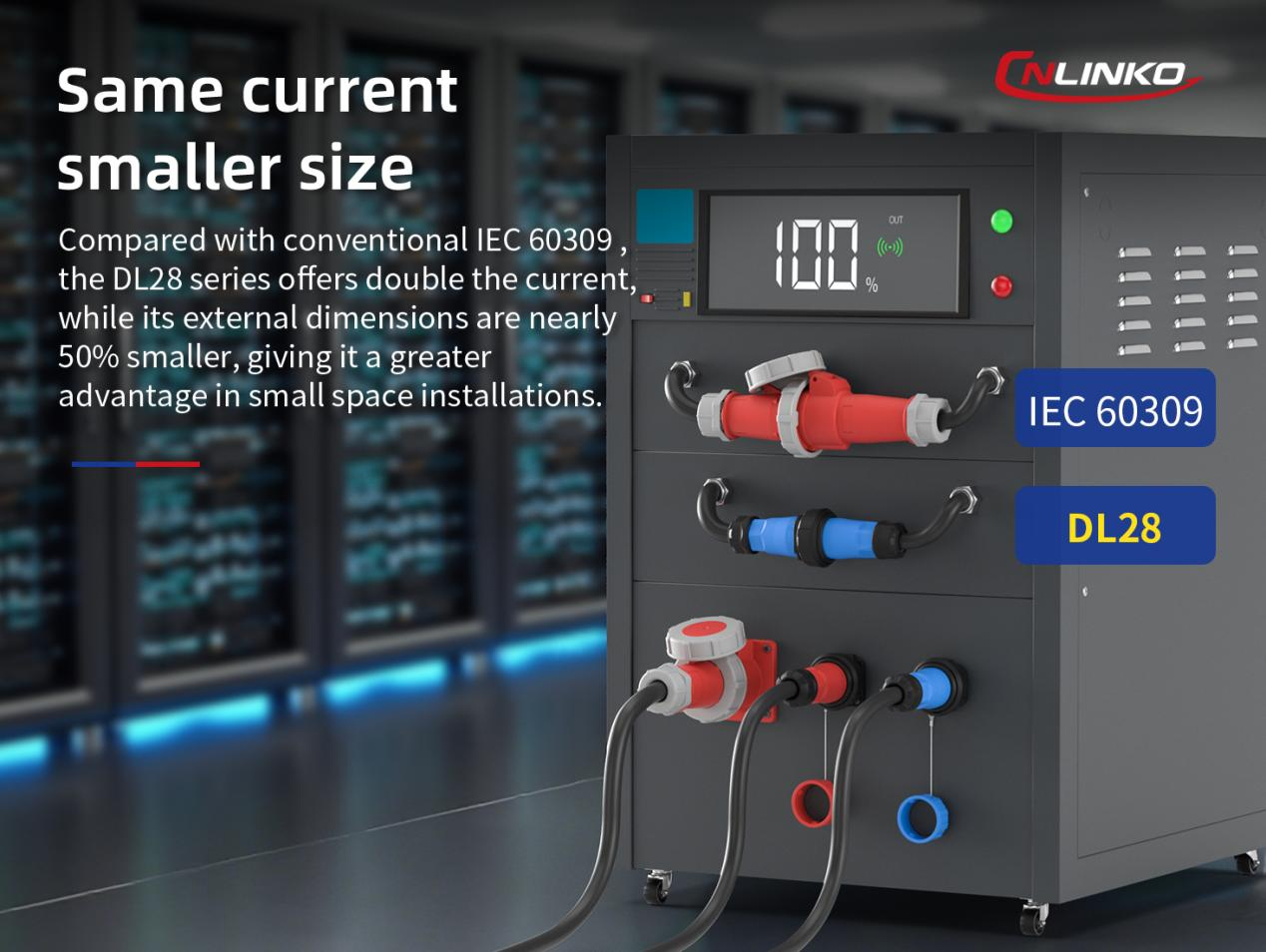

02. Smaller than IEC60309 Plugs, A Better Match for Servo Motor Compactness
Modern servo motors are evolving towards smaller sizes and higher power density. Traditional IEC60309 connectors encroach on heat dissipation space and hinder equipment miniaturization.
Within the category of high-current connectors, the DL28 series industrial connector stands out for its small and compact form factor. Compared to standard IEC60309 plugs on the market, the DL28 series is nearly 50% smaller. This game-changing advantage in size and dimensions significantly aids the compact development of modern servo motors.
03. Flagship-Grade Waterproof Performance for Versatile Servo Motor Applications
Scenarios like coolant spray in CNC machine tools or 85°C high-pressure washing in food machinery require connectors to possess dynamic fluid sealing capability. Therefore, waterproofing is a mandatory requirement for servo motor connectors.
Harsh liquid environments are not a challenge for the DL28 industrial connector, as it is configured with IP68/IPX9K waterproof ratings. For the various water-related operating environments of servo motors, including ambient temperature water or high-temperature, high-pressure water, this connector eliminates the risk of failures like short circuits or corrosion caused by fluid intrusion.

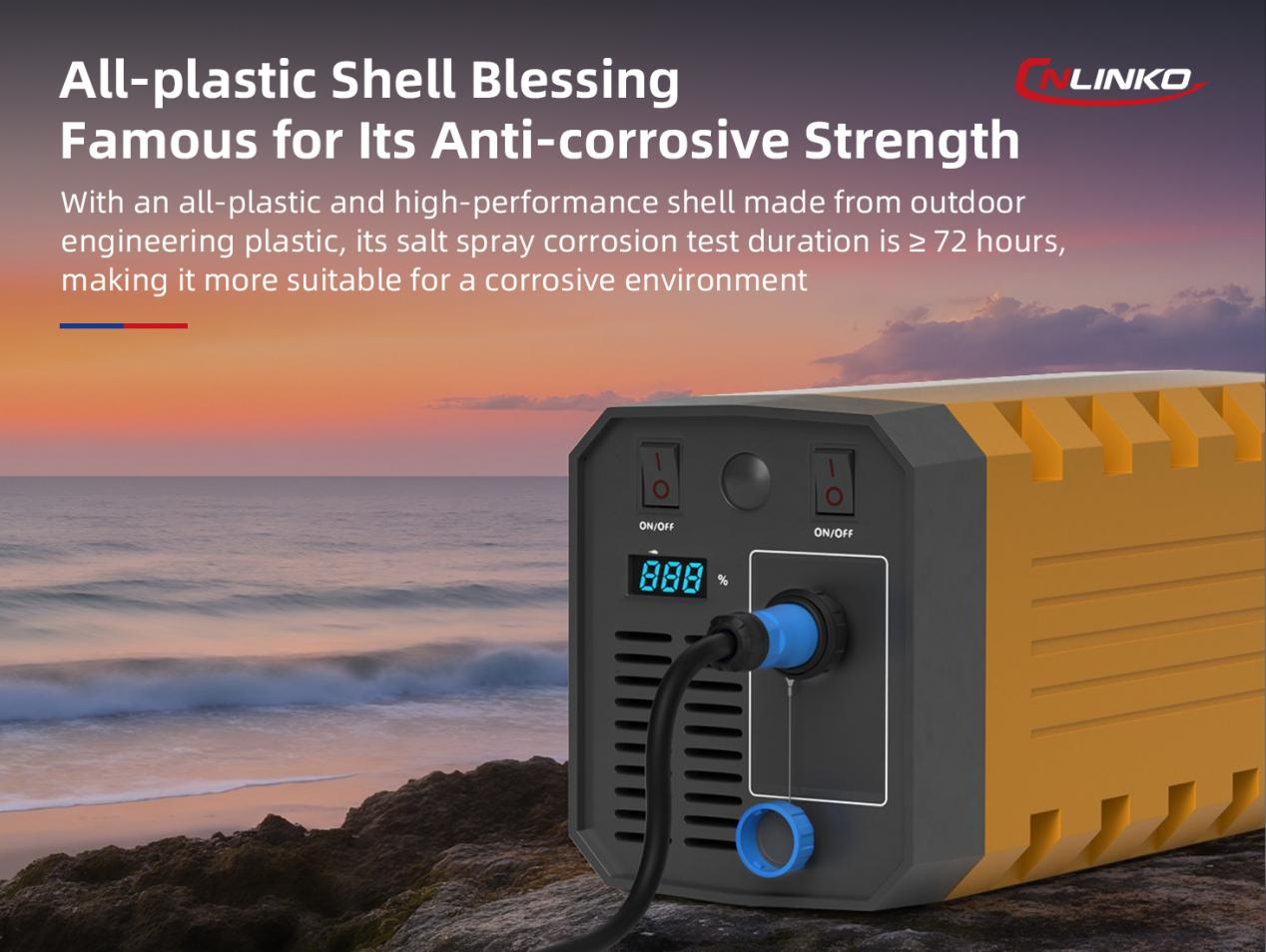

04. All-Plastic Housing for Enhanced Resistance in Corrosive Environments
The application scenarios for servo motors face diverse corrosive factors, such as acidic cutting fluids, salt spray, and cleaning solvents, which can corrode metal housings, leading to seal failure or structural strength degradation.
The DL28 series connector possesses excellent anti-corrosion and chemical resistance, providing a safe electrical connection for servo motors. This is demonstrated by:
① Using SABIC engineering plastics to create an all-plastic housing, resistant to hydrolysis and chemical solvents.
② Salt spray test ≥72 hours, with minimal chloride ion permeability.
③ Tight assembly with minimal housing seam tolerances, blocking medium penetration paths.

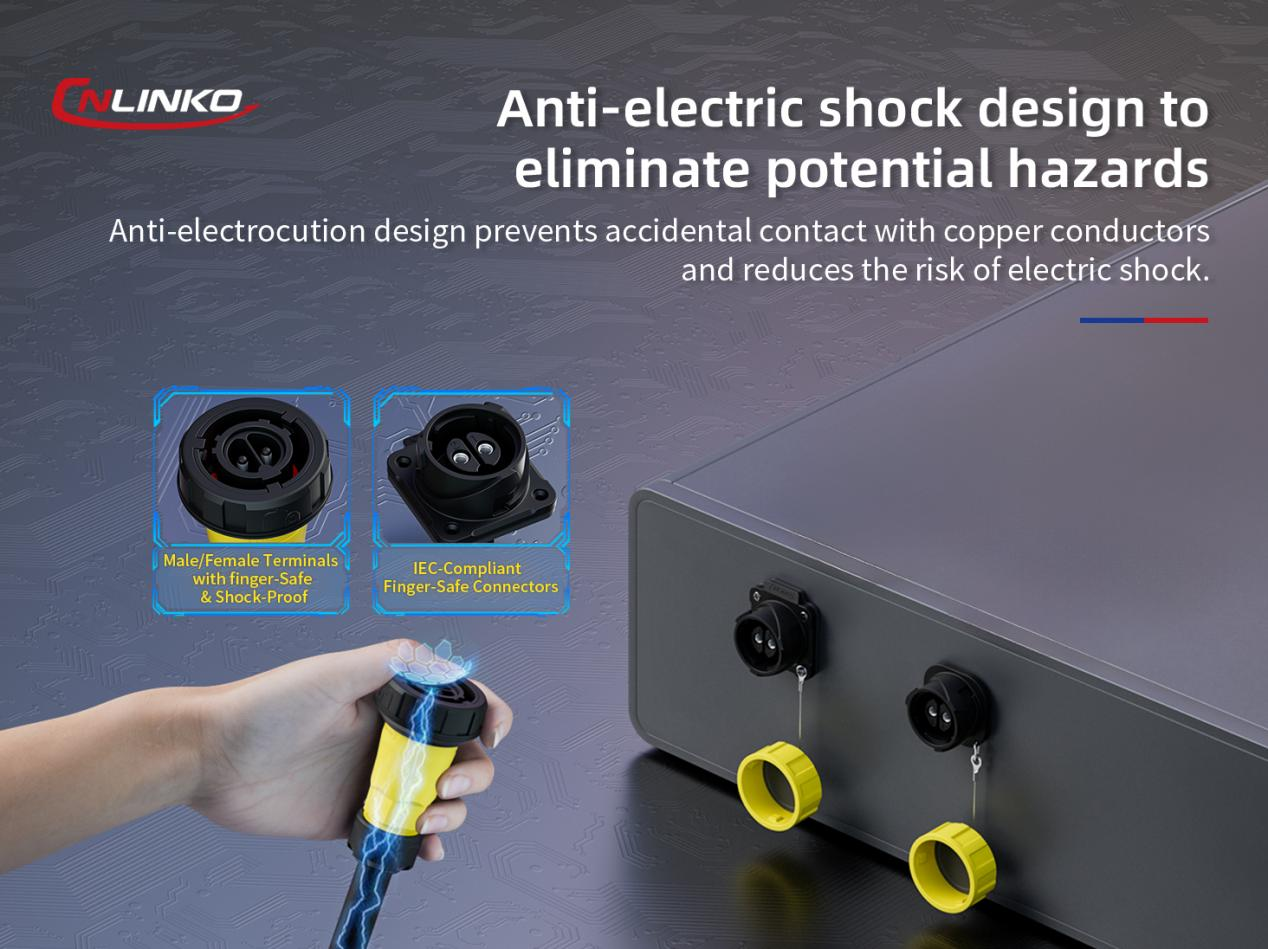

05. Finger-Safe Design for Operator Safety
During the mating and unmating of traditional high-current connectors, fingers might accidentally touch live terminals, causing arc flash burns or electric shock hazards.
While standard IEC60309 plugs offer relatively insufficient safety features like finger protection, the CNLINKO DL28 industrial connector incorporates a dedicated finger-safe design. Both the plug and socket connectors feature finger-safe structures that block the path of contact between fingers and live copper cores, preventing accidental contact and ensuring higher safety.
Application Summary: Delivering a New, Practical Innovative Solution for Compact Servo Motor Connections
Servo motors are widely used precision power devices. Their requirements for connectors extend beyond just waterproofing and corrosion resistance, placing significant emphasis on safety and compactness.
The CNLINKO DL28 series industrial connector is becoming a highly favored connection solution in the servo motor field. Compared to traditional IEC60309 plugs, the DL28 achieves a breakthrough of being nearly half the size while doubling the current transmission capacity. It solves the spatial bottleneck for high-density motor integration and, with its standout advantages in vibration resistance, high waterproofing, strong corrosion resistance, and operational safety, becomes the ideal choice for highly reliable, safer, and more compact electrical connections in the field of industrial power.
