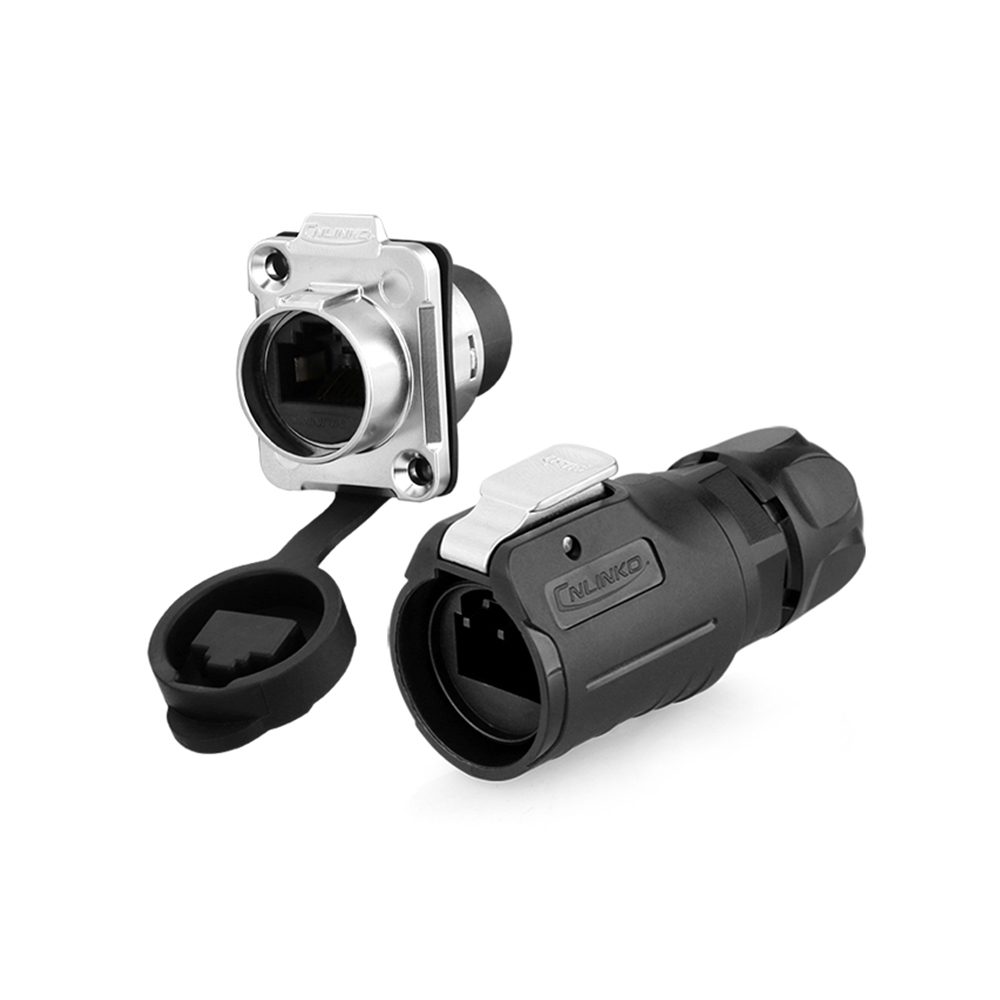

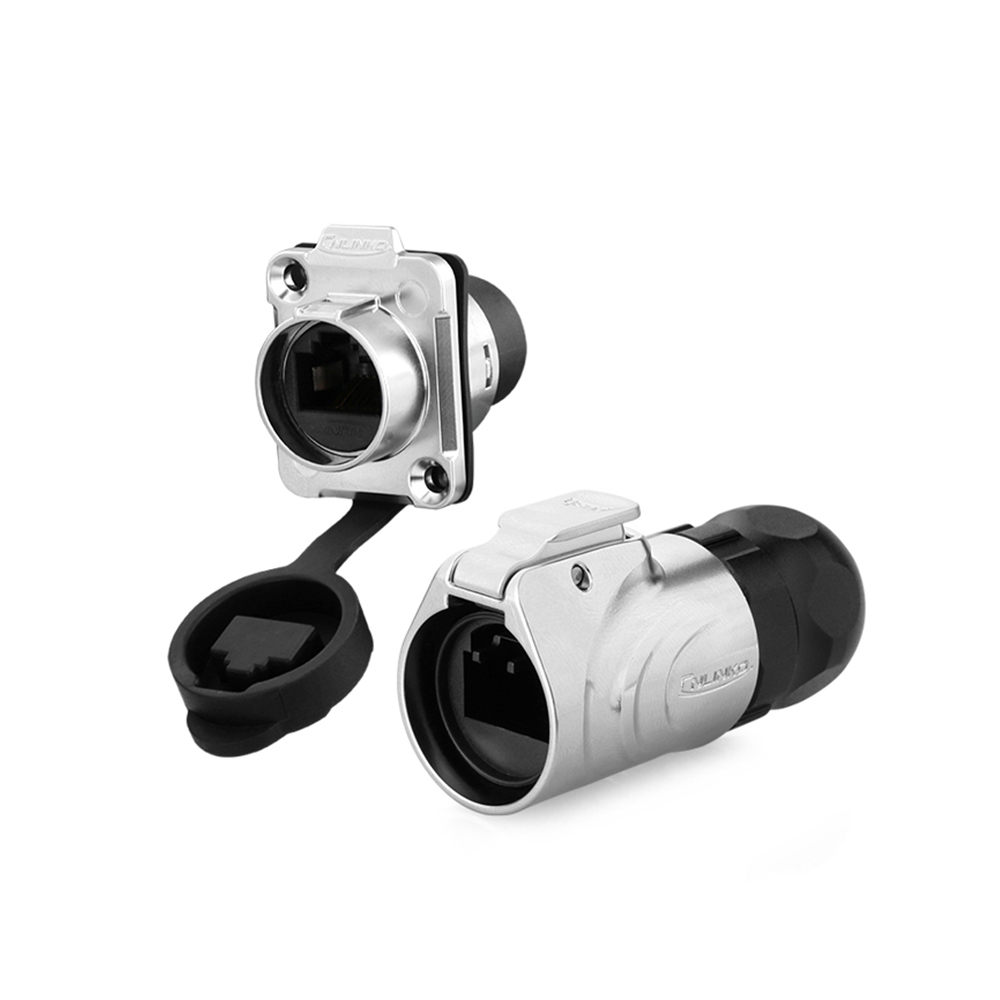

LP-16-RJ45 Circular Waterproof Aviation Plug Signal Connector
Blazing Speed, Ultimate Protection.
Video
Product Size
Pin
IP Rating
Rated Current
Rated Voltage
Product Series
Wiring Type
Interface Type
Mating Cycles
Plastic Two hole suit
Plastic Mating suit
Metal Two hole suit
Female Plastic Socket For SMT
90° RJ45 Plastic Female Connector

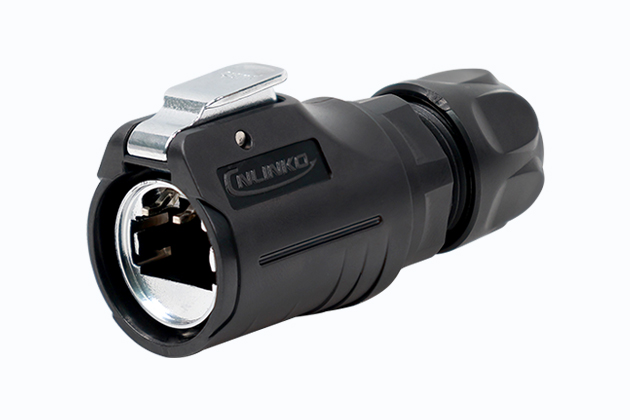

RJ45 Plug With Shield
CAT6 high-speed interface, transmission speed up to 1000Mbps,
Satisfies fast transmission of large capacity data
LP16 Series One-Hand Quick Plug Connectors are compact industrial waterproof connectors designed for industrial equipment and outdoor applications. Adopting an M16 compact structure and one-touch snap-lock design, they enable one-handed fast mating and unmating, balancing installation efficiency and connection stability, with a mating cycle rating of over 2000 times.

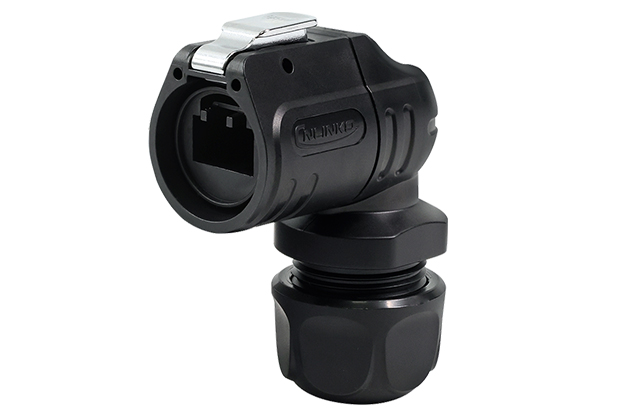

Featuring dual IP68/IPX9K protection, the products effectively resist dust, moisture, water immersion and high-pressure water jets. Multiple material combinations are available, including plastic, metal, and metal+plastic hybrid options. Straight and 90° elbow configurations are offered to accommodate confined internal equipment space and side routing requirements.
The series supports power, signal and data transmission, with a variety of interfaces such as pin contacts, RJ45 and Type‑C. The Type‑C version delivers a maximum data transmission rate of 10Gbps. With a wide operating temperature range of -40°C to +120°C, the connectors are widely used in industrial automation, outdoor LED displays, laser equipment, instrumentation, security monitoring and other fields.
This series holds 8 design patents and 16 utility model patents. It has obtained international certifications including UL, TUV, CQC and CE, and won the German iF Design Award and Red Dot Design Award.
Outstanding Performance in Harsh Environments
Gold-plated contacts | High-performance material housing | Spring snap-fit design | Industrial-grade manufacturing
IP68/IPX9K Protection rating, superior waterproofing
IP68 rated, superior waterproofing, adapts to harsh underwater environments, ensuring stable connection
One-step plug-and-play, the beauty of ergonomics
Ergonomically designed, emphasizing industrial simplicity, one-click snap-fit, single-handed plug/unplug, truly achieving fast connection and easy operation
Genuine materials, substantial quality
Constructed with precision from carefully selected high-quality materials, including the housing, waterproof seals, and contacts, ensuring enhanced durability and reliability
| Comparison Dimensions | Space Requirements | Installation and Maintenance | Product Portfolio | Technical Support |
|---|---|---|---|---|
CNLINKO Solution (Recommended) |
This series quick‑plug waterproof industrial connectors feature straight and 90° right‑angle options with vertical cable routing, ideal for compact installations. |
CNLINKO LP16 series quick‑plug connectors enable one‑hand operation. The snap‑in plug‑and‑play design provides firm industrial‑grade locking to prevent loosening. |
CNLINKO supplies a full range of connection products for power, signal and data applications, delivering one‑stop connectivity solutions to reduce cross‑brand procurement costs and compatibility risks. |
CNLINKO offers 7×24h technical support & non‑standard custom development, with full‑process services from product selection and solution design to delivery. |
Conventional Market Solutions |
Featuring mainly straight‑type connectors with axially‑output cables, they require substantial depth clearance and generally come with larger overall dimensions. |
It features a complex structure with cumbersome installation and removal procedures, resulting in low‑efficiency post‑sales maintenance and higher labor costs. |
Limited product portfolio forces combined procurement from multiple brands, bringing insufficient compatibility, complicated part selection and higher supply‑chain management costs. |
Long response lead time, no custom‑development capacity, hard to satisfy differentiated project demands. |
Product Parameter
Please note: To access more detailed specifications and parameter tables, please proceed to the Download Center for viewing and downloading.
Recommended Solutions
High-current Solution
High-current design, low resistance, low temp rise, stable high-power power supply
EMI Shielding Solution
360° Full Shield Design, EMI Resistant, Stable High-Speed Signal Transmission
Quick Plug & Unplug Solution
Quick-Connect Design, Tool-Free, Fast Wiring, Higher Efficiency
Waterproof & Corrosion-Proof Solution
IP68/IPX9K Rated, Salt Spray Resistant, Harsh Environment Long-Term Operation
High-Speed Solution
High-Speed I/F Design, Low Loss, Low Latency, Massive Data Interconnect
Application Cases
