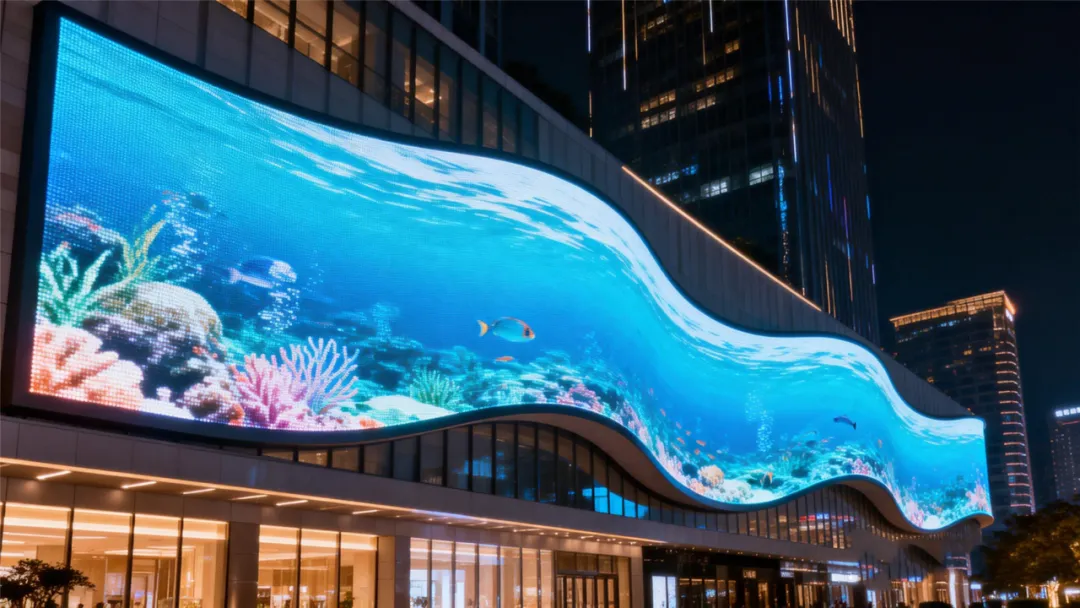

Straight screens are everywhere, leading to visual fatigue. The arrival of flexible screens brings a stunning impact. They blend seamlessly with walls, boast versatile and elegant forms, and create a truly immersive advertising experience.
While the visual effect of flexible screen ad displays is dazzling, a critical component working behind the scenes must not be overlooked: the industrial-grade USB data connector that provides the essential high-speed data pipeline.
Part 1: The Role of USB Connectors in Flexible Screen Ad Displays
01. Local Content Playback Port
For flexible screens deployed in outdoor locations without network access, or for systems kept offline to avoid network vulnerabilities, the USB interface connector offers a secure and practical method for content updates.
02. Device Debugging & Maintenance
The USB connector provides a vital link for uploading firmware updates and connecting to debugging software, allowing engineers to fine-tune system parameters.
03. Peripheral Device Connectivity
It enables the connection of peripherals like USB cameras for customer traffic analytics or various sensors to monitor ambient light levels and other environmental factors.
Part 2: Requirements for Industrial Connectors in Flexible Screen Ad Displays
1. IP68+ Ingress Protection:
Outdoor displays are directly exposed to rain, snow, hail, dust, and condensation. The gaps in standard USB ports are highly susceptible to moisture and debris ingress.
2. High-Speed Data Transfer:
Flexible screens often play ultra-high-definition, high-frame-rate, or lossless video content, making high transmission bandwidth critical.
3. Easy, Quick Operation:
A fast and simple plug/unplug mechanism is essential, especially for displays with hard-to-reach interfaces. This improves both user experience and safety during operation.
4. Excellent Environmental Endurance: Outdoor displays can easily exceed 70°C under direct summer sun and drop to sub-zero temperatures in winter. Robust environmental tolerance is non-negotiable.
5. Secure Locking Mechanism: Standard consumer USB plugs are prone to accidental disconnection from minor force or vibration. A more secure, industrial-grade USB connector with a positive lock is essential for reliable operation.

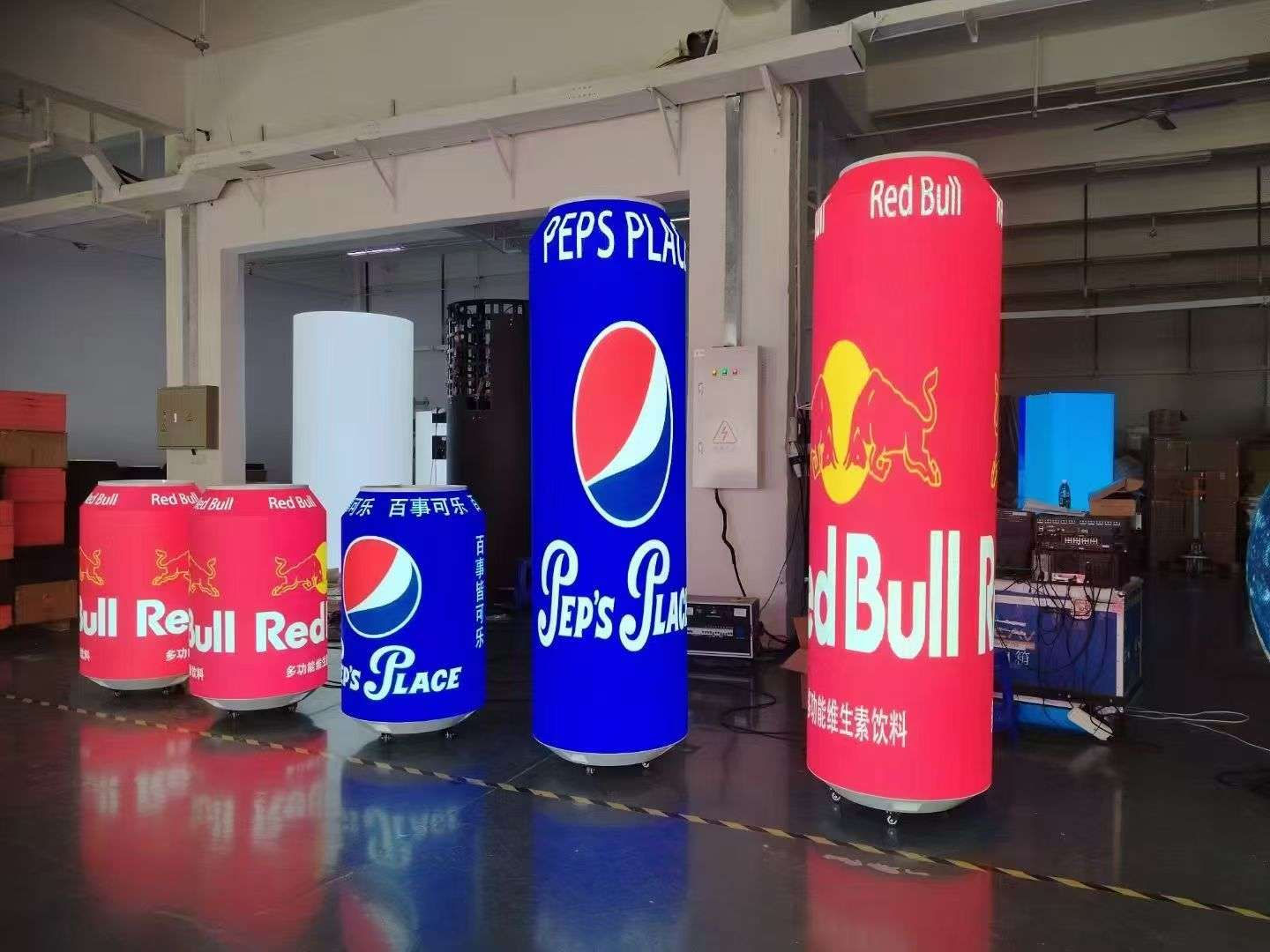

Part 3: CNLINKO's Connectivity Solution for Flexible Screen Ad Displays
- Application: Flexible Screen Advertising Display

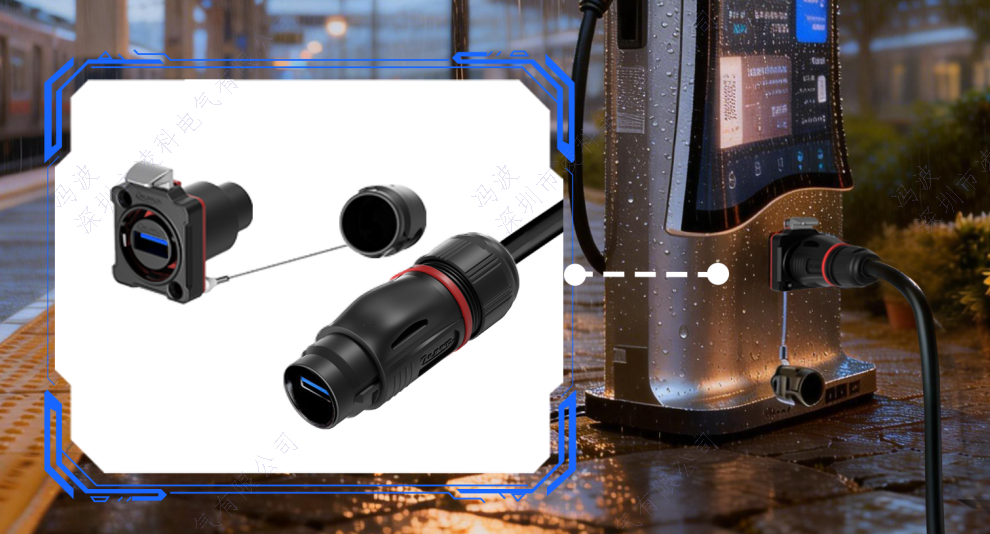

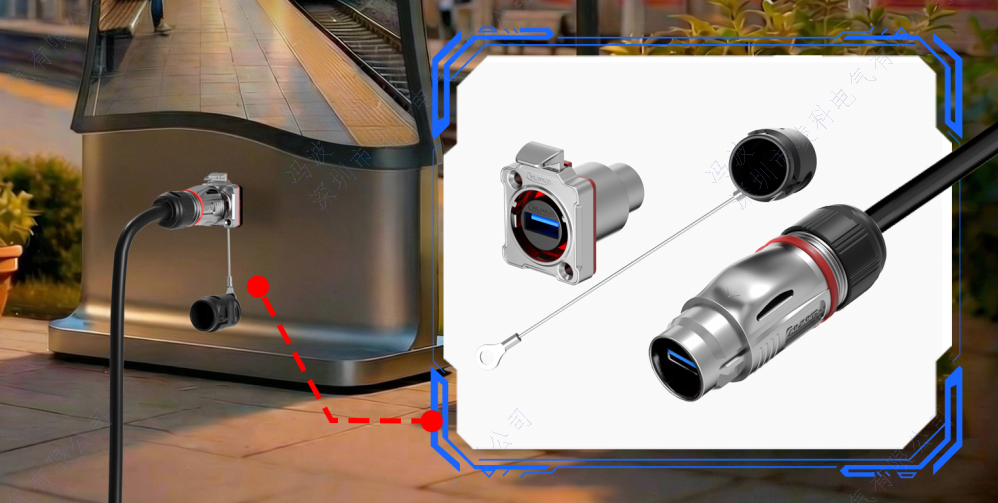

- CNLINKO Product: BD24 Series USB 3.0 Industrial Connector
- Function: Primarily used for high-definition ad video transmission and system maintenance tasks.
Part 4: Why the Customer Chose CNLINKO
The CNLINKO BD24 Series USB 3.0 Industrial Connector is engineered to meet industrial standards and specifically designed to withstand harsh outdoor environments. Its exceptional performance and reliability perfectly align with the demanding application needs of flexible screen ad displays, ensuring fast, stable data transfer and durable, long-lasting connections.
How the CNLINKO Solution Matches the Demands of Flexible Screen Displays:
01. Top-Tier Sealing (IP68/IP69K)
The BD24 Series offers IP68/IP69K protection, guarding not only against water immersion but also high-pressure, high-temperature water jets. This ensures the connector remains completely dry in challenging outdoor environments.
02. USB 3.0 High-Speed Transmission
Featuring a USB 3.0 high-speed data interface (up to 5 Gbps) with gold-plated contacts, this industrial-grade data connector provides significantly faster and more stable transfer rates compared to USB 2.0, along with enhanced durability.
03. One-Handed Quick Connect/Disconnect
Utilizing a push-pull latching design, the BD24 Series allows for secure one-handed mating and unmating. It offers convenience comparable to consumer USB ports, greatly simplifying on-site installation and subsequent maintenance.
04. High Weather Resistance for Outdoor Use
With an operating temperature range of -40°C to 120°C and a housing made from UV-resistant F1-grade engineering plastic, this connector effectively withstands long-term sun exposure, ensuring reliable and durable performance for outdoor displays.
05. Secure Locking for Uninterrupted Transmission
The industrial-grade push-pull locking mechanism provides a far more secure connection than consumer USB ports. It reliably prevents disconnection caused by accidental bumps, vibration, or wind load, effectively solving a common pain point for outdoor flexible screen applications.
CNLINKO is committed to pioneering connectivity technology, delivering high-performance, perfectly matched industrial solutions across diverse industries to help customers solve critical electrical and data connection challenges. If you have a related application need, feel free to contact us anytime!
