As a critical component in solar photovoltaic systems, solar actuators face complex and variable environmental factors in outdoor settings. Ensuring highly reliable operation in these conditions heavily tests the connector's reliability and hermeticity. So, how does the LP20 Hermetic Connector achieve this?
What are the Key Technical Requirements for Connectors in Solar Actuators?
Solar actuators are the core driving components of photovoltaic tracking systems, responsible for adjusting the angle of PV panels in real-time to capture higher intensity solar radiation. Their supporting connectors must meet very stringent technical requirements:
Hermetic Function: Prevent gaseous moisture and other gases from permeating through the connector, compromising its hermetic seal.
Water & Dust Protection: High risk of liquid water intrusion outdoors; additionally, outdoor dust is a significant concern.
UV Resistance: Outdoor ultraviolet radiation is a primary cause of plastic embrittlement and aging.
High/Low Temperature Tolerance: Must adapt to significant regional and seasonal temperature variations.
Flame Retardancy & Safety: Must maximize fire safety performance.
Corrosion & Chemical Resistance: Must effectively confront potential corrosive substances in the outdoor environment.
User-Friendly, Quick Operation: Aim to achieve fast installation and easy disconnection on-site.
How the LP20 Hermetic Connector Solves Solar Actuator Connection Challenges

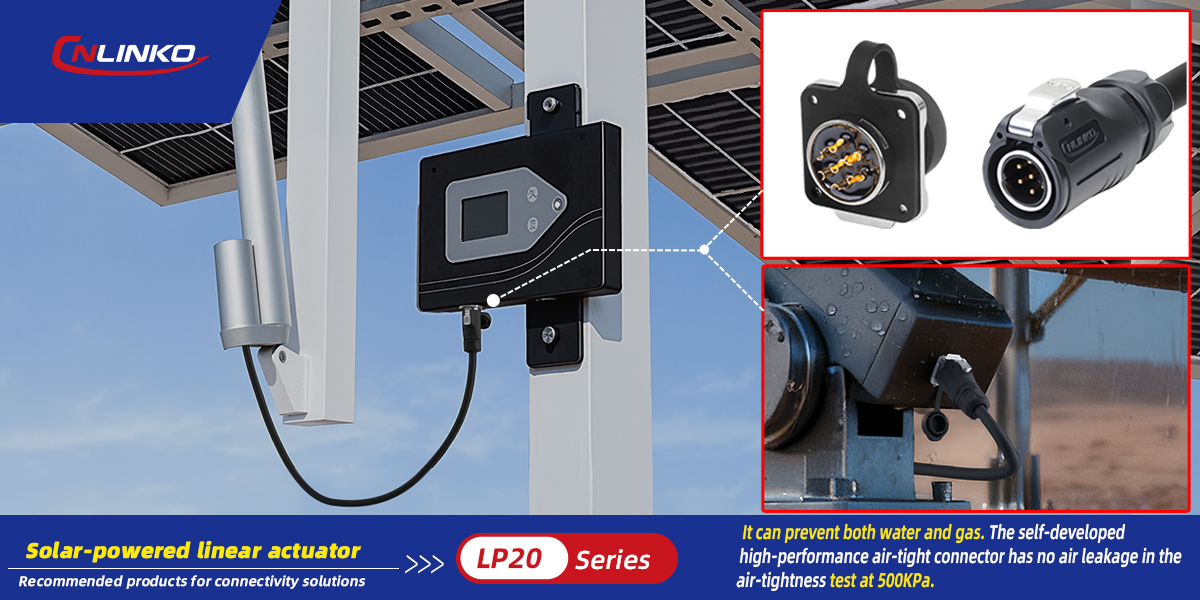

The CNLINKO LP20 Hermetic Connector is already deployed and applied in solar actuator equipment, demonstrating an excellent fit. Here's an analysis:
01. High-Performance Hermetic Function, Leaving No Room for Leaks
Because actuators constantly adjust PV panel angles, the connector's conduction must be reliably maintained in real-time without performance dropouts. The combination of humid outdoor environments and high temperatures readily forms water vapor, which can breach the connector's defenses, cause condensation, and lead to corrosion.

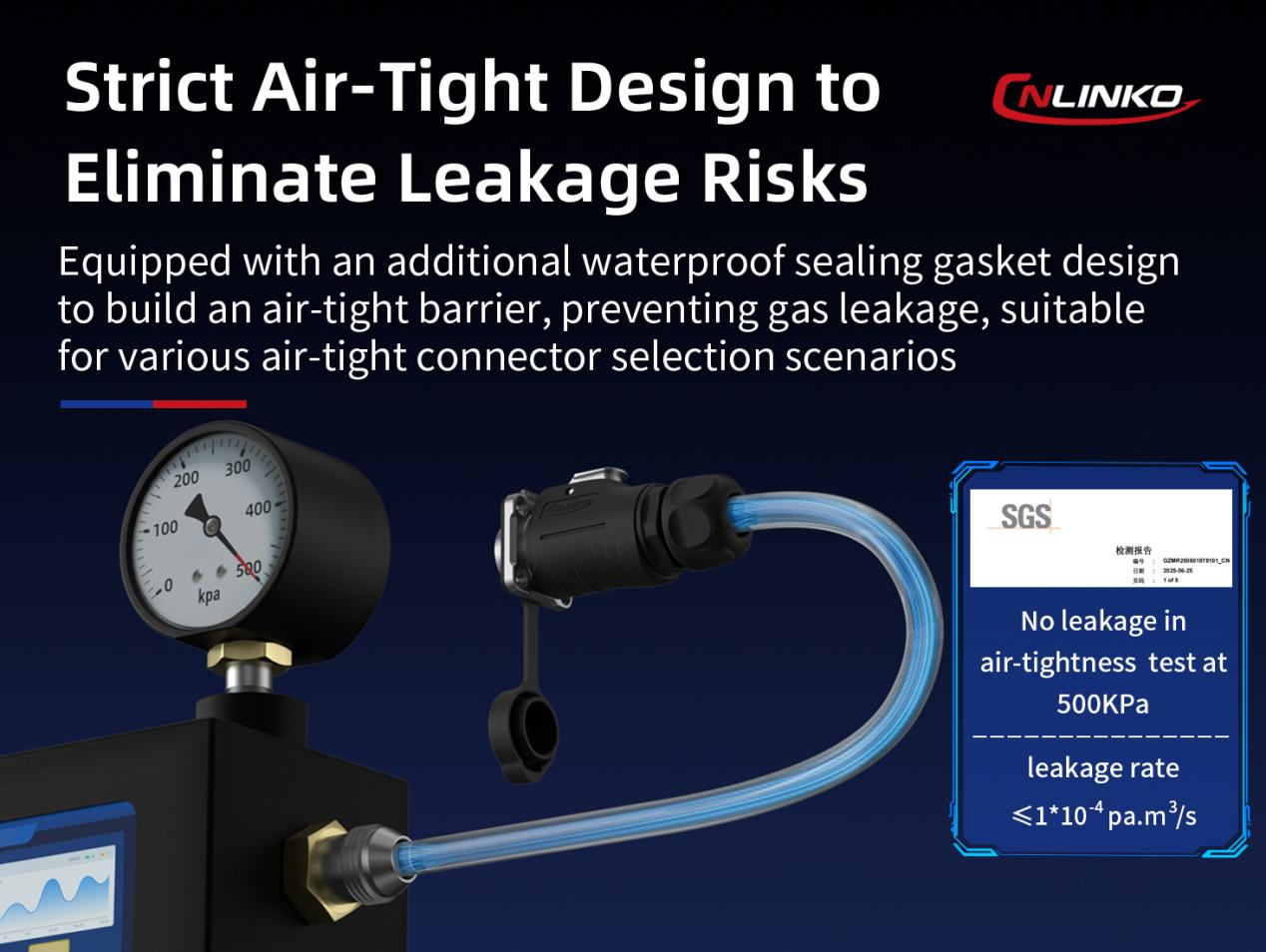

This CNLINKO LP20 Hermetic Connector employs a combination of sealed copper pins, integrated module sidewall seals, and a multi-layer conformal coating process, resulting in very robust hermeticity. It passes a 500KPa hermetic test with zero leakage, ensuring reliable hermetic protection for the connector.
02. IP68/IPX9K Configuration, Fortifying Defenses Against Water & Dust
Outdoor threats include liquid water incursion (e.g., heavy rain) and dust accumulation (various solid particles), which pose potential hazards to the internal electrical components and housing surface of the actuator's connector.

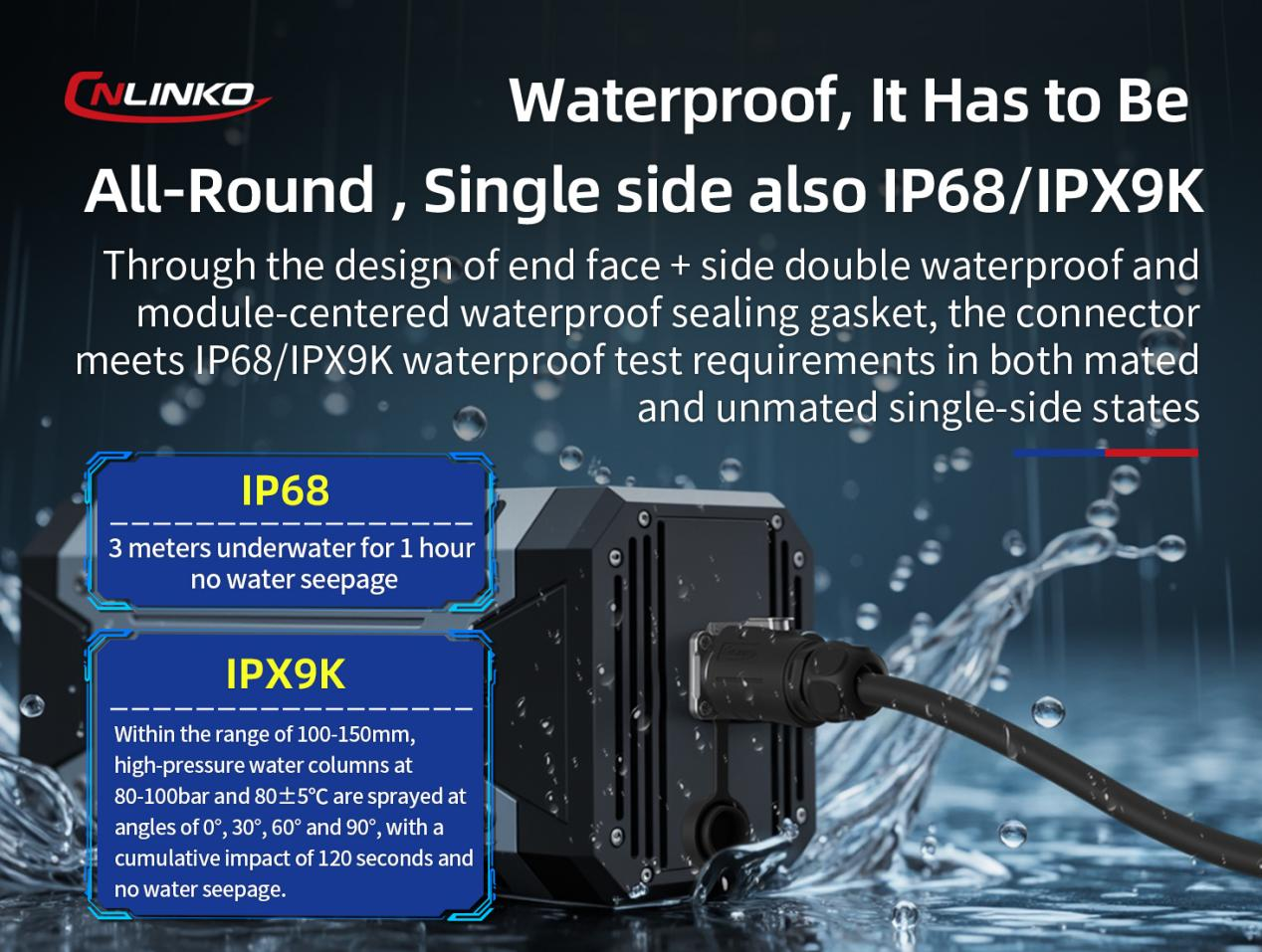

The waterproof and dustproof capability of this CNLINKO hermetic connector is unquestionable, featuring a flagship-grade configuration. It achieves IP68/IPX9K protection ratings in both the mated state and, crucially, the unmated state (for the socket). This reliably handles the outdoor environment faced by solar actuators, providing high-grade, dependable water and dust protection.
03. Premium Engineering Plastics, Significant Outdoor Flame Retardancy
For the outdoor scenarios where solar actuators are used, safety risk monitoring typically relies on periodic personnel inspections and network monitoring. If a fire risk occurs, rescue efforts are relatively more difficult. Therefore, the inherent safety performance and flame-retardant rating of the equipment and its connectors hold significant practical value.

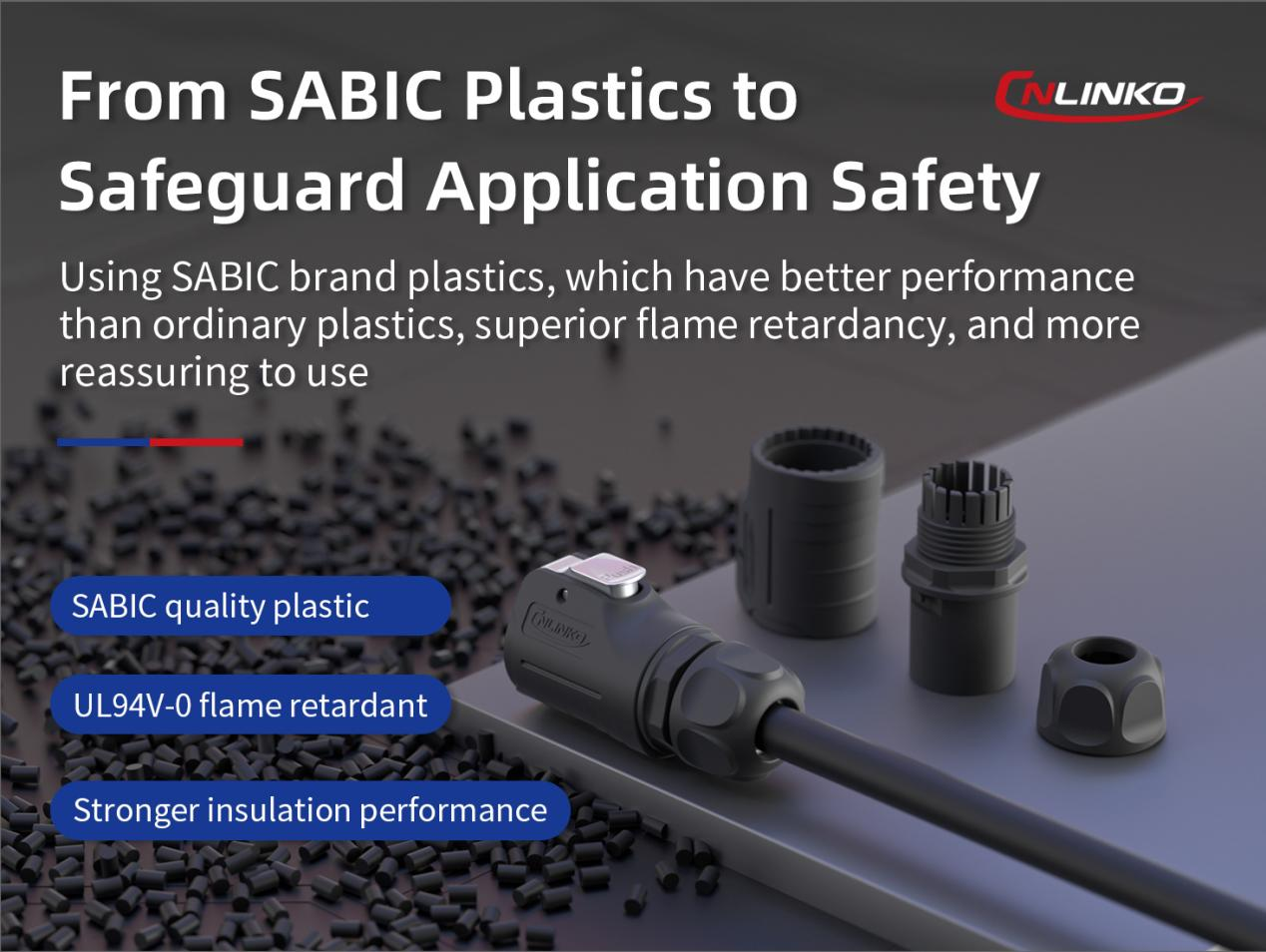

The CNLINKO hermetic connector housing uses SABIC high-performance engineering plastic, certified with a UL94 V-0 flame retardancy rating. In fault scenarios like circuit short circuits, this material can form a carbonized barrier layer, effectively curbing arc propagation and significantly enhancing overall fire safety.
04. Unfazed by Multiple Environmental Factors, Robust Assurance of Reliable Connection
Solar actuators operate in complex outdoor environments where both the equipment and its industrial connectors face multiple factors: external temperature extremes, UV degradation, and the deposition/erosion of corrosive agents.
This CNLINKO hermetic connector can adapt to the harsh outdoor environmental challenges faced by solar actuators, primarily as follows:

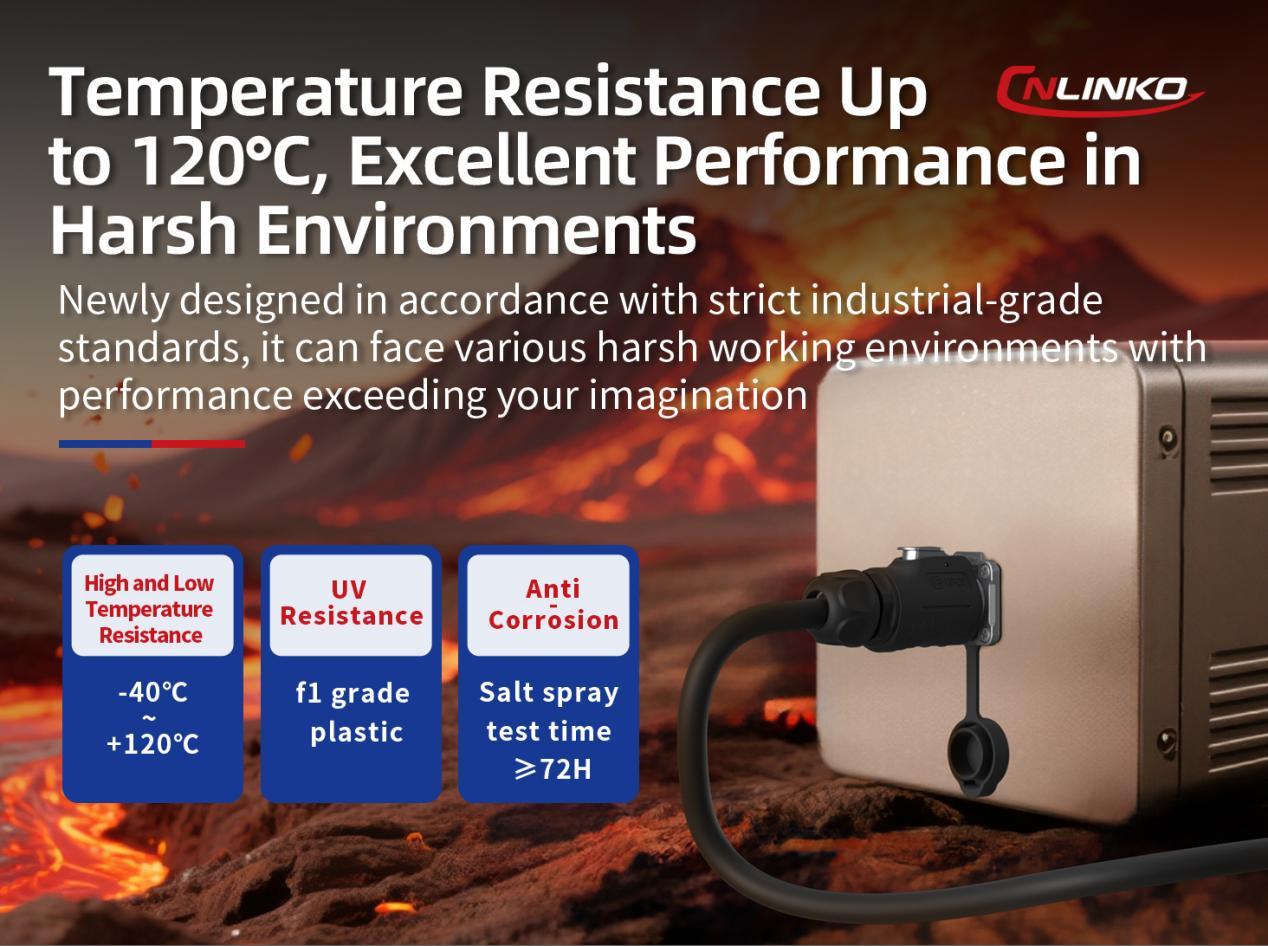

① Uses wide-temperature-range engineering materials (suited for -40°C ~ +120°C), verified through high/low temperature cycle testing.
② Employs f1-rated UV-resistant engineering plastic, meeting the long-term outdoor anti-aging requirements for connectors used in solar actuators.
③ Features an all-plastic main housing + sealing barrier design, with salt spray testing ≥72 hours, offering stronger corrosion and chemical resistance.
05. One-Handed Plug & Unplug, Embodying Speed & Simplicity
The plug-and-play functionality and one-handed operation of the connector are highly attractive for solar actuator equipment, improving both operational efficiency and user experience, and proving beneficial for subsequent maintenance.

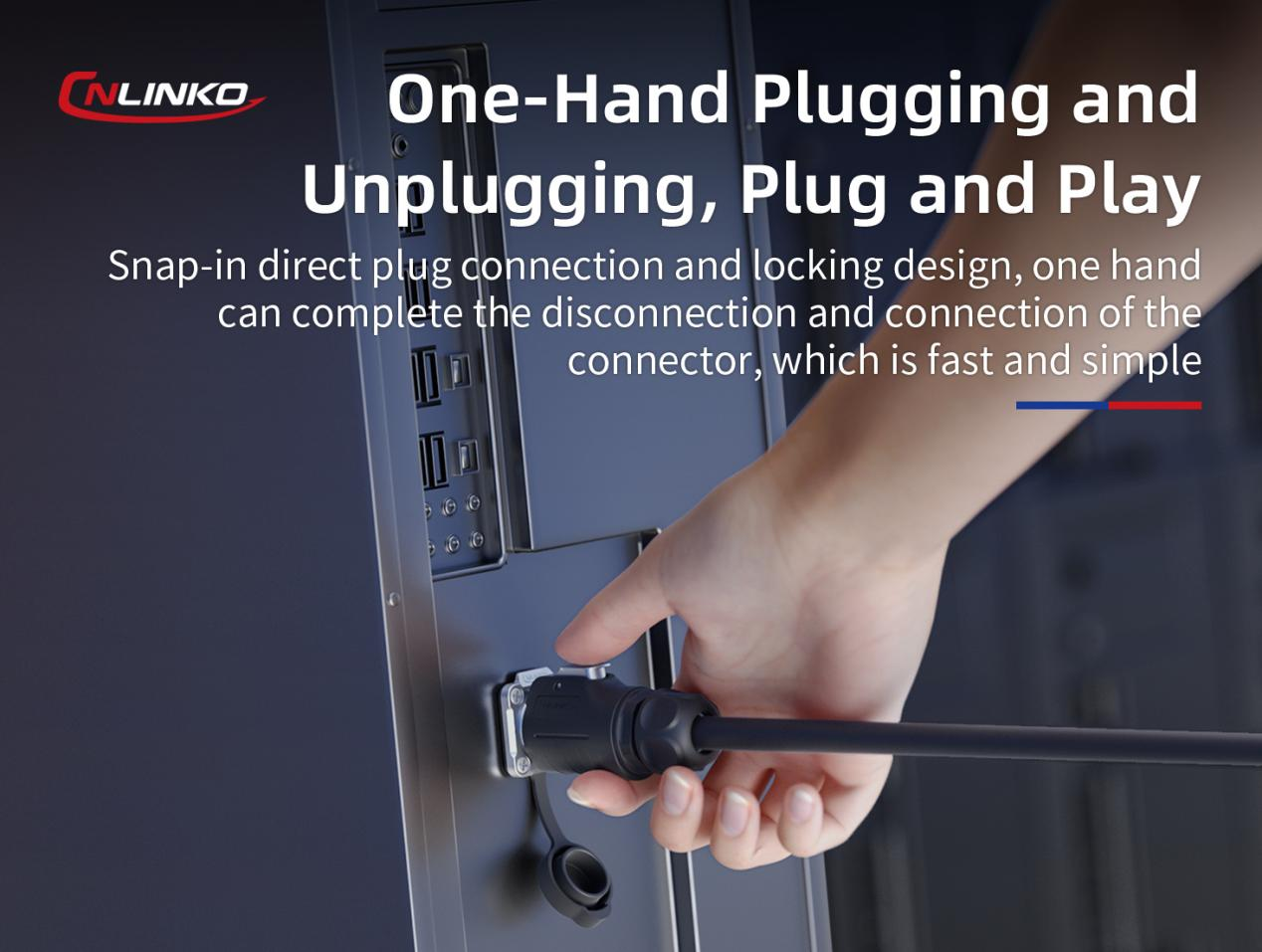

Designed with user-friendliness and convenience in mind, this CNLINKO hermetic connector incorporates a snap-fit direct plug-in connection and locking structure. Users can quickly connect and disconnect the plug and socket with just one hand using a simple push/pull action, which has been widely welcomed by field users.
The CNLINKO LP20 Hermetic Connector is now highly popular and well-regarded in the solar photovoltaic field, thanks to its focus on integrating high-performance product design with ergonomic principles, effectively solving the connection challenges in solar system applications.
