While standard industrial connectors can meet the needs of most general applications, they often fall short when equipment requires compact installation spaces, specialized electrical specifications, or extreme environmental resilience. Custom connectors have thus become a rigid demand for equipment manufacturers—they not only ensure reliable transmission of power, signals, and data but also enhance system efficiency and reduce maintenance costs. So, what parameters are required for industrial connector customization? What is the process, and how long does it take? Let’s explore.
I. What Key Parameters Are Needed for Custom Industrial Connectors?
The first step in customizing industrial connectors is requirement confirmation. Manufacturers must communicate in depth with clients regarding equipment operating conditions, signal transmission needs, and environmental tolerances. Below is the core parameter checklist required for customization:
Electrical Parameters: Rated current and voltage determine the load-bearing capacity of the industrial waterproof connector during normal operation. Generally, small-signal scenarios require currents of a few amps, while large and medium-sized power equipment may require tens or even hundreds of amps. Contact resistance, which directly affects temperature rise and signal integrity, must be explicitly specified.
Mechanical Parameters: These include the number of pins, installation method (panel mount, PCB soldering, wire-end crimping, screw locking, etc.), overall dimensions, and panel cutout sizes. For equipment with limited space, a 90° elbow design can be requested to reduce installation depth. Mating cycles are equally critical; for high-frequency debugging scenarios, a minimum of 2,000 cycles is recommended.
Environmental Parameters: What is the operating environment? For outdoor and humid conditions, specify the IP protection rating (IP67, IP68, or IPX9K). For coastal or chemical environments, salt spray corrosion and chemical resistance requirements must be defined. For wide-temperature applications, specify the operating temperature range (industrial-grade is typically -40°C to +120°C).
Material and Process Requirements: Housing material (engineering plastic or metal alloy), contact plating (gold/silver/tin-plated), and seal ring materials.
Special Functional Requirements: Is EMI/RFI shielding required? Is hybrid transmission of power and signals needed? Are strain relief or anti-loosening structures necessary?

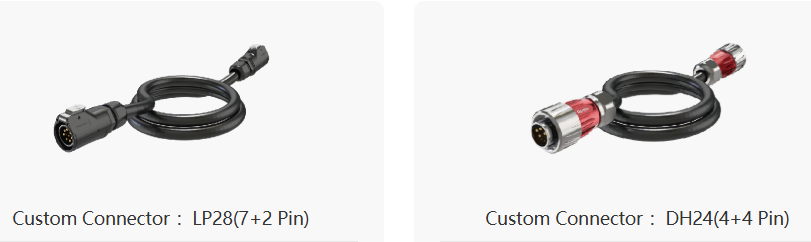

CNLINKO offers comprehensive customization services. Its LP, BD, DL28, and DK24 series of industrial waterproof connectors can be customized based on specific application scenarios, covering the full spectrum of power, signal, and data connectivity needs.
II. Industrial Connector Customization Process: From Requirements to Mass Production
The complete customization process for industrial waterproof connectors typically includes the following core steps:
Step 1: Requirement Communication & Evaluation: The client provides the application scenario, technical parameters, mass production volume, and lead time. CNLINKO engineers verify parameter compliance and provide optimized solutions for special requirements (e.g., IP68 waterproofing, EMI shielding).
Step 2: Solution Design & Quotation: Engineers create 2D assembly drawings and 3D simulation models to clarify structural design and manufacturing processes. Material and labor costs are calculated simultaneously to provide a formal quotation.
Step 3: Prototyping & Testing: Samples are manufactured according to the design and subjected to comprehensive testing—including electrical and mechanical tests (continuity, insulation resistance, mating cycles) and environmental tests (temperature cycling, salt spray corrosion). Samples are delivered to the client for trial use and iteratively optimized based on feedback.
Step 4: Mass Production & Quality Control: Strict process control is maintained throughout production, with 100% inspection post-assembly. CNLINKO possesses UL and TÜV witness-authorized professional laboratories and lean standard production lines, ensuring stable performance of customized industrial waterproof connectors throughout their lifecycle.
Step 5: Packaging, Delivery & After-Sales Support: Custom packaging is provided based on product characteristics, complete with certificates of conformity and test reports. CNLINKO offers continuous after-sales support and quality assurance.
III. What Is the Lead Time for Custom Industrial Connectors?
Lead times vary depending on project complexity, typically ranging from a few dozen days to several months. CNLINKO supports all levels of customization, from rapid modifications of standard products to entirely new mold development. Leveraging in-house mold development capabilities and an integrated supply chain, CNLINKO can effectively shorten customization lead times.
IV. FAQ: Common Questions About Industrial Connector Customization
Q: What core parameters are required for custom industrial connectors?
A: At a minimum, three categories of core parameters must be provided: electrical (rated current/voltage), mechanical (pin count/installation method/overall dimensions), and environmental (IP rating/corrosion resistance/operating temperature range). Special requirements such as EMI shielding or hybrid transmission should also be specified.
Q: What is the typical lead time for CNLINKO industrial waterproof connector customization?
A: Specific lead times depend on product complexity and testing requirements. Generally, from user requirements to product realization, CNLINKO can deliver customized products in as little as 20 days.
Q: How are costs for custom industrial connectors calculated?
A: Costs consist of material costs, mold development fees, prototyping fees, and mass production costs. Modifying standard products incurs the lowest fees, while entirely new mold development involves higher upfront investments. We recommend providing detailed parameters for an accurate quotation.
Q: What is the Minimum Order Quantity (MOQ) for custom connectors?
A: The MOQ for mass production is negotiable. CNLINKO supports all phases, from small-batch trial runs to large-scale mass production.
Q: Can custom connectors simultaneously meet IP68 and IPX9K protection ratings?
A: Yes. IP68 evaluates continuous immersion capability, while IPX9K evaluates resistance to high-temperature, high-pressure water jets. For scenarios requiring both immersion and spray resistance, dual-rated products should be selected. CNLINKO’s LP, BD, YM, DH, DL, and DK series all support dual flagship waterproof ratings.
Industrial connector customization is not simple "build-to-print" machining; it is a systematic engineering process involving requirement definition, material selection, seal structure design, mold development, sample validation, and mass production. Every parameter, from electrical specifications and mechanical structure to environmental resilience, directly impacts the long-term performance of industrial waterproof connectors in equipment. As a national-level specialized, refined, distinctive, and innovative (SRDI) "Little Giant" enterprise, CNLINKO provides one-stop customization services for equipment manufacturers across industries, backed by a full-category product matrix covering power, signals, and data, along with comprehensive parameter customization capabilities.
