M12 connectors, renowned for their compact design and diverse configurations, are a core solution for cabling in tight spaces, overcoming design bottlenecks for engineers. Straight and 90° right-angle M12 connectors are two commonly used structural types. So, how should you choose when using them?
What are the Features of Straight M12 Connectors?
Straight M12 connectors (180° cable exit) have the cable running parallel to the plug axis and feature the following characteristics.
Suitable for densely packed layouts and frequent mating/disconnecting applications:
① High-density array cabling:
In applications like PLC control cabinets, straight connectors can plug vertically into panels, allowing for more connector interfaces on the installation surface to achieve dense cabling.
② Suitable for frequent mating/disconnecting:
Compared to 90° right-angle M12 connectors, straight M12 connectors require less radial space for mating, avoiding lateral space constraints.
What are the Features of 90° Right-Angle M12 Connectors?
90° right-angle M12 connectors have the cable exiting perpendicular to the plug axis and feature the following characteristics.
Suitable for lateral obstacle avoidance and flat-space applications:
① Lateral obstacle avoidance required:
When there are moving parts to the side or other fixed components intruding into the lateral space, 90° right-angle connectors are needed. For example, in robotic arm joint areas, the angled connector allows cables to run close to the equipment surface, avoiding collisions with moving parts.
② Flat-space solution:
For enclosures or equipment with height restrictions, right-angle connectors enable horizontal cabling. Compared to straight M12 connectors (180° exit), they better compress the required mating axial space, making them more advantageous for flat spaces.
CNLINKO LM12 Cable Assembly: Straight and 90° Right-Angle, Catering to All Your Needs
CNLINKO's M12 connector - the LM12 Cable Assembly - comes in both straight and 90° right-angle structural types, offering differentiated solutions to match various user cabling requirements. So how do you choose? CNLINKO offers these handy tips:
Straight & 90° Right-Angle M12 Connector Selection Tips
|
Choose Straight |
Choose 90° Right-Angle |
|
Equipment layout is in a straight-line array |
Mechanical structures with rotating or swinging parts |
|
Connection ports requiring high-frequency mating/disconnecting |
Flattened equipment with height constraints |
|
Equipment or scenarios sensitive to mating cycles |
Cabling needing to avoid equipment sharp edges or heat sources |
Core Advantages of CNLINKO LM12 Cable Assembly Explained
① Industrial-Grade Protection: IP67 Waterproof and Dustproof for assured use;
② High Temp Resistance (-25°C ~ +85°C), Corrosion Resistant, High Flame Retardancy (UL94 V-0), UV Resistant;
③ Tool-Free, One-Piece Molding Technology: Faster on-site cabling, no wiring needed;
④ 6 Socket Types Available: More choices for users;

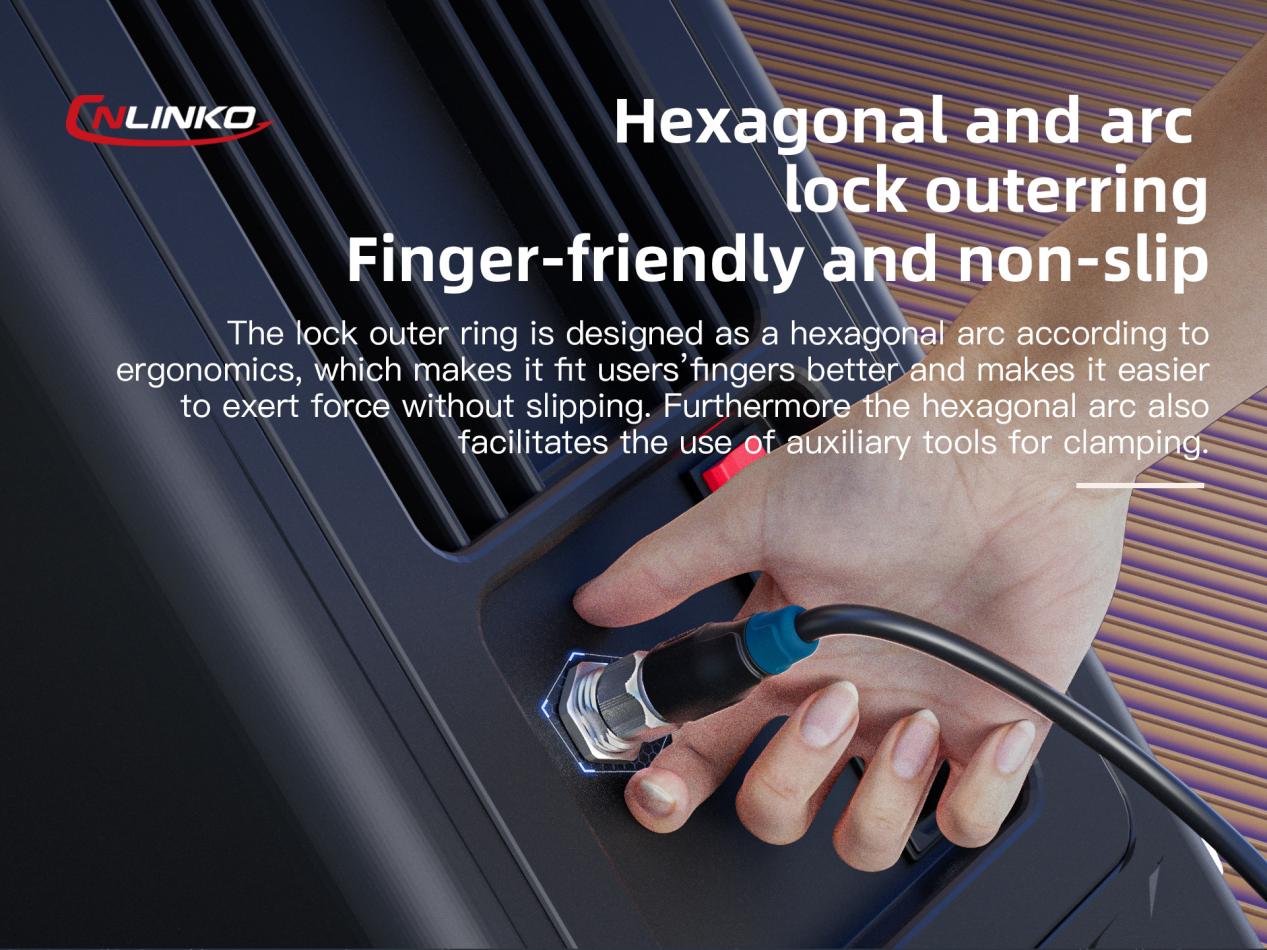

⑤ Hexagonal Arc-Shaped Locking Collar: More ergonomic, slip-resistant grip.
If you also need an industrial-grade, tool-free M12 connector, then CNLINKO's LM12 Cable Assembly is the perfect fit. Feel free to request a free sample from us!
