When people get sick, they might have a "B-ultrasound" to detect internal issues. Similarly, geologists exploring subsurface conditions rely on "geological ultrasound"—pulse seismic source exploration equipment—to create 180° and 3D geological maps.
The Role of Pulse Seismic Source Exploration Equipment
What is pulse seismic source exploration equipment?
This geophysical tool emits sound waves underground; when these waves hit rock interfaces, the echoes are recorded with timing and intensity to "draw" subsurface structures.
Outperforming old methods, pulse seismic sources are now mainstream
- Traditional explosive-based methods: One-time use, destructive, uncontrollable, with high approval and safety risks.
- Pulse seismic sources: Reusable, safe, environmentally friendly, and flexible—now the industry standard.
Key Connector Types for Pulse Seismic Equipment
1.RJ45 Network Interface Connectors
For high-speed data communication and synchronization. Example: Transmitting real-time sensor data from the seismic source to the central control unit.
2.Pin-type Connectors
For energy transmission. Example: Instantly transferring stored capacitor energy to the excitation device.
3.USB Interface Connectors
For local configuration, debugging, and data export. Example: Updating the seismic source's controller firmware.
Requirements for Connectors in Pulse Seismic Equipment
Pulse seismic equipment, used in oil exploration, demands:
- IP68+ Protection: Outdoor use necessitates resistance to rain and humidity.
- Superior Corrosion Resistance: Critical for harsh environments, especially marine or chemical areas.
- Secure Locking Mechanism: Prevents poor contact or loosening due to on-site vibrations, which can cause costly downtime and data loss.
- Excellent Conductivity: Ensures efficient, lossless transmission of electrical energy and control signals.
- Long-term Durability: Equipment must perform reliably in prolonged field use.

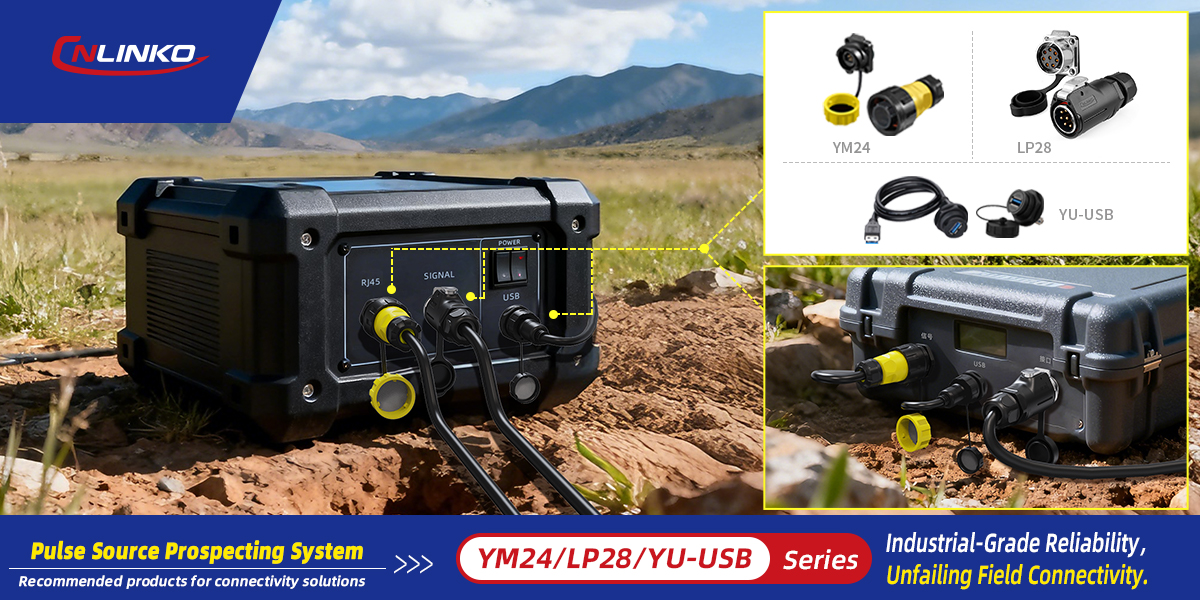

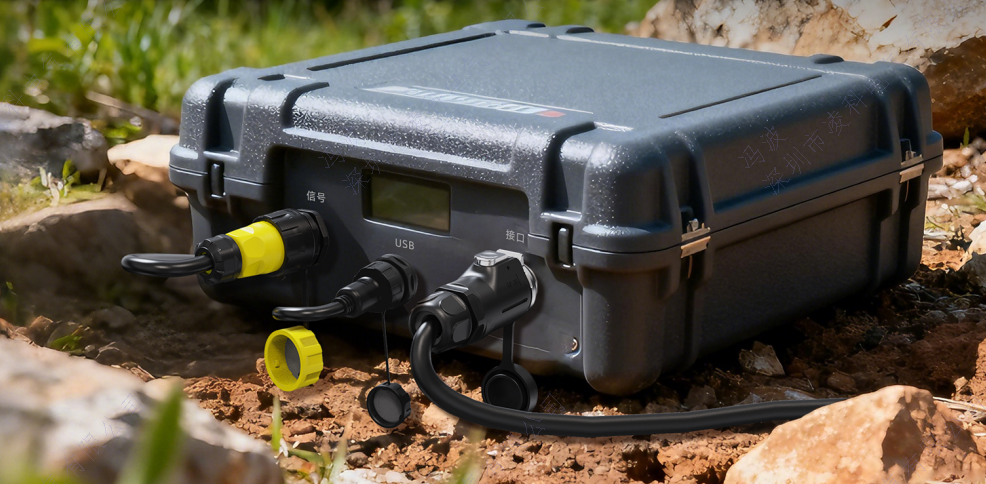

CNLINKO’s Solution for Geological Exploration
- Project: Pulse seismic source equipment

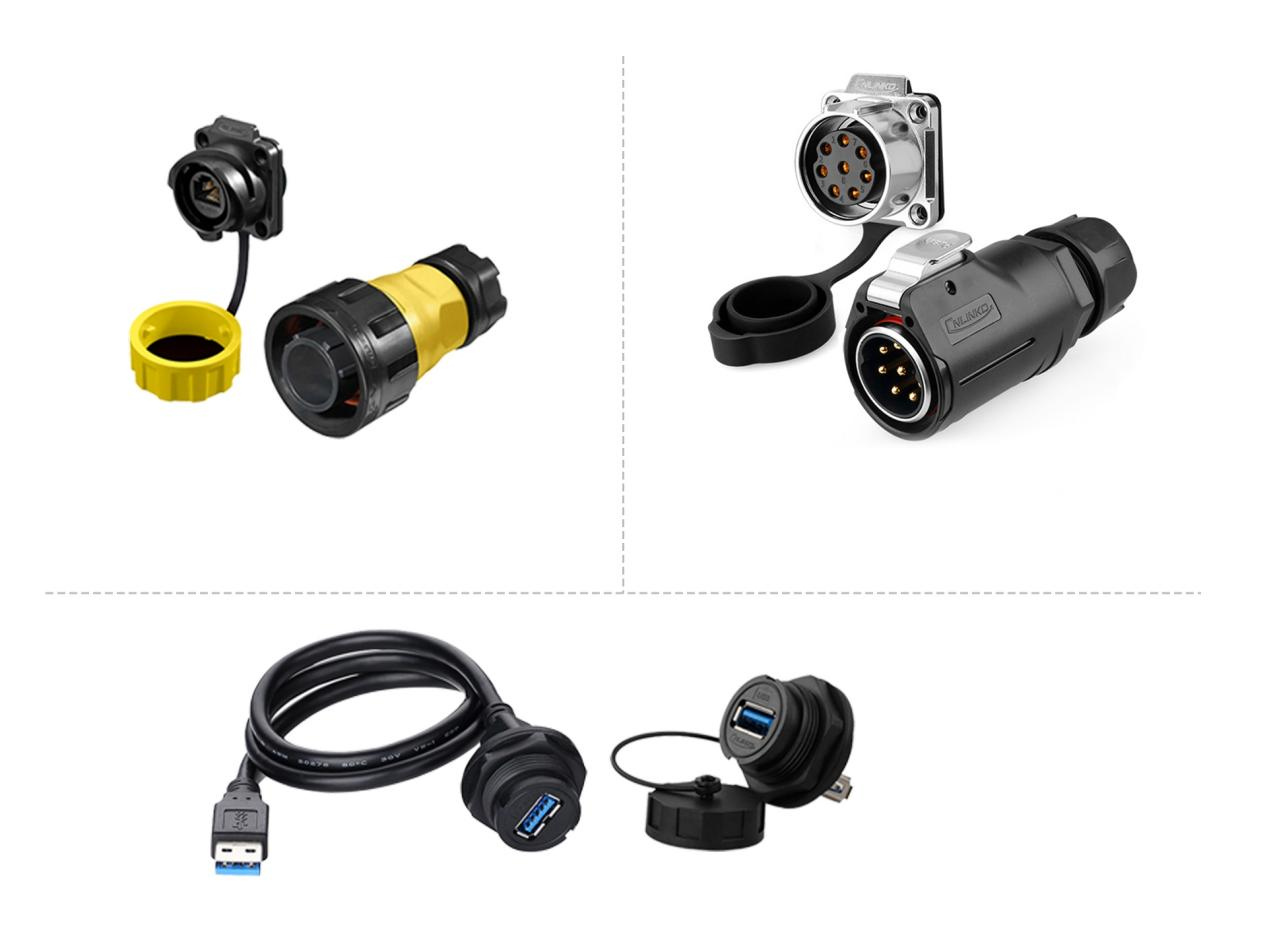

- Products: YM24 Series RJ45 industrial connectors, LP28 Series 8-pin industrial connectors, YM Series USB industrial connectors
- Functions:
1.RJ45 connectors: Data communication and synchronization control
2.8-pin connectors: Electrical energy transmission
3.USB connectors: Local configuration, debugging, and data export
Why Customers Choose CNLINKO
CNLINKO’s YM24 Series RJ45, LP28 Series 8-pin, and YM Series USB industrial waterproof connectors meet electrical and interface requirements while ensuring high reliability and stability in field conditions.
Connector Advantages
1.IP68/IPX9K Waterproof Rating:
Protects against all forms of water intrusion in outdoor settings.
2.Enhanced Corrosion Resistance:
Housings made from Sabic outdoor engineering plastic, with ≥72-hour salt spray resistance for petrochemical environments.
3.Industrial-grade Locking Mechanisms:
CNLINKO's YM series industrial connectors feature a threaded bayonet connection; LP seies use a push-button straight-plug connection; YU series employ an outer sleeve snap-lock connection. All utilize stable industrial-grade locking mechanisms that resist loosening under the vibrational stress of pulse seismic source exploration equipment.
4.Stable Transmission Performance:
High-quality contact materials with plated surfaces ensure reliable electrical transmission for RJ45, pin, and USB interfaces.
5.Industrial-grade Durability:
Manufactured to industrial standards with strict quality control, compliant with UL, TUV, CQC, and RoHS.
CNLINKO specializes in developing high-performance, application-specific industrial connectivity solutions to solve complex electrical connection challenges. Contact us to discuss your needs!
Note: Images of the customer's equipment are available upon request.
In an industry where precision and reliability are non-negotiable, could the right connector be the unsung hero of geological exploration?
