Welding Equipment Connection Solution Background
Welding demands reliable power delivery. CNLINKO DL28 connectors—with high-current capacity, secure locking, IP68/IPX9K protection, and 50% smaller size—are replacing bulky IEC60309 plugs as the superior connection solution.
Why DL28 Excels in Welding Equipment
Versus IEC60309 plugs, CNLINKO DL28 delivers superior connection security, operational safety, and space savings—directly addressing welding equipment challenges.

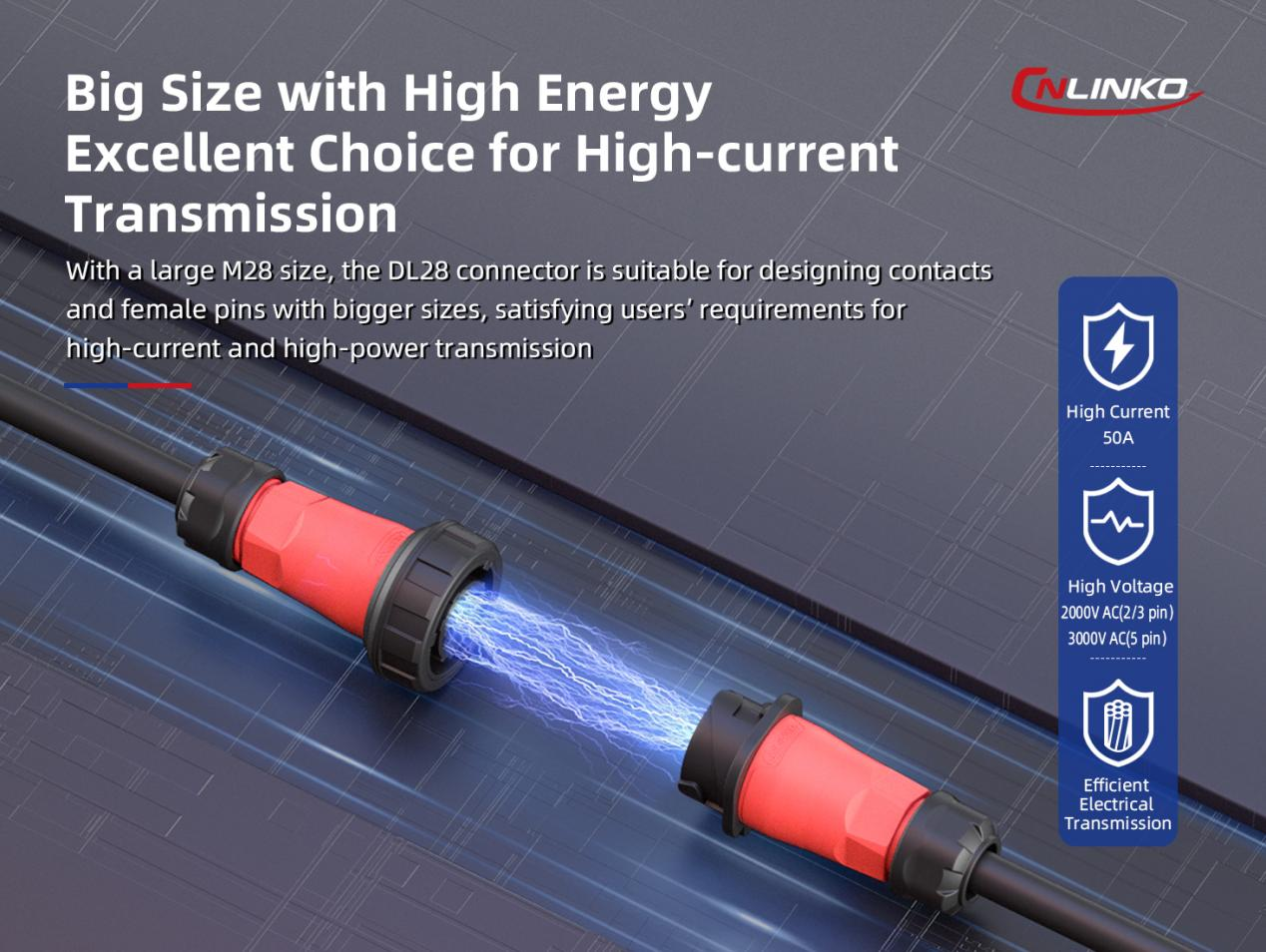

01. 50A+ High-Current Support for Demanding Welding Processes
Welding requires instantaneous high-power transfer. DL28 ensures stability with:
✓ Silver-plated copper alloy contacts
✓ 50A+ continuous current
✓ <30K temperature rise
Eliminating contact melting or arc instability risks.

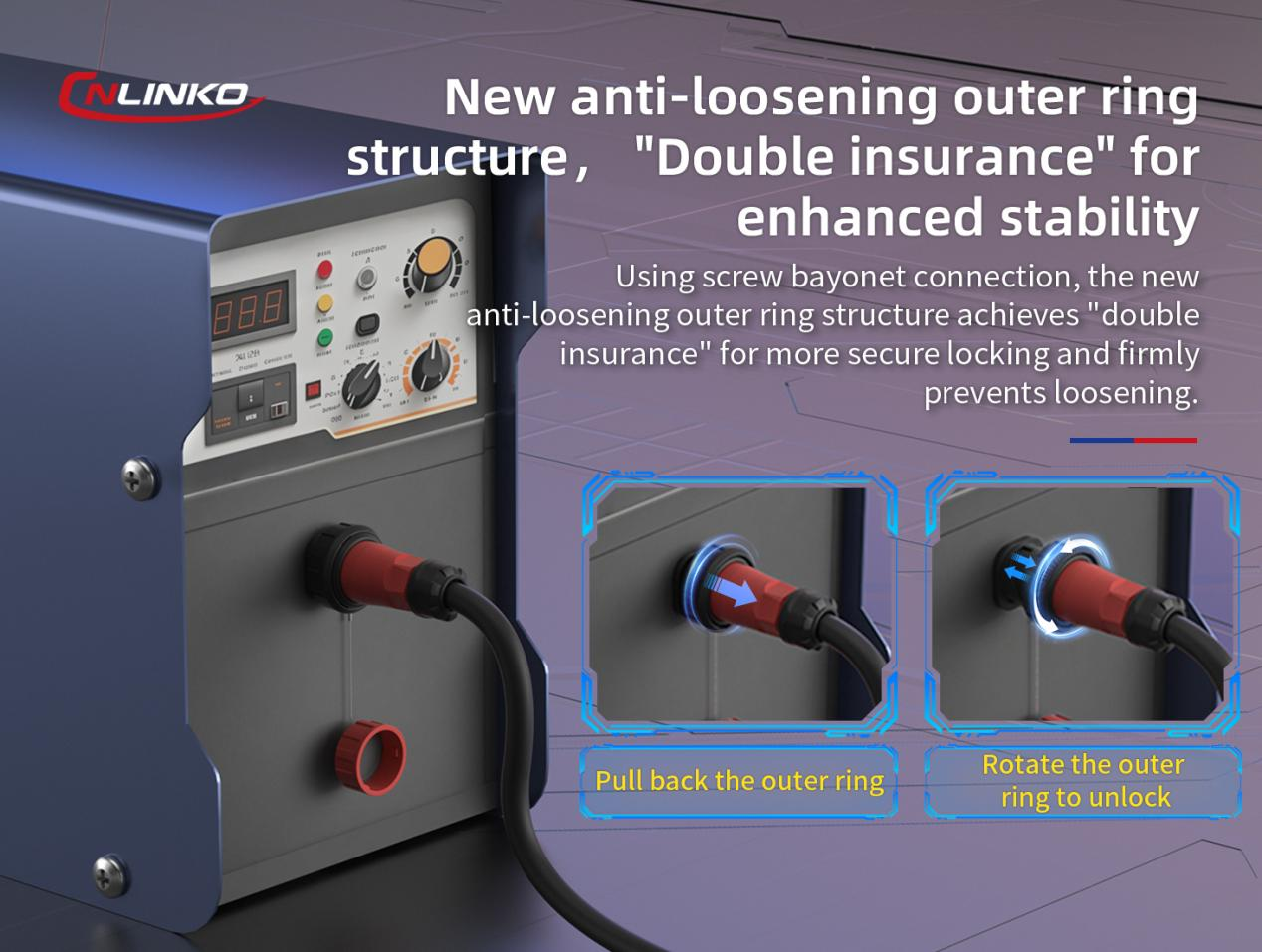

02. Dual-Locking Mechanism: Vibration-Proof Connection Security
Loose connections in high-vibration environments cause arcing. DL28's solution:
✓ Patented spiral bayonet + anti-retreat collar
✓ Mechanical interlock prevents disengagement
✓ Zero contact failure under sustained stress

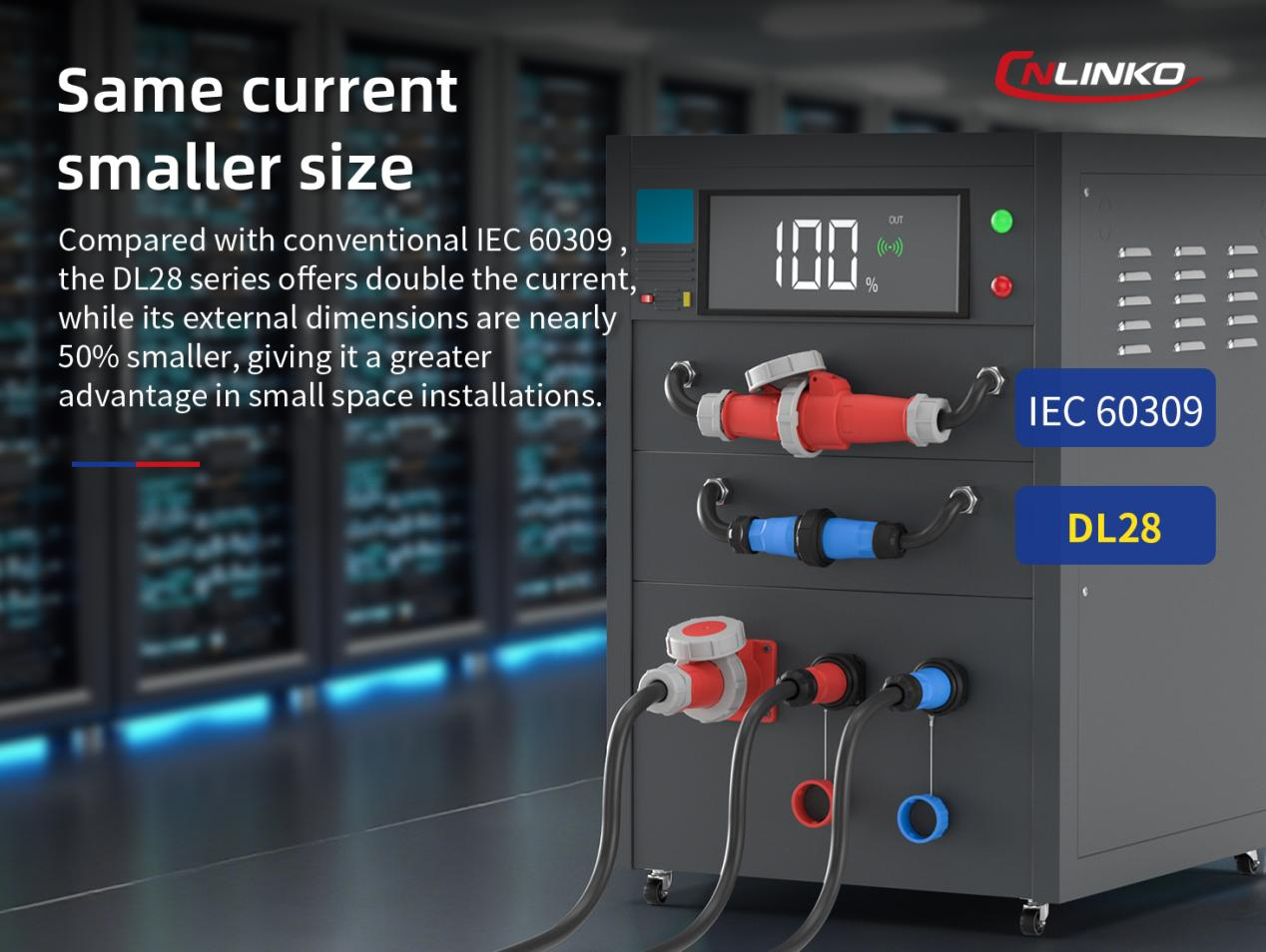

03. 50% Smaller Footprint: Space Optimization Redefined
Modern welding equipment prioritizes compactness. DL28 vs. IEC60309:
✓ Half the size – Eliminates cable twisting hazards
✓ Streamlined profile – Reduces snag risks and visual clutter
✓ Increased workspace efficiency

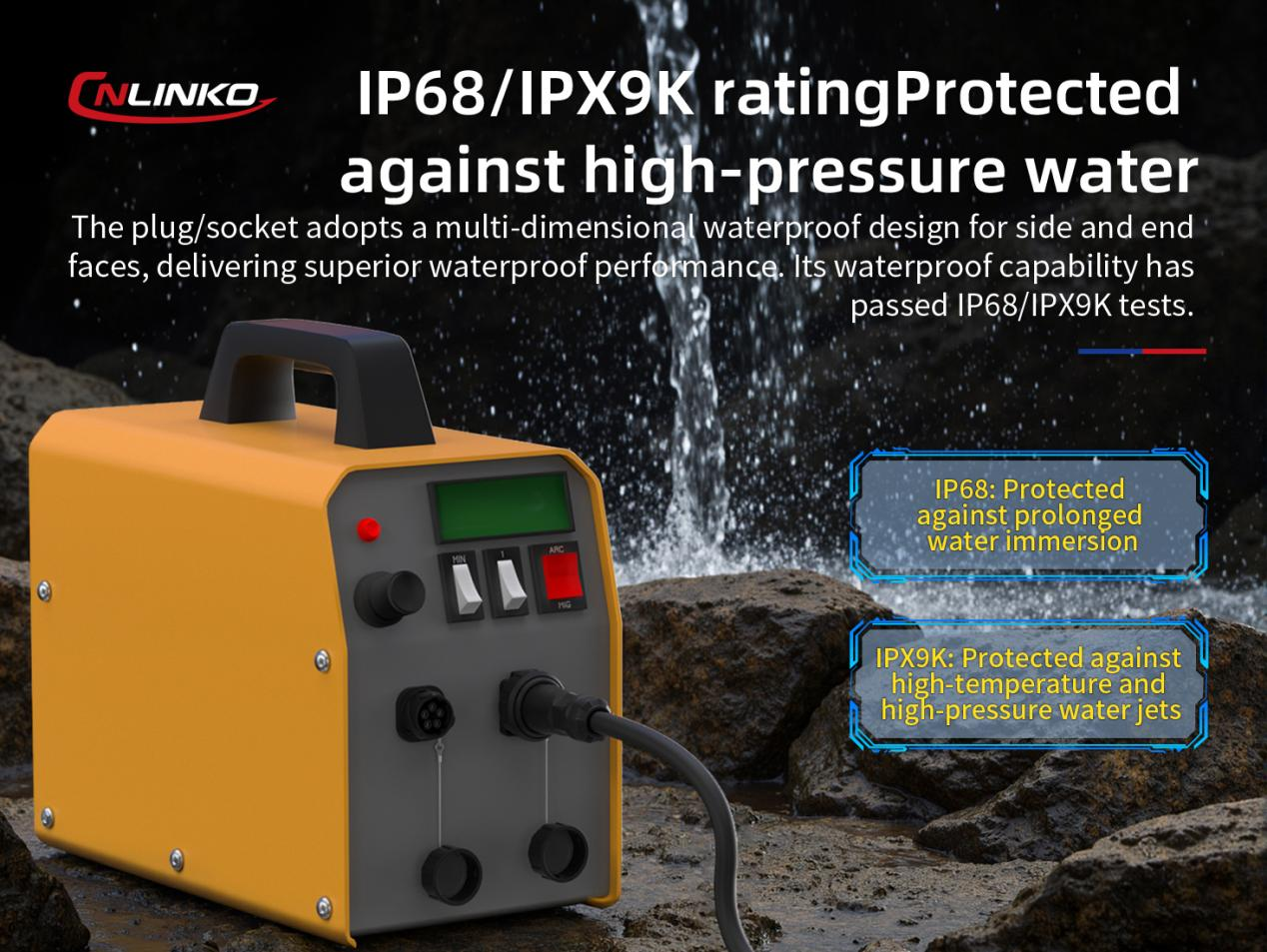

04. IP68/IPX9K: Defeating Slag, Dust & Steam
Welding environments expose connectors to:
✓ Grinding dust
✓ High-pressure slag cleaning
✓ 100°C+ steam DL28 withstands all with:
✓ Axial + radial sealing
✓ IP68 (immersion) + IPX9K (80°C/100 bar jets) certification
05. 120°C Heat Resistance & UL94 V-0 Flame Retardancy
Sparks and ambient heat demand rugged materials:
✓ 120°C continuous operating temperature
✓ UL94 V-0 compliance – Self-extinguishing within 10 seconds
✓ No degradation near arc zones

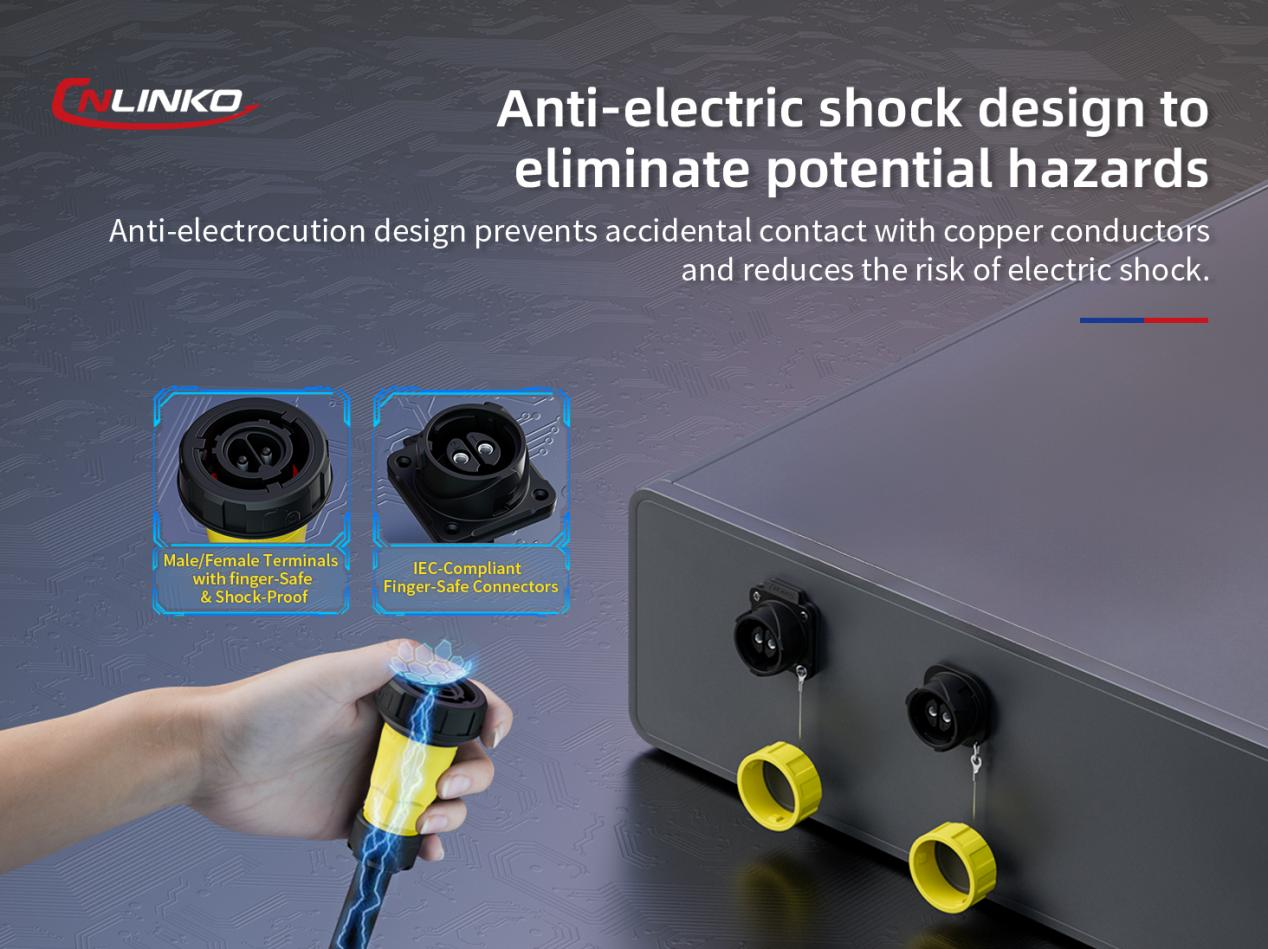

06. Touch-Proof Terminals: Eliminating Live Contact Hazards
Traditional IEC60309 plugs lack finger safety. DL28 prevents accidents via:
✓ Integrated touch-proof shrouds on male/female contacts
✓ IEC-compliant finger testing
✓ Physical barrier against accidental contact
The Verdict: Triple Performance Leap Over IEC60309 CNLINKO
DL28 connectors are transforming welding equipment by delivering:
✓ 50% space savings
✓ 200% greater vibration resistance
✓ Military-grade environmental protection
Proving essential for:
• Stable arc performance
• Operator safety
• Dense equipment layouts
Engineer next-gen welding systems with DL28—where compact design meets uncompromised power integrity.
