"Meticulously Saves Wiring Space" for Fan Heat Sinks
In modern manufacturing, high workshop temperatures and equipment-generated heat are major factors restricting equipment from operating at its full potential. Fan heat sinks play the crucial role of "driving away heat and controlling temperature." So, what are the specific hard requirements for power connectors in fan heat sink applications?
Industrial-Grade Fan Heat Sinks: A Workshop Standard for Heat Management
Industrial-grade fan heat sinks are essential facilities in factories and workshops. They ensure the stability, reliability, and continuous operation of industrial equipment under harsh, high-load conditions through active forced-air cooling.
- Expensive Smart Equipment is "Heat-Sensitive": Prone to Performance Throttling
Many modern industrial devices, especially smart equipment and machine tools, use various CPU, GPU, and other chips in their control systems. These chips are extremely "heat-sensitive." If temperatures get too high, they autonomously throttle their frequency to reduce heat generation, resulting in slower computation, system lag, and decreased production precision. Industrial-grade fan heat sinks maintain chip temperatures within safe thresholds through effective cooling.
2、Electronic Components Have "Reduced Lifespan": Cannot Withstand Long-Term High Temperatures
Even industrial-grade electronic components within equipment can suffer shortened lifespans under prolonged high-temperature environments. After a certain period of use, equipment may frequently experience crashes, reboots, and unexpected downtime. Utilizing industrial-grade fan heat sinks for cooling can significantly extend equipment service life and reduce downtime for repairs.
3、Fan Heat Sinks "Show Their Prowess": Industrial Connectors are Essential
To perform reliably in complex workshop environments, industrial-grade fan heat sinks naturally feature hardware designed with industrial-grade robustness. However, when considering the overall performance of the heat sink, the accompanying power connector must not be an "under-spec" component, as this could undermine the entire system's effectiveness. Therefore, selecting higher-performance and more reliable industrial-grade power connectors is an industry consensus.
What are the Requirements for Power Connectors in Fan Heat Sinks?
Fan heat sinks face numerous challenges in complex industrial applications. To ensure reliable power transmission, they impose multiple requirements on power connectors, as detailed below:
- Capable of Stable High-Current Transmission
Industrial-grade fan heat sinks typically have higher power demands, requiring substantial current input. The power connectors used must support continuous, stable high-current connection with minimal heat generation and acceptable temperature rise.
2、Tolerance for Harsh Environments & Protective Performance
Waterproof industrial connectors for fan heat sinks require excellent environmental performance: 1) High-temperature tolerance to ensure stable heat sink operation; 2) Resistance to corrosive environments like coolants and cutting fluids; 3) Most importantly, an IP65 or higher protection rating to withstand potential liquid and dust ingress in workshop environments.
3、Durability and Ease of Maintenance
Industrial connectors need to support a high mating cycle life to meet frequent connection/disconnection demands. They must also allow for quick mating/unmating to significantly reduce downtime and improve maintenance efficiency.
4、Compact Wiring is a "Significant Plus"
Workshop layouts for various equipment are often very tight, requiring waterproof connectors and their wiring to occupy minimal space. This maximizes available space for personnel movement or material handling equipment.

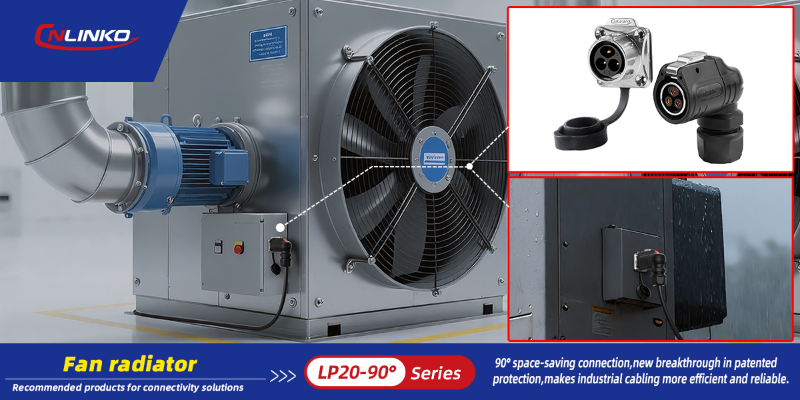

CNLINKO LP20 Series 90° Industrial Connector Meets Fan Heat Sink Electrical Connectivity Needs
The CNLINKO LP20 Series 90° Industrial 3-pin Power Connector combines performance and structural/space advantages, making it highly suitable for the power transmission requirements of fan heat sinks. Its excellent performance is demonstrated in the following areas:

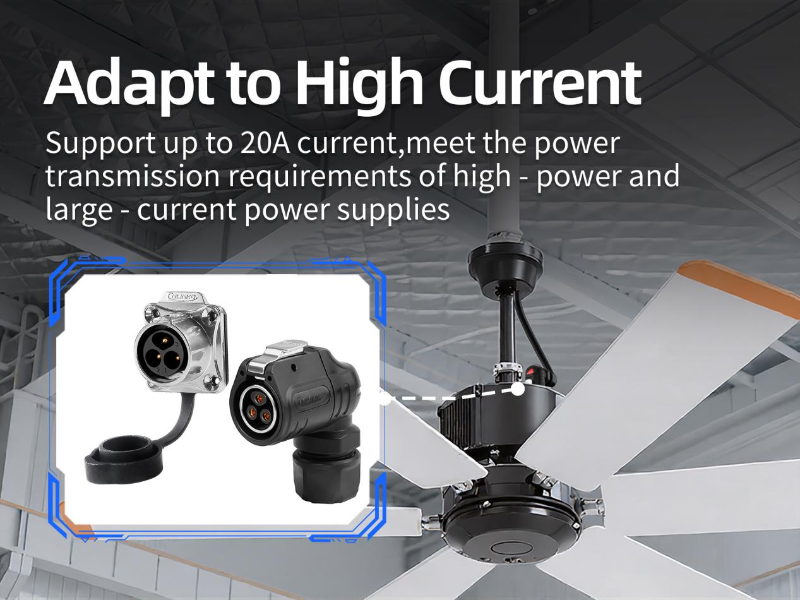

1、High-Current Transmission for Robust Power
Fan heat sinks are high-power devices requiring connectors that support high-current transmission.
The LP20 Series 90° industrial connector (3-pin) in this solution supports up to 20A current transmission, meeting the high-power, high-current requirements for powering fan heat sinks.

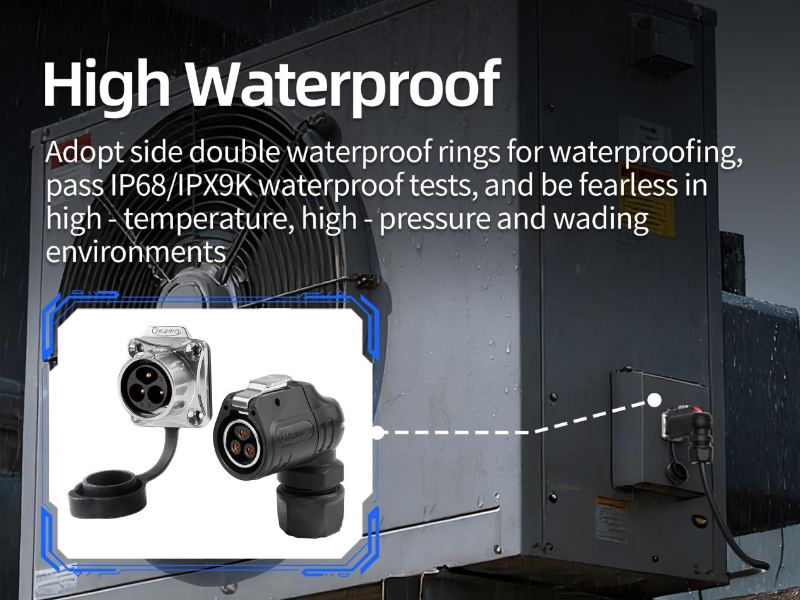

2、High-Level Protection Rating, Unfazed by Harsh Environments
Fan heat sinks operate in relatively harsh industrial environments with a high probability of exposure to water, dust, high ambient temperatures, and corrosive elements.
The CNLINKO LP20 Series 90° industrial connector is tested to IP68/IPX9K ratings, reliably handling scenarios from prolonged immersion to high-temperature, high-pressure water jets. It features a wide operating temperature range of -40°C to +120°C and passes salt spray testing for ≥72 hours. These superior properties ensure the connector provides stable power to the fan heat sink in complex environments.

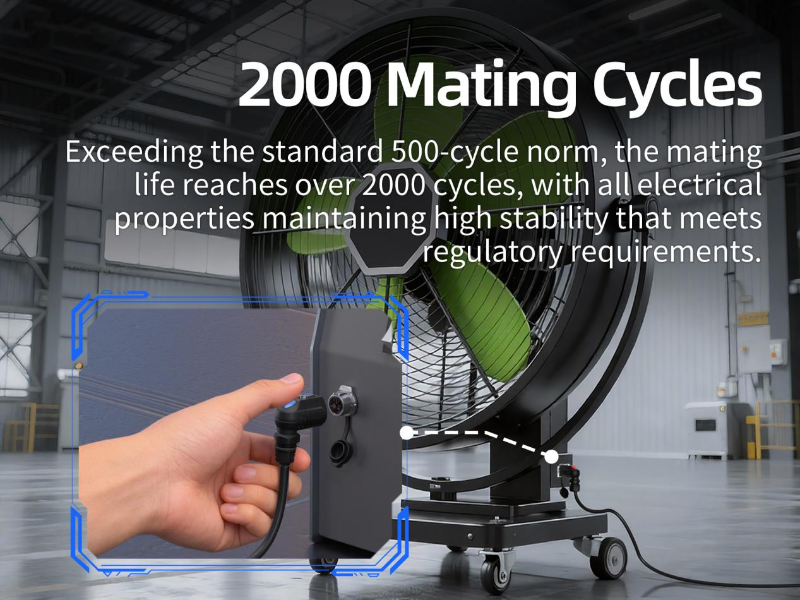

3、≥2000 Mating Cycles, Maintaining Performance Over Long-Term Use
With daily power-on/off cycles for fan heat sinks, the power connectors undergo corresponding connection/disconnection, demanding high reliability for frequent use.
The CNLINKO LP20 Series 90° industrial connector boasts a mating cycle life exceeding 2000 cycles, far above the industry's conventional 500-cycle standard. This ensures a longer service life, making it suitable for high-frequency mating scenarios like fan heat sinks. Additionally, its push-pull bayonet mating mechanism facilitates quick and efficient operation.

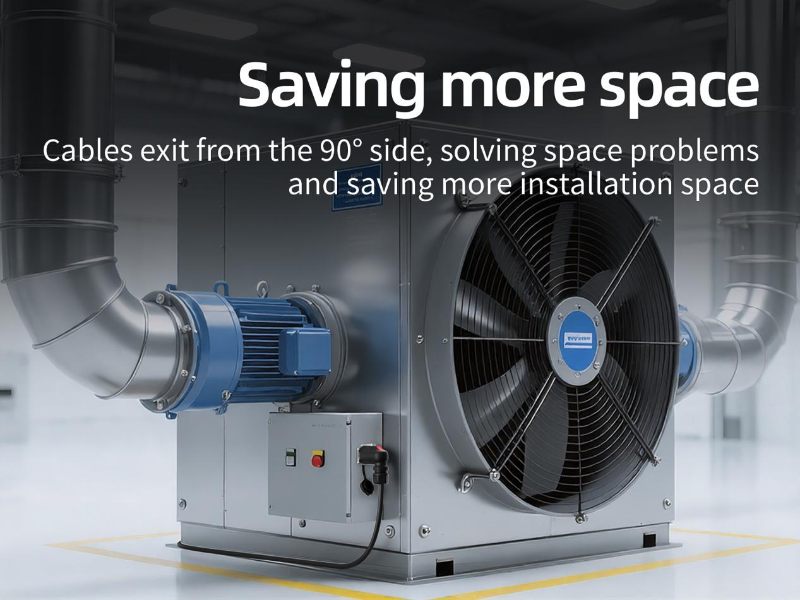

4、90° Structural Design Saves Installation Space
Industrial workshops and similar settings generally demand high space utilization, requiring both equipment and components to be compact and not occupy excessive valuable space.
This LP20 Series 90° industrial connector features a vertical structural form. Compared to 180° connectors, its cable exit occupies less external installation space on the fan heat sink, effectively conserving valuable external routing space. It also prevents potential cable damage caused by direct sharp bending during wiring.
A 90° industrial-grade connector that balances compact space requirements with connection reliability has long been a product highly anticipated by the market. The release of this CNLINKO 90° industrial connector will bring new choices and solutions.
