Machine tools are the cornerstone of manufacturing, and laser cutting machines stand out as leaders among new-generation machining tools. Industrial-grade connectors, serving as critical components of these machines, are recognized as the unseen force ensuring cutting stability and quality.
Why Are Laser Cutting Machines So Popular?
As highly efficient cutting equipment distinct from traditional methods, laser cutting machines offer significant advantages.
- Superior Cut Quality: High-quality cuts with minimal burrs, reduced heat-affected zones that preserve material strength, and excellent capability for intricate, irregular shapes.
- Higher Cutting Efficiency: Faster cutting speeds compared to methods like flame cutting. No physical tools or dies are required, simplifying the process.
- Enhanced Intelligence & Convenience: Intelligent nesting software maximizes material utilization and efficiency, while minimizing human error for consistent, high-quality output.
Industrial-Grade Connectors Are a Core Concern for Laser Cutters

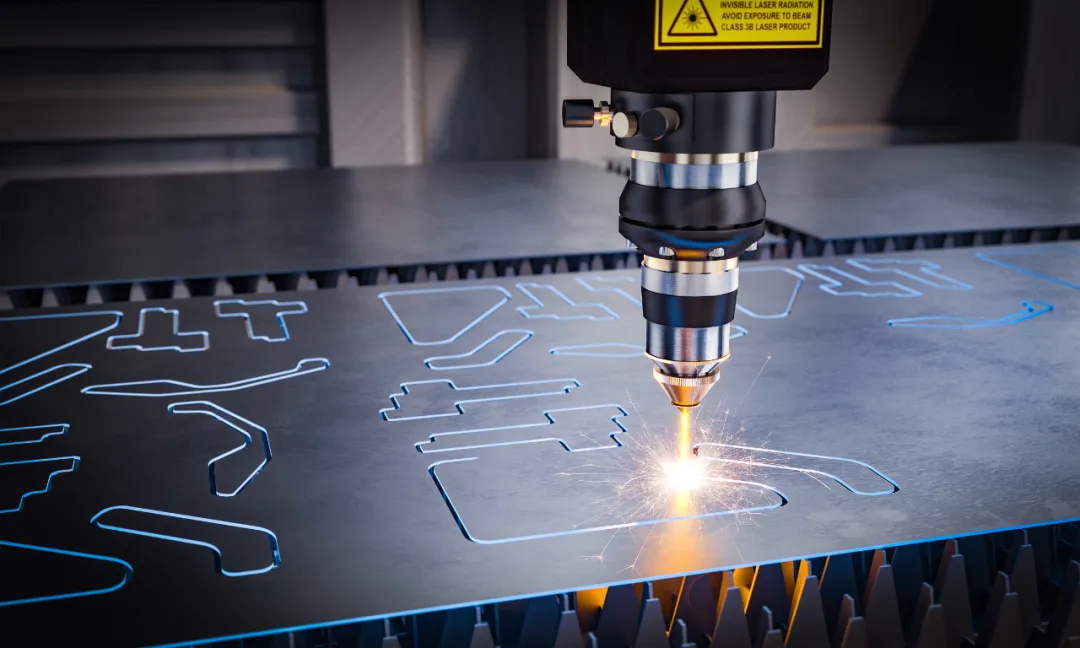

01. A Broad Market for Laser Cutting Machines
Industry reports forecast the global industrial laser equipment market to reach tens of billions of US dollars by 2030, with laser cutters holding the largest share at approximately 40%. The outlook for this sector is highly promising.
02. Connectors are a Critical Component
The laser source is the heart of the machine. A consistent, stable laser beam depends not only on the laser source itself but also on a stable, high-power electrical input, where reliable connectors play a vital role. High-current, highly reliable, high-protection industrial connectors have become a core configuration on laser sources. They are a key factor in ensuring the long-term, reliable operation of laser cutters in demanding environments. This is now an industry consensus and represents the primary demand from laser cutting equipment.
Why Such Stringent Requirements for Industrial Connectors?
As essential equipment for sheet metal and automotive body component processing, laser cutters face complex workshop environments and harsh operating conditions during cutting, demanding more from their connectors.
01. High Ingress Protection (IP) Rating is Essential
Coolants, water, metal dust, and powders are commonplace in workshops. Connectors require a high IP rating to safeguard their internal components.
02. High-Temperature Resistance & Flame Retardancy
The cutting process generates significant heat, raising ambient temperatures. Flying sparks may also contact the connector. Connectors made from high-temperature-resistant and flame-retardant materials are therefore safer.
03. High Current-Carrying Capacity
High-power laser generation requires substantial current input. Connectors that offer high current capacity with low temperature rise, in a compact form factor, are ideal.
04. Secure Mating Locking Mechanism
Connectors must ensure the plug and socket remain firmly mated under severe vibration, shock, or during extended operation—a fundamental requirement for electrical reliability and safety.
05. Finger-Safe Design (Anti-Touch)
For equipment carrying high currents, a physical anti-touch design on both plug and socket is crucial for operator safety during maintenance and troubleshooting.

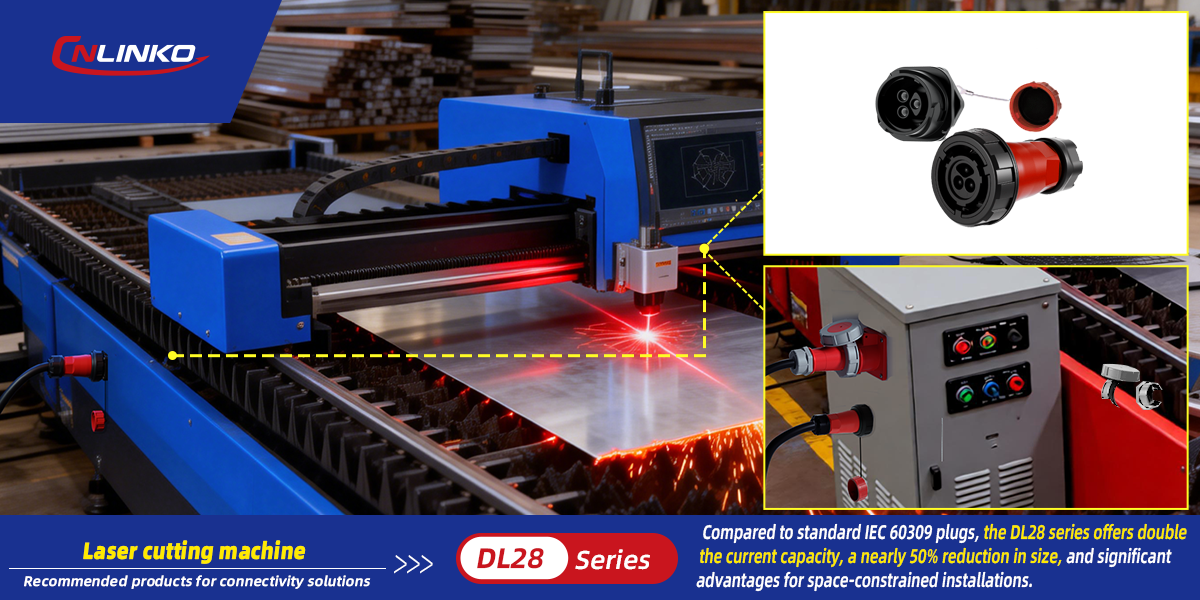

The CNLINKO DL28 Connector Meets Laser Cutter Demands
CNLINKO's flagship DL28 Series Industrial High-Current Connector, certified by TUV and CE for greater assurance, is now successfully applied in laser cutting machines, meeting stringent field technical requirements.

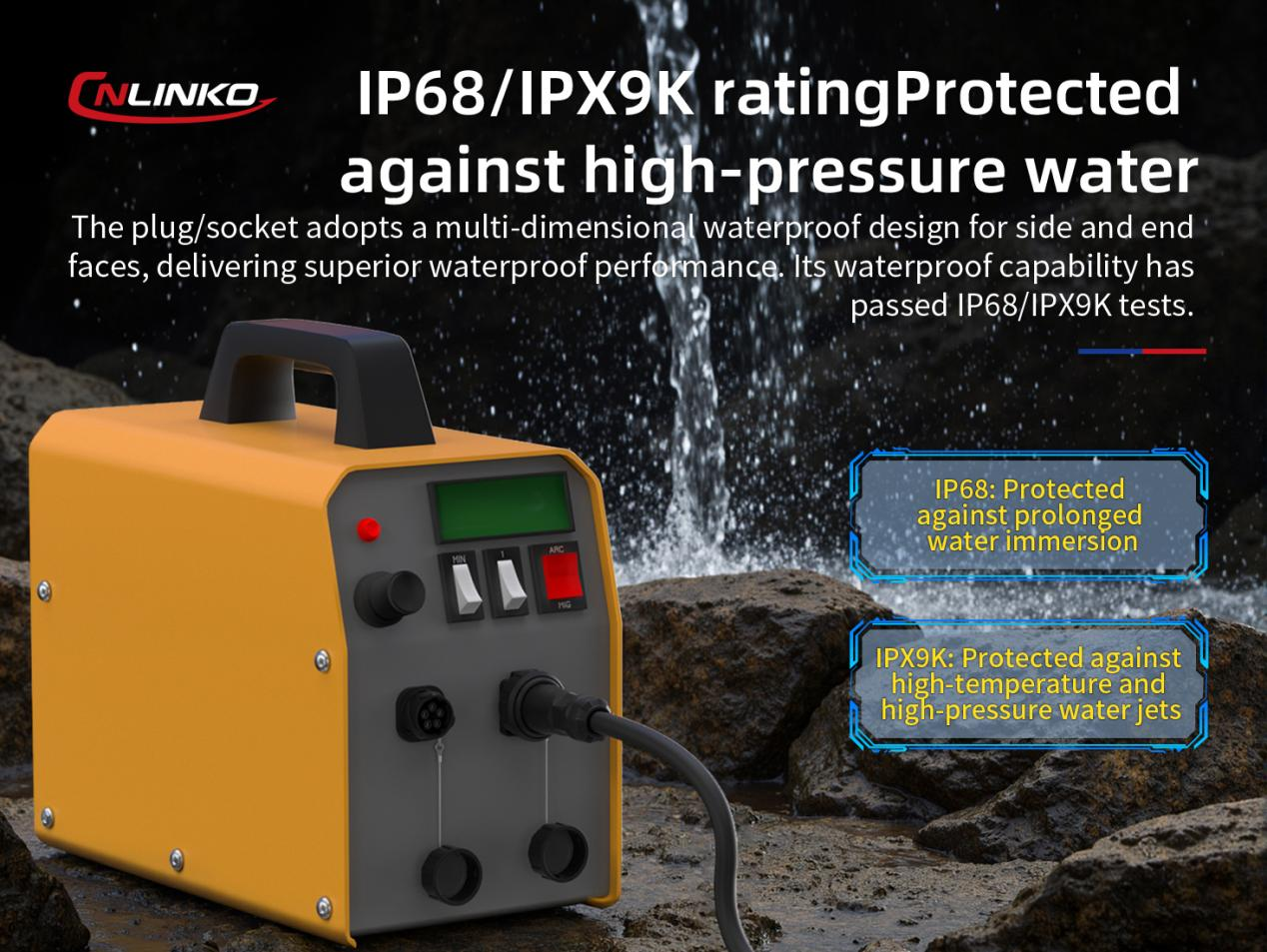

- IP68/IP69K Protection: Defying On-Site Fluid Risks
The DL28 Series passes both IP68 (dust-tight, protected against prolonged immersion) and IP69K (protected against high-pressure, high-temperature water jets) tests. This protects against splashes and enables reliable performance even during equipment washdowns or in harsh conditions.

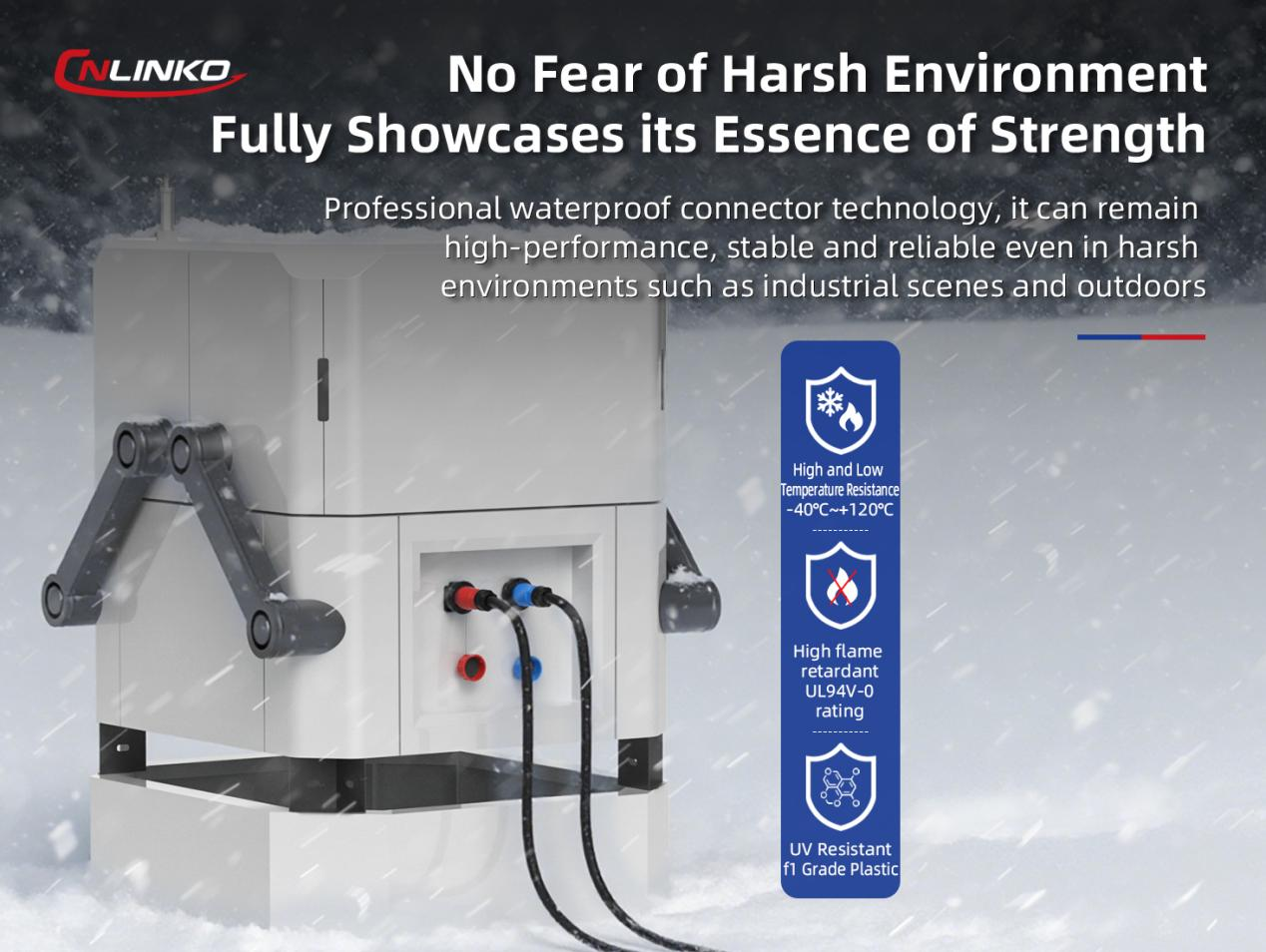

- Superior High-Temp & Flame Retardancy for Safer Operation
The connector housing utilizes high-performance, flame-retardant SABIC® engineering plastic. It offers excellent high-temperature resistance (up to 120°C) and meets the UL94 V-0 flame retardancy standard. This provides an active fire barrier, preventing deformation or ignition under thermal stress.

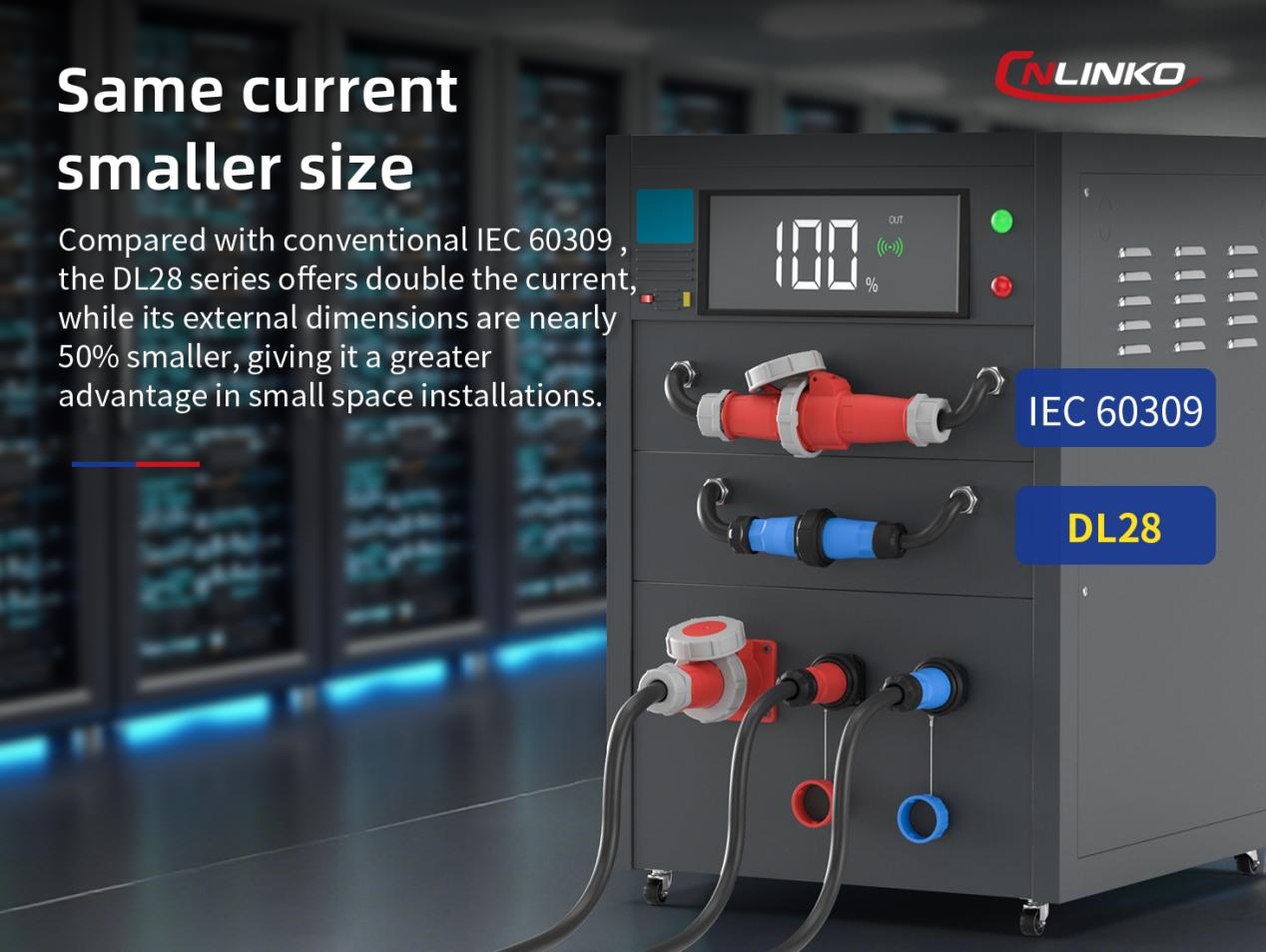

- A New Paradigm: High Current in a Compact Size
The DL28 Series delivers the power required by laser cutters while solving space constraints. Compared to a traditional IEC 60309 plug, it is nearly 50% smaller in size while offering double the current-carrying capacity—a remarkably compact high-power solution.

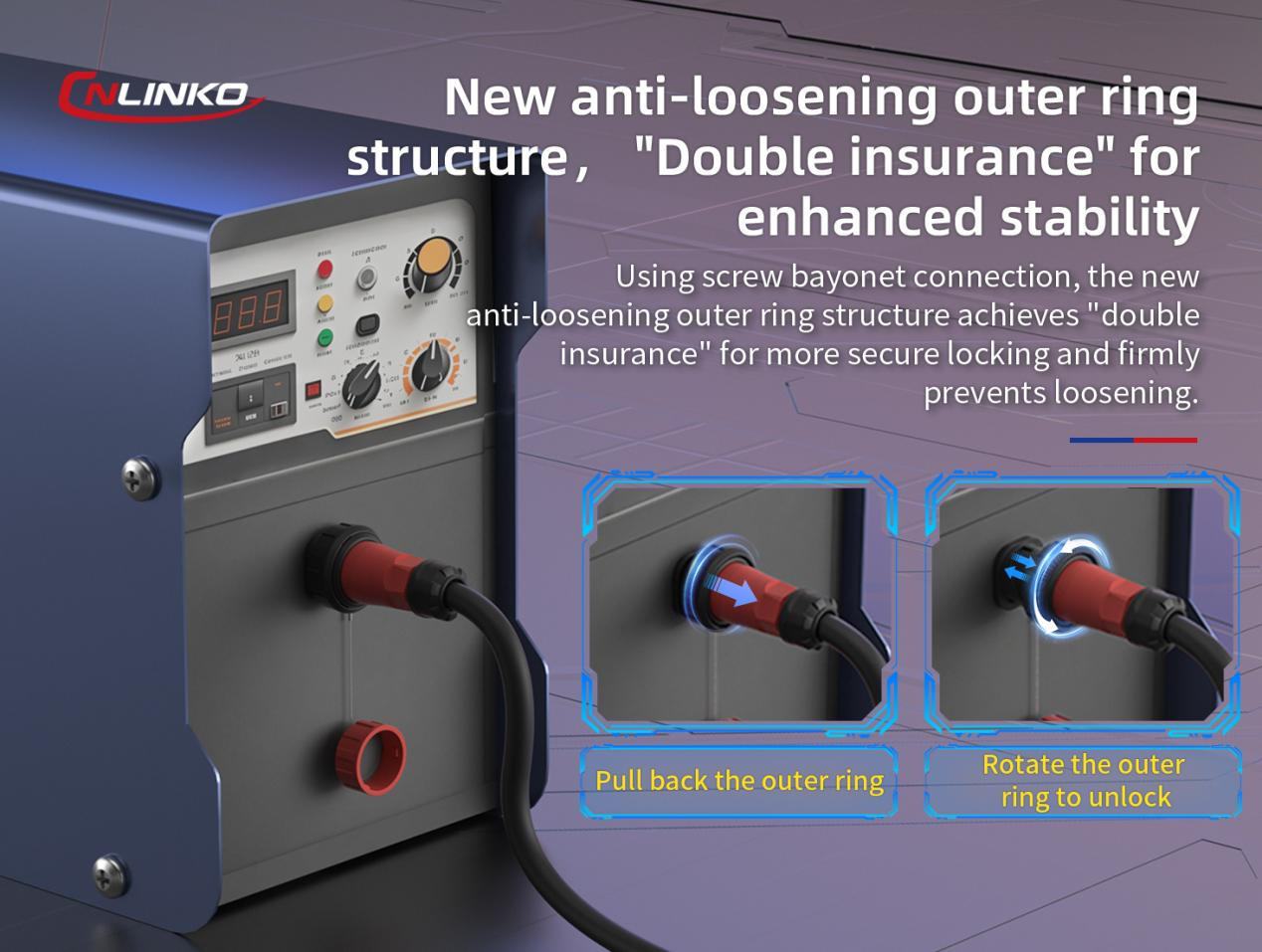

- "Dual-Lock" Design for Doubly Secure Connections
Featuring a proprietary "Bayonet Screw + Anti-Rotation Outer Ring" dual mechanical locking system, its vibration resistance far surpasses single-latch designs. This ensures connections remain rock-solid during operation, preventing downtime or electrical faults from accidental disconnection.

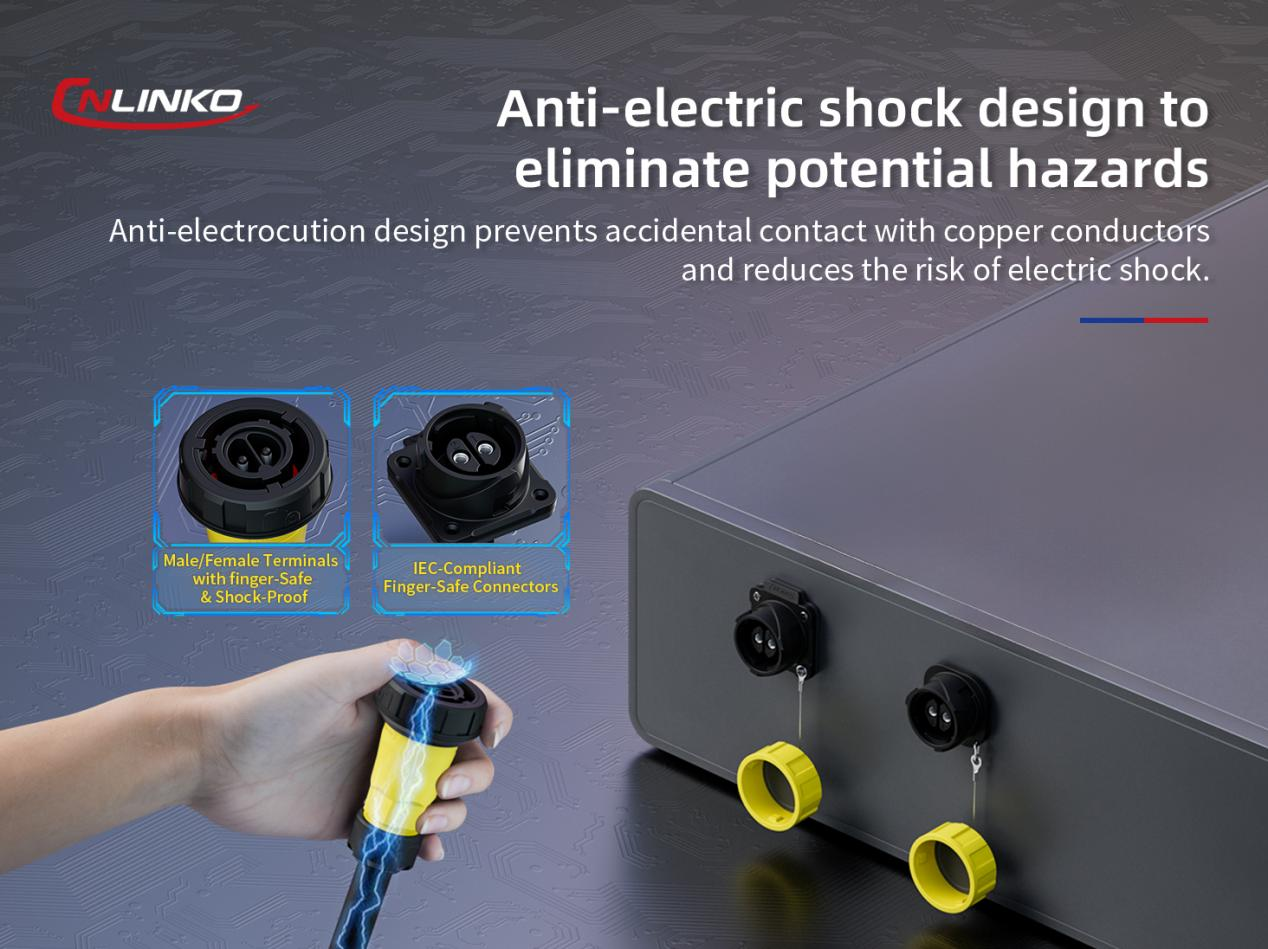

- Finger-Safe Design, Prioritizing Safety
Both plug and socket incorporate physical finger-safe, anti-touch structures that prevent accidental contact with live terminals, validated by relevant safety tests. This provides enhanced protection for personnel during on-site debugging, maintenance, and troubleshooting.
Of course, the CNLINKO DL28 Series Industrial High-Current Connector is favored not only in laser equipment but across numerous other fields. If you're interested, contact us for a free trial unit!
