Targeting Outdoor Space Constraints: LP12 Series 90° Connector Emerges as Preferred Choice for PV Inverters
Background
Driven by the "Dual Carbon" goals and increasing PV installations, demand for photovoltaic inverters continues to rise. To ensure reliable current conversion and electrical connections, industrial waterproof connectors with high protection, extreme temperature resistance, and space-saving design have become critical safeguards for PV systems.
LP12 Series 90° Waterproof Connector for PV Inverters
In solar PV systems, inverters convert DC electricity from solar panels into stable AC power for homes or grids. Connectors transmit power between panels, inverters, and grids/loads. CNLINKO's LP12 Series 90° industrial connector—featuring space-efficient design, IP68/IPX9K waterproofing, and quick installation—is gaining recognition in PV applications.

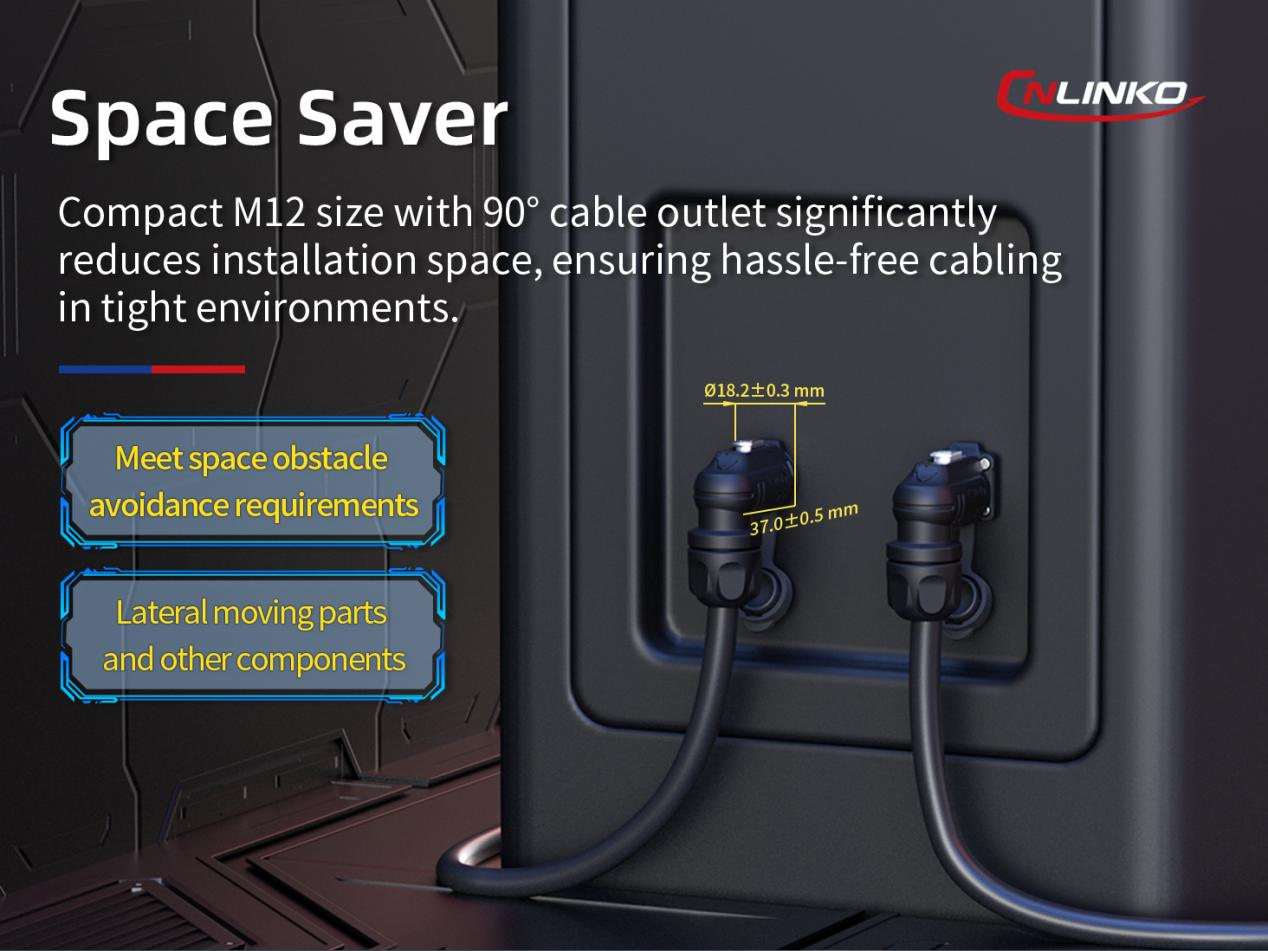

1. Space Efficiency: Optimizing Inverter Layout
① The M12 miniature size + 90° vertical orientation minimizes installation space, enabling compact inverter layouts.
② 90° elbow routing prevents internal wire damage from over-bending, enhancing durability.

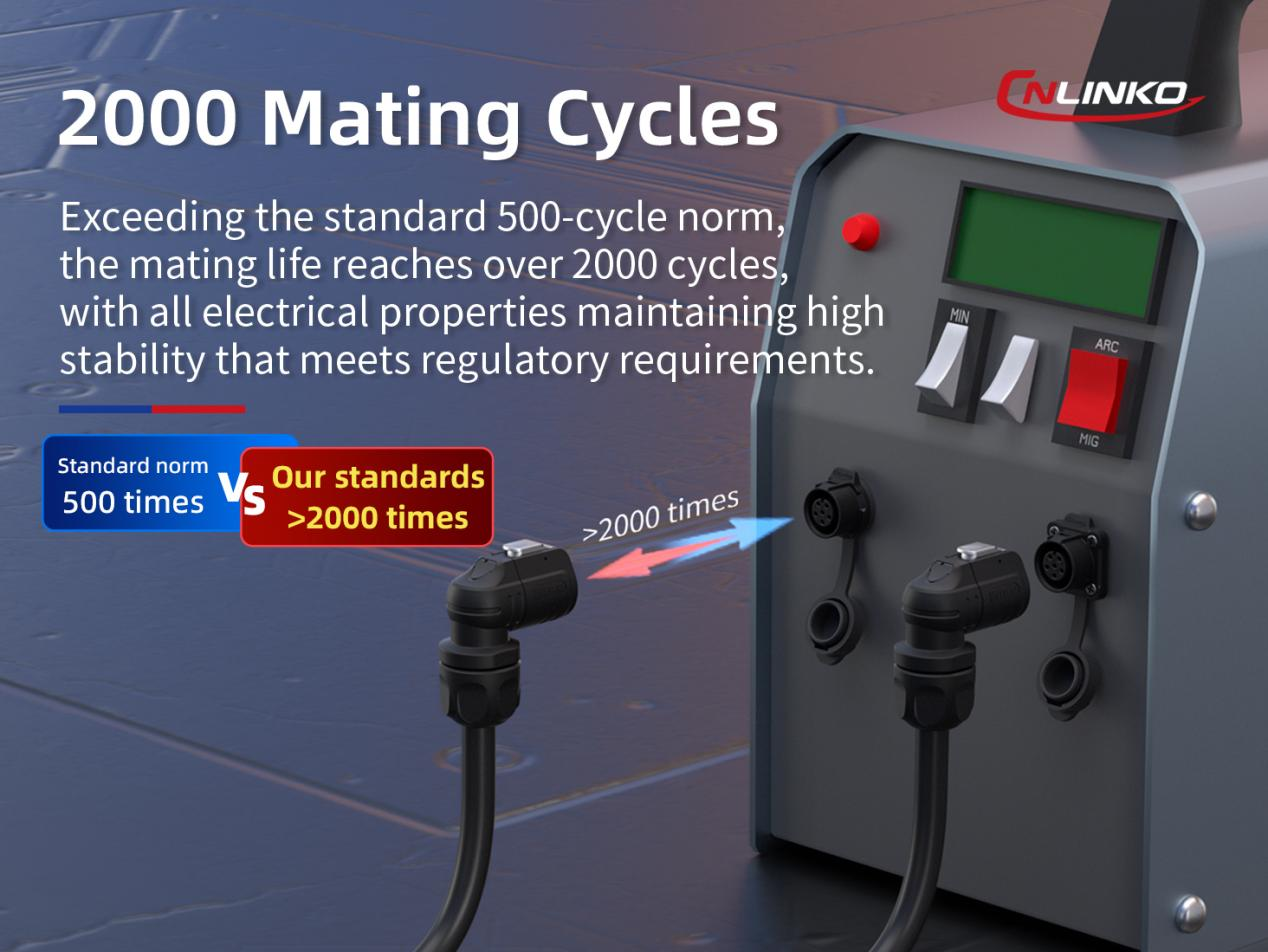

2. 2000+ Mating Cycles: Longevity Redefined
① >2000 mating cycles (pin contact version) exceed industry standards, covering all maintenance needs throughout the inverter lifecycle.
② Stable ultra-low contact resistance (<3.0mΩ) and <30K temperature rise minimize conduction losses even after repeated use.
3. Defying Harsh PV Environments

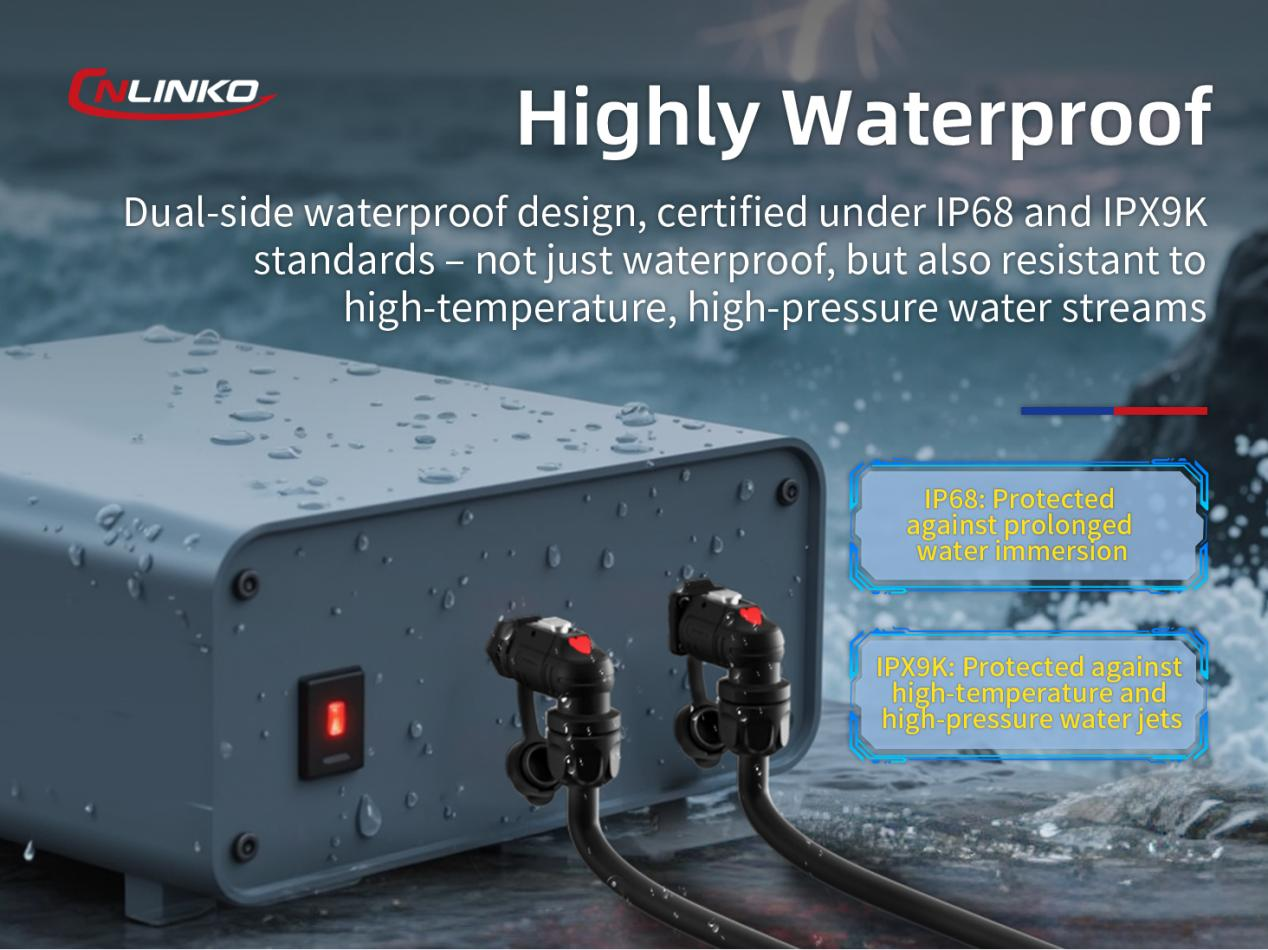

① IP68/IPX9K waterproofing: Resists rainstorms and condensation, ensuring DC high-voltage insulation safety.
② -40℃ to +120℃ operating range: Withstands extreme heat (cabinet temps >70°C) and arctic cold-start challenges.
③ Superior corrosion resistance: SABIC engineered plastics combat coastal salt spray and industrial pollutants.
4. Patented Innovation: Value-Added Assurance
CNLINKO's 90° industrial waterproof connector holds multiple global design and utility patents, delivering:
①Enhanced electrical connection reliability for PV inverters
② Competitive technical advantages and product premium potential
Conclusion: Exceeding Expectations for PV Connections
As solar energy becomes a major renewable energy source, inverters—as core components—face unprecedented reliability demands. Industrial connectors directly impact power plant ROI and system safety.
CNLINKO LP12 Series 90° connectors have been deployed in domestic and international PV plants, solving critical challenges: ✅ Space conflicts in compact wiring ✅ Outdoor environmental extremes ✅ Long-term durability requirements —consistently delivering exceptional field performance.
