Background：
The very fact that outdoor energy storage equipment is deployed outdoors year-round dictates high requirements and a high standard for its supporting connectors. How to solve the connection challenges of outdoor energy storage? How to overcome the limitation of conventional waterproof connectors that cannot prevent gas leakage? This hermetic connector is sure to open up new possibilities for you.
What are the Essential Requirements for Connectors in Outdoor Energy Storage Systems?
Outdoor energy storage systems and equipment are constantly exposed to harsh outdoor environments, placing strict technical demands on the connectors used:
High Waterproof Performance: Must withstand extreme liquid incursions like heavy rain, ensuring internal dryness.
Adequate Hermetic Performance: Block the permeation of gaseous moisture, etc., eliminating the risk of condensation due to temperature differentials.
High and Low Temperature Resistance: Adapt to challenges posed by regional and seasonal temperature variations.
UV Resistance: Prevent plastic embrittlement caused by long-term UV exposure.
Flame Retardancy: Meet the critical safety need for unattended operation.
Corrosion Resistance: Especially in coastal or industrial areas where salt spray corrosion rates are higher, this is a standard requirement.
Easy Operation Design: Facilitate on-site installation, deployment, and subsequent equipment maintenance.
Five Key Features of the LP20 Hermetic Connector Addressing Outdoor Energy Storage Pain Points
The CNLINKO LP20 Hermetic Connector is already deployed in customer outdoor energy storage equipment, demonstrating a high degree of compatibility. Here's a detailed analysis:

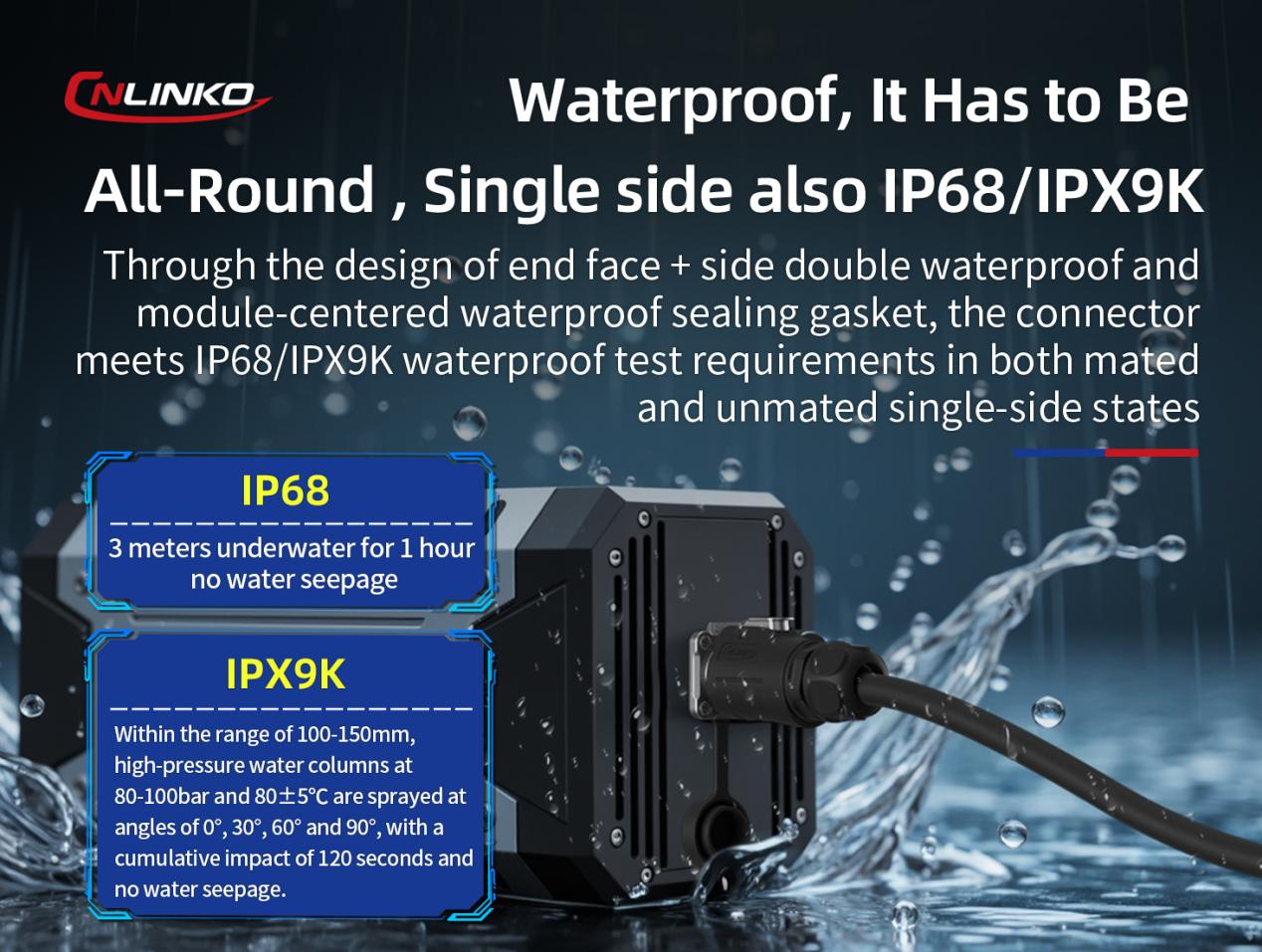

01. Flagship-Grade Waterproof Performance, Unshakable for Outdoor Deployment
Outdoor energy storage equipment deployed year-round in outdoor settings subjects its connectors to various liquid exposures, particularly from heavy rainfall.
This CNLINKO hermetic connector is a truly versatile waterproof connector. It boasts IP68 and IPX9K protection ratings in both the mated state and the unmated state (for the socket with protective cap), reliably resisting water intrusion risks of varying degrees.

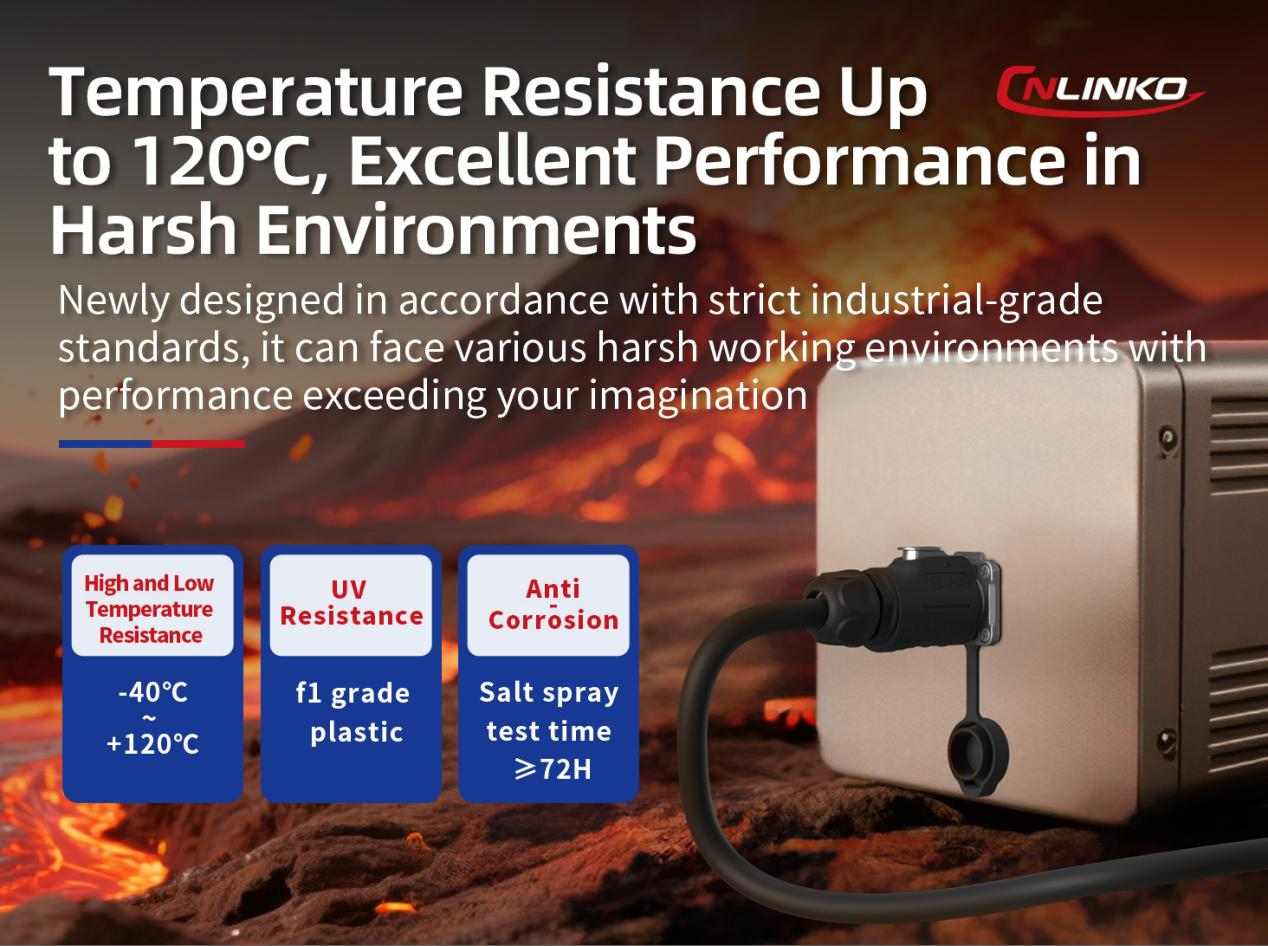

02. Unharmed by Multiple Assaults from Various Harsh Outdoor Environments
Extreme outdoor high and low temperatures can cause connector structural deformation; outdoor UV radiation is intense, especially in summer; particles in the air often contain corrosive elements, with salt spray corrosion being more pronounced in coastal or industrial areas.
LP20 Hermetic Connector Environmental Performance
|
Environmental Challenge |
Solution |
Technical Validation |
|
Extreme Temperature Variations |
Wide-Temperature-Range Structural Materials |
-40°C to +120°C Cycle Testing |
|
UV Radiation |
f1-Rated UV-Resistant Engineering Plastic |
Long-Term Outdoor Light Exposure & Anti-Aging |
|
Salt Spray Corrosion |
All-Plastic Main Housing + Sealing Barrier |
≥72 Hours Salt Spray Test, No Corrosion |

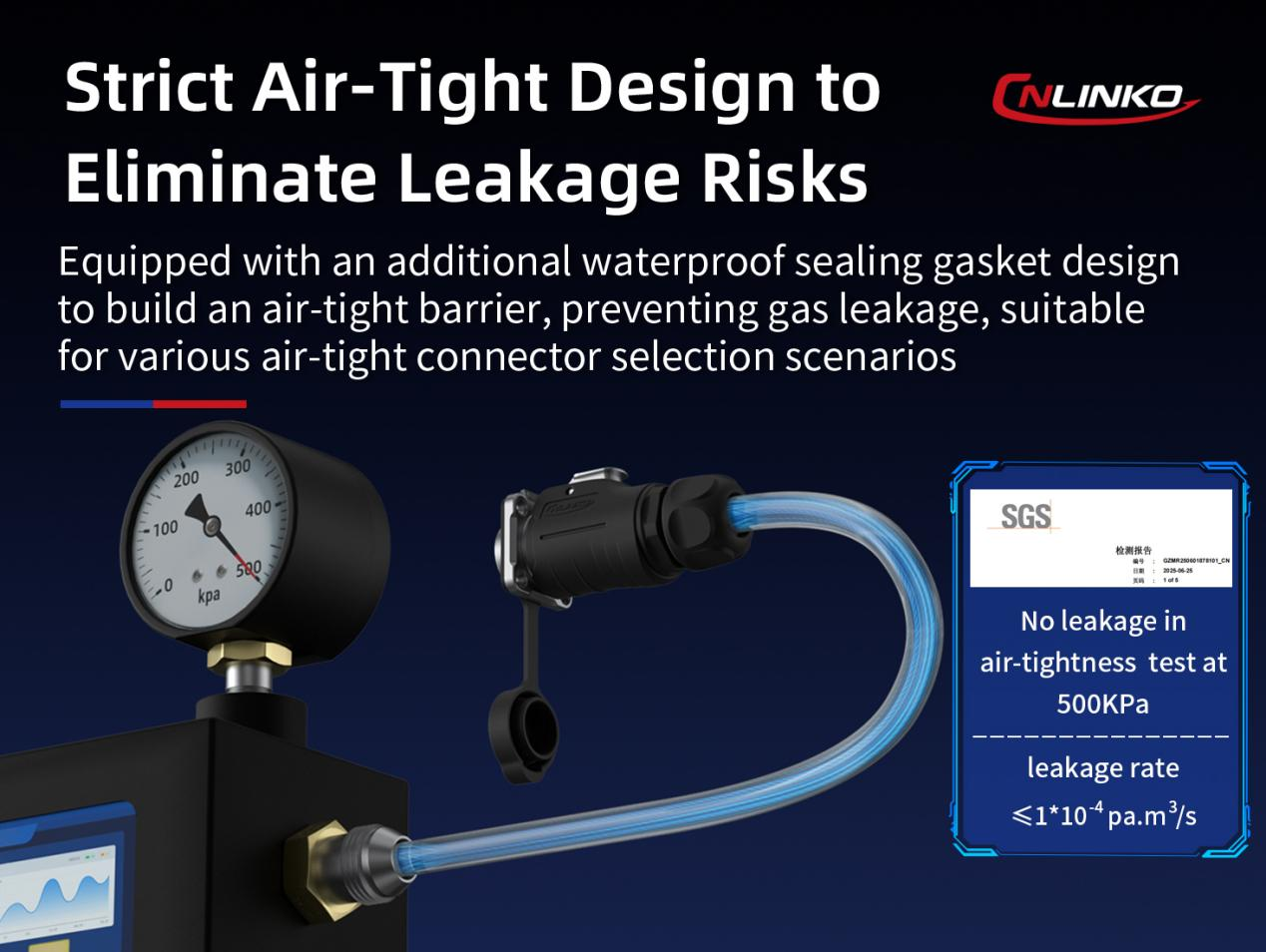

03. Robust Hermetic Barrier Blocks Gaseous Permeation
Standard waterproof connectors cannot prevent water vapor permeation, which can lead to condensation. Condensation, carrying contaminants, not only risks short circuits on internal contacts but also accelerates contact corrosion. Therefore, hermetic connectors are recommended for outdoor energy storage equipment.
This CNLINKO LP20 Hermetic Connector offers excellent hermetic capability. Tested leak-free at 500KPa, it effectively blocks the permeation path of gaseous water vapor and other substances, ensuring the safety of internal components.

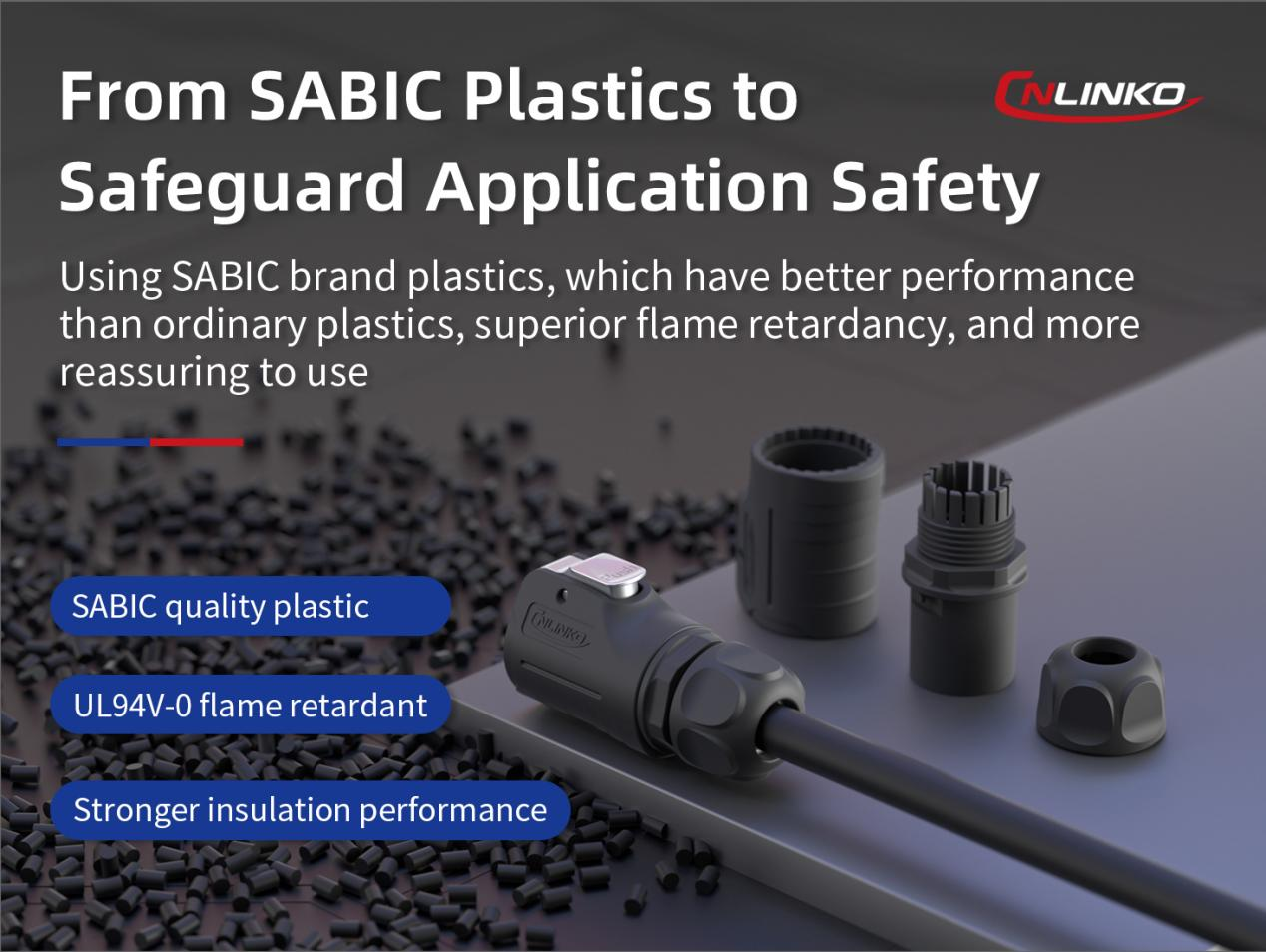

04. UL94 V-0 Flame Retardancy Rating for Enhanced Safety
Outdoor energy storage equipment deployed long-term outdoors faces greater challenges in fire safety, making inherent flame retardancy particularly valuable. Supporting connectors must also possess high flame-retardant properties.
The main housing of this CNLINKO hermetic connector utilizes superior-performance SABIC brand engineering plastic and achieves a UL94 V-0 flame retardancy rating. In the event of an abnormality, it can form an effective fire barrier, inhibiting spark propagation and enhancing safety performance.

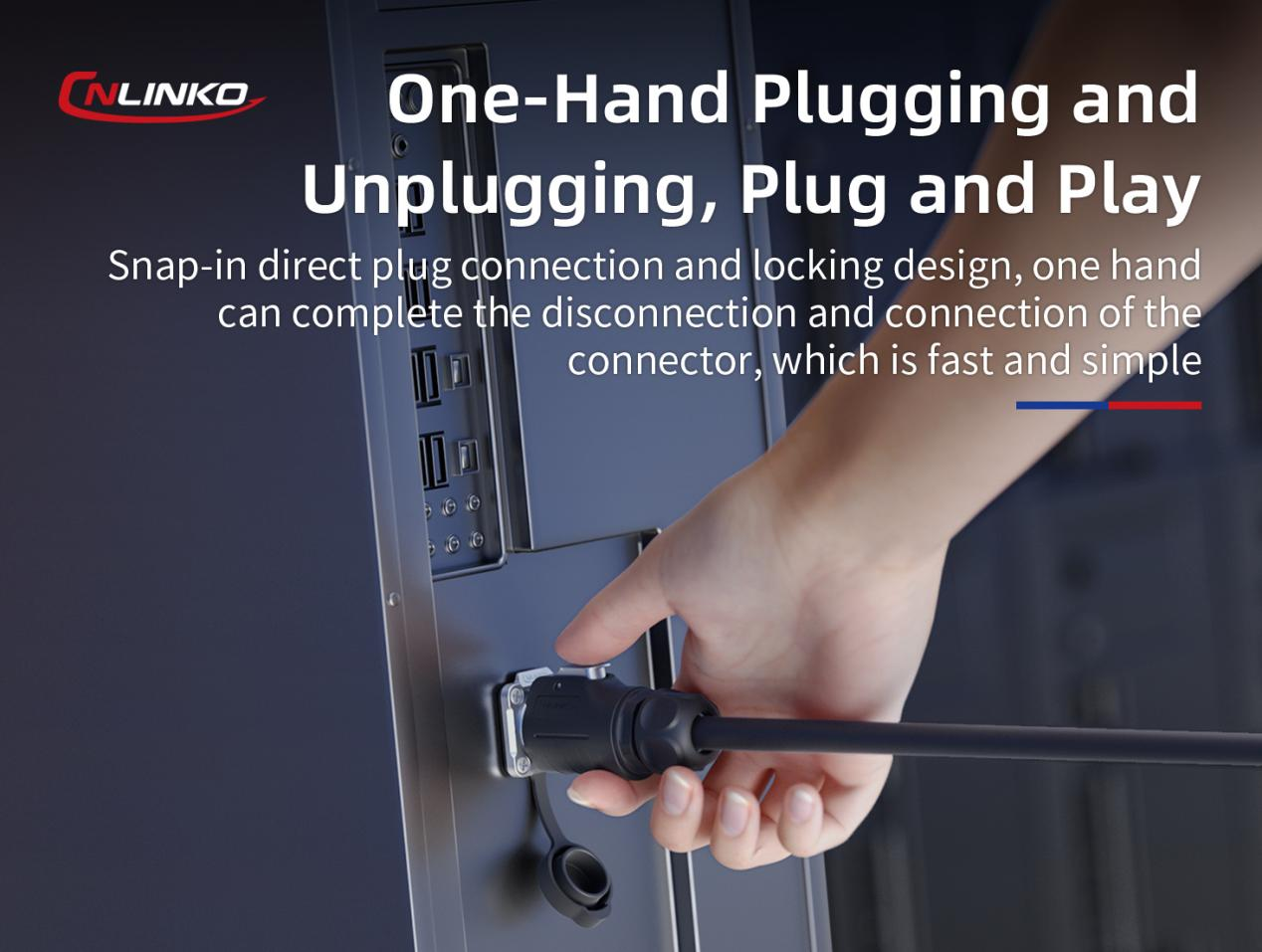

05. Plug-and-Play, Faster Disconnection
For outdoor energy storage equipment, a simple and efficient connector disconnection mechanism not only boosts wiring efficiency during initial setup but also allows for quick connector disconnection during subsequent equipment maintenance.
This CNLINKO hermetic connector employs a snap-fit direct plug-in connection method that allows for one-handed mating and unmating, ensuring:
Installation Phase: Snap-fit direct plug-in connection increases wiring efficiency by over 50%.
Maintenance Phase: Easy one-handed operation enables quick disconnection, improving equipment maintenance efficiency.
The successful application of the CNLINKO LP20 Hermetic Connector in the field of outdoor energy storage once again validates its undeniable functionality and convenience, offering a new, highly reliable electrical connection solution ready for implementation in the energy storage sector.
